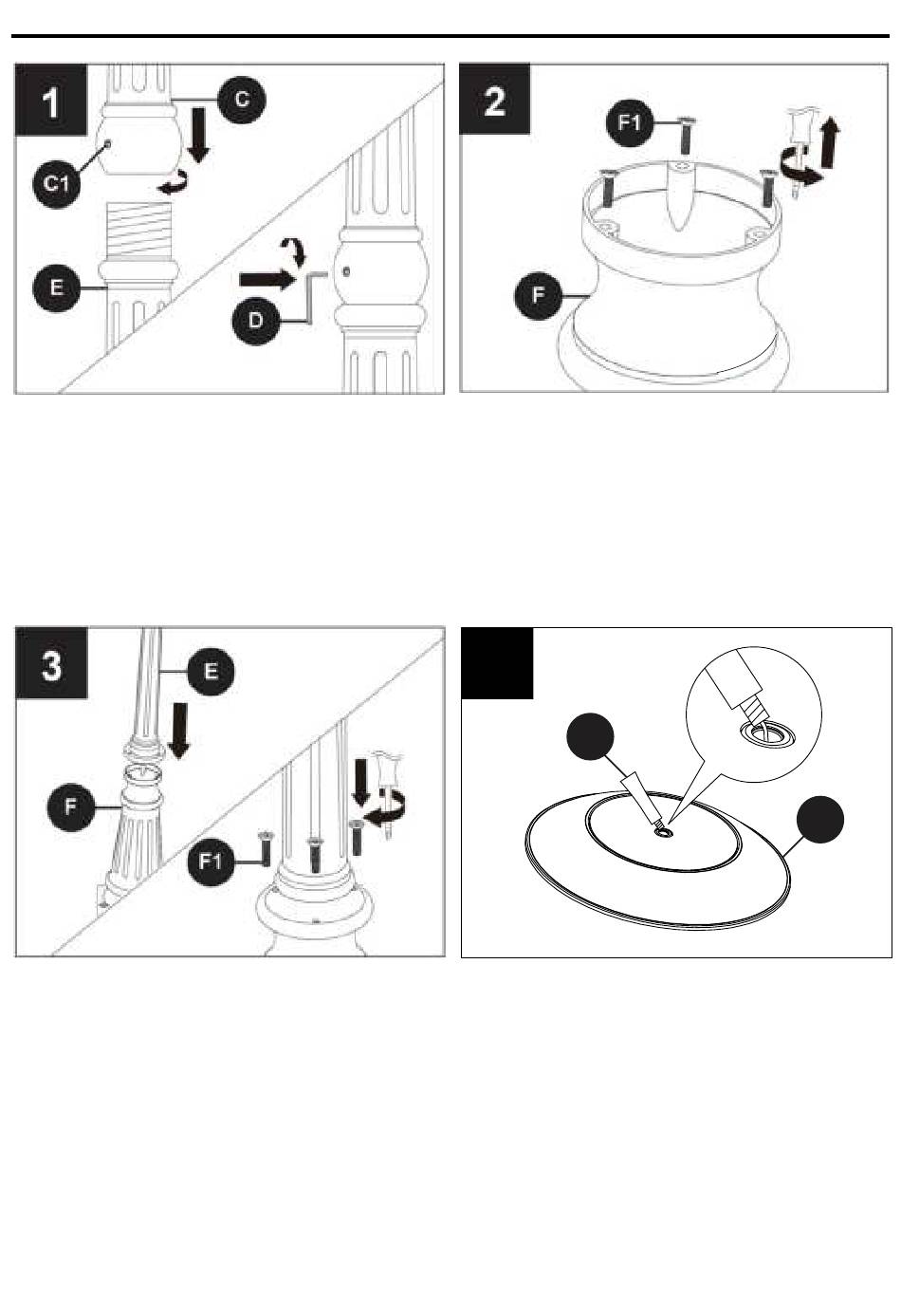

ASSEMBLY INSTRUCTIONS
Remove the preassembled Set Screw (C1) from Top Pole (C) and screw Top Pole (C) clockwise
onto Middle Pole (E). Re-insert Set Screw (C1), then tighten with Allen Wrench (D). Remove the
preassembled 3 Base Screws (F1) from Base (F) with a Phillips screwdriver (not included).
Save for later use.
4
R
A
Secure Middle Pole (E) to Base (F) with Base Screws (F1) that were removed in the previous step.
Tighten with a Phillips screwdriver. Spread the Glue (R) into the hole in the middle of the
Lampshade (A).
6
