5580500COM

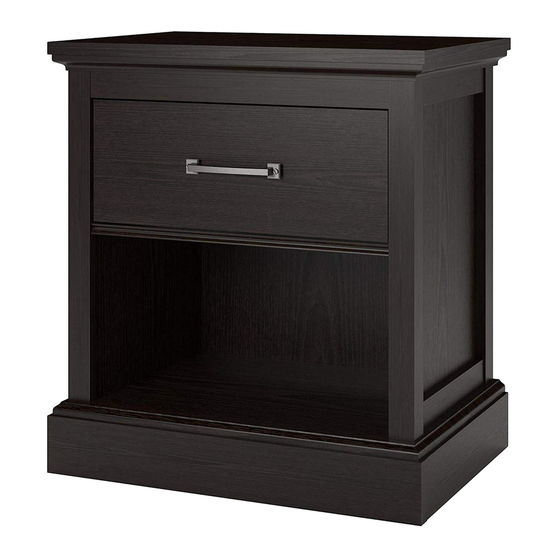

Nightstand
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
You
Tube
B345580500COM0
Tough
Publicidad
Manuales relacionados para Ameriwood HOME 5580500COM
Resumen de contenidos para Ameriwood HOME 5580500COM
- Página 1 Visit: www.ameriwoodhome.com Easy Tough Assembly Difficulty Meter WARNING Follow Ameriwood Home - Unit can tip over causing severe injury or death. - Anchor unit to stud in wall (if instructed to). - Do Not allow children to climb on unit. Tube...
- Página 2 Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com to view the limited warranty valid in the U.S. and Canada. Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 1 HOUR...
- Página 3 Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight.
- Página 4 Board Identification Not actual size Left Panel Bottom Right Panel 35580340010 35580340040 35580340030 35580340020 Support Front Base Right Side Base Left Side Base Rear Base 35580340050 35580340060 35580340080 35580340070 35580340090 Front Vertical Rear Vertical Drawer Brace Drawer Front Drawer Bottom Molding (2) 35538000121 Molding (2)
- Página 5 Board Identification Not actual size Back 35580340200 ameriwoodhome.com Tube...
- Página 6 Board Identification Not actual size SIDE BACK SIDE ameriwoodhome.com Tube...
- Página 7 Part List Actual Size (x17) (x4) (x4) (x10) (x17) (x24) #A22620 #A22610 #A22920 #A22910 #A11080 #A12120 connector bolt cam lock cam bolt connector #6 x 7/16" screw #8x7/16" screw (x2) (x4) (x8) (x20) (x7) #A53600 #A17250 #A21660 #A12950 #A13020 angle bracket bolt wood dowel #8x1-1/8"...
- Página 8 Part List Not actual size (x1) (x2) #A50875 #A54510 handle drawer bracket Left Cabinet Member Right Cabinet Member Left Drawer Member Right Drawer Member (x1) #A56750 drawer slide ameriwoodhome.com Tube...
- Página 9 STEP 1 Using screw (9), attach the front vertical molding (J) and rear vertical molding (K) to the left panel (A). Please be sure to screw into the surface of the front vertical with the pilot holes. Do not fully tighten the screws until next step is completed. (x6) #A12950 Pilot hole in front...
- Página 10 STEP 2 Using screw (9), attach the side rails (O) to the left panel (A). Now tighten the screws that were left loose in the previous step. (x4) #A12950 ameriwoodhome.com Tube...
- Página 11 STEP 3 marked with a "L" (x1) #A56750 (x2) (x1) #A22620 #A22610 #A11080 Quick Assembly Proper orientation of CAM LOCK ameriwoodhome.com Tube...
- Página 12 STEP 4 Using screw (9), attach the front vertical molding (J) and rear vertical molding (K) to the right panel (B). Please be sure to screw into the surface of the front vertical with the pilot holes. Do not fully tighten the screws until next step is completed. Pilot hole in front (x6) vertical molding.
- Página 13 STEP 5 Using screw (9), attach the side rails (O) to the right panel (B). Now tighten the screws that were left loose in the previous step. (x4) #A12950 ameriwoodhome.com Tube...
- Página 14 STEP 6 marked with a "R" (x1) #A56750 (x2) (x1) #A22620 #A22610 #A11080 Quick Assembly Proper orientation of CAM LOCK ameriwoodhome.com Tube...
- Página 15 STEP 7 (x2) (x2) #A22620 #A21660 Quick Assembly Proper orientation of CAM LOCK ameriwoodhome.com Tube...
- Página 16 STEP 8 (x2) #A23030 ameriwoodhome.com Tube...
- Página 17 STEP 9 ameriwoodhome.com Tube...
- Página 18 STEP 10 Place the right panel assembly as shown and tighten the cam lock (1). Attach the right panel (B) to the bottom (D) using 2 screws (12). (x2) #A23030 ameriwoodhome.com Tube...
- Página 19 STEP 11 Insert four long wood dowels (13) into the larger holes in the top (C). Press the upper side moldings (Q) and (R) onto the wood dowels (13) and press until seated onto the top (C). Fasten to the top (C) with screws (10) as shown.
- Página 20 STEP 12 (x6) (x4) (x2) #A22610 #A12120 #A53600 ameriwoodhome.com Tube...
- Página 21 STEP 13 Quick Assembly (x2) (x2) #A22620 #A21660 Proper orientation of CAM LOCK ameriwoodhome.com Tube...
- Página 22 STEP 14 (x2) #A23030 ameriwoodhome.com Tube...
- Página 23 STEP 15 ameriwoodhome.com Tube...
- Página 24 STEP 16 (x4) (x4) (x4) #A22620 #A22610 #A22920 Quick Assembly Proper orientation of CAM LOCK Position the connector as shown before inserting. You will need to use a hammer to fully insert. ameriwoodhome.com Tube...
- Página 25 STEP 17 (x6) (x6) (x4) (x4) #A22620 #A22610 #A12120 #A53600 Quick Assembly Proper orientation of CAM LOCK ameriwoodhome.com Tube...
- Página 26 STEP 18 (x4) #A22910 Carefully flip the unit over and set it on it's top. ameriwoodhome.com Tube...
- Página 27 STEP 19 Press the right side base (H) onto the bottom (D) so the connectors (3) engage the connector bolts (4). Turn the screw in the connector clockwise to lock in place. Turn screw clockwise to lock in place. ameriwoodhome.com Tube...
- Página 28 STEP 20 (x3) #A12120 Attach the rear base (I) to the right base (H) as shown. Then attach the rear base (I) to the bottom (D) using screws (6). ameriwoodhome.com Tube...
- Página 29 STEP 21 Press the left side base (G) onto the rear base as shown making sure the connectors (3) in the left side base engage the connector bolt (4) in the bottom (D). Securely fasten the cam lock (1) and connectors (3). Turn screw clockwise to lock in place.
- Página 30 STEP 22 (x3) #A12120 Secure the front base (F) to the left side base (G) and right side base (H) as shown, then secure to the bottom (D) with three screws (6). ameriwoodhome.com Tube...
- Página 31 STEP 23 (x2) (x1) (x4) #A54510 #A22610 #A12120 ameriwoodhome.com Tube...
- Página 32 STEP 24 Quick Assembly (x4) (x1) (x1) #A12120 #A22620 #A21520 Proper orientation of CAM LOCK SIDE SIDE ameriwoodhome.com Tube...
- Página 33 STEP 25 unfinished surface SIDE SIDE ameriwoodhome.com Tube...
- Página 34 STEP 26 (x6) #A21970 BACK SIDE SIDE ameriwoodhome.com Tube...
- Página 35 STEP 27 marked with "L" marked with "R" (x4) (x2) (x1) #A11080 #A17250 #A56750 (x1) #A50875 BACK SIDE SIDE Attach handle after installing the drawer slides. ameriwoodhome.com Tube...
- Página 36 STEP 28 roller cabinet member drawer runner roller Note: The drawer bracket holes are slotted. Drawer front can be adjusted by loosening screws, making needed adjustments and retightening screws. ameriwoodhome.com Tube...
- Página 37 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 40 lbs 15 lbs 18.2 kg 6.8 kg 40 lbs 18.2 kg Warning: Risk of injury to persons - do not place a television on this furniture. This furniture is not approved for use with a television.
- Página 38 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback. ameriwoodhome.com Tube...
- Página 39 Español Cubierta Delantera Este libro de instrucciones contiene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-800-489-3351 (Gratis) Lunes - Viernes 9am - 5pm CST Visitar: www.ameriwoodhome.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte.
- Página 40 Español Página 9 Fije la moldura vertical delantera (J) y la moldura vertical trasera (K) al panel izquierdo (A) con el tornillo (9). Asegúrese de atornillar en la superficie de la moldura vertical delantera con los agujeros guía. Página 10 Fije los rieles laterales (O) al panel izquierdo (A) con el tornillo (9).
- Página 41 Visite el sitio web de su tienda local, califique su comprado y denos sus comentarios! Nos gustaría enviar un gran "Agradecimiento" a todos nuestros clientes por tomarse el tiempo de ensamblar este producto de Ameriwood Home, y por darnos sus valiosos comentarios. Gracias ameriwoodhome.com...
- Página 42 Français Couverture Avant CE LIVRET D'INSTRUCTION CONTIENT DES INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ. VEUILLEZ LIRE ET GARDER POUR UNE RÉFÉRENCE FUTURE Ne retournez pas ce produit! Contactez notre équipe de service à la clientèle amicale d'abord pour obtenir de l'aide. Appelez-nous: 1-800-489-3351 (sans frais) du Lundi au Vendredi de 9h à...
- Página 43 Français Page 9 En utilisant une vis (9), joignez la moulure verticale avant (J) et la moulure verticale arrière (K) au panneau de gauche (A). Assurez vous de visser à l'intérieur de la surface de l'élément vertical avant en utilisant les trous de guidage.
- Página 44 Visitez le site Web de votre détaillant local, évaluez votre produit acheté et laissez-nous quelques commentaires ! Nous tenons à offrir un grand "Merci" à tous nos clients pour avoir pris le temps d'assembler ce produit "Ameriwood Home", et de nous donner vos commentaires précieux. Merci ameriwoodhome.com...
