Stanley SAT3S Manual De Instruccion

x

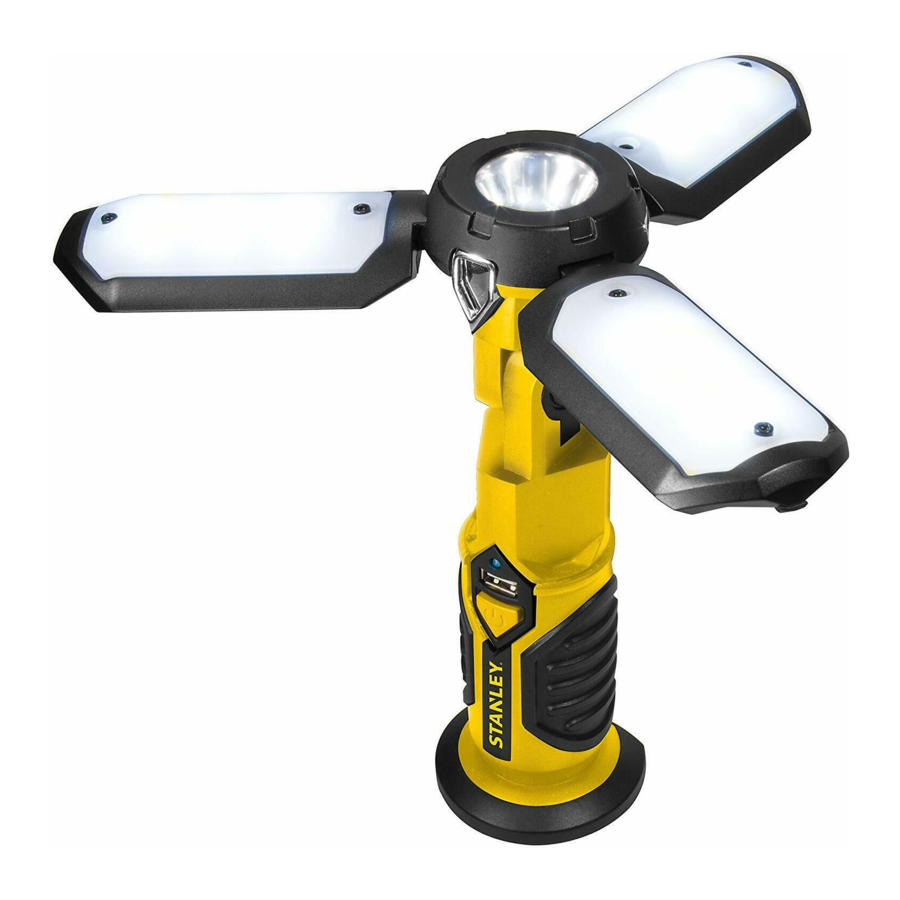

LITHIUM LED WORK LIGHT
INSTRUCTION MANUAL
2
1
3
4
5
9
11
10
12
1. Main LED Light 8. Pivoting head
2. Folding Light Panels (3) 9. USB Charging Cable (for use with 120V
3. Battery/Charge Status LED Indicator / AC/USB and 12V DC/USB Charging
Translucent USB Power Button Adapters)
4. USB Port (for use with USB Charging 10. 12V DC/USB Charging Adapter
Cable and Charging Adapters) (optional accessory)
5. Power/Light Mode Button 11. 12V DC/USB Charging Adapter LED
6. Folding Hanging Hook Indicator
7. Magnetic Base
SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.
Copyright © 2021
Baccus Global LLC, Boca Raton, FL 33487
1-877-571-2391
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not approved by the party responsible for compliance could void user's authority to operate the equipment.
SAFETY GUIDELINES / DEFINITIONS
DANGER:
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING:
Indicates a potentially hazardous situation which, if not avoided, may result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
Used without the word, indicates a safety related message.
NOTICE:
Indicates a practice not related to personal injury which, if not avoided, may result in property damage.
RISK OF UNSAFE OPERATION.
When using tools or equipment, basic safety precautions should always be followed to reduce
the risk of personal injury. Improper operation, maintenance or modification of tools or equipment could result in serious injury and
property damage. There are certain applications for which tools and equipment are designed. Manufacturer strongly recommends
that this product NOT be modified and/or used for any application other than for which it was designed. Read and understand all
warnings and operating instructions before using any tool or equipment.
READ ALL INSTRUCTIONS
WARNING:
Read and understand this instruction manual before using this unit.
IMPORTANT SAFETY INSTRUCTIONS
GENERAL SAFETY WARNINGS AND INSTRUCTIONS
WARNING –
FAILURE TO FOLLOW THE FOLLOWING WARNINGS AND INSTRUCTIONS MAY RESULT IN ELECTRIC
SHOCK, FIRE AND/OR SERIOUS INJURY:
• The light, the USB Charging Cable and the Charging Adapters are not toys and cannot be played with as toys. To reduce the risk of
injury, close supervision is necessary when these units are used near children.
• Use only attachments recommended or sold by the manufacturer.
WARNING –
TO REDUCE THE RISK OF ELECTRIC SHOCK:
• Do not put the light in water or other liquid. Do not place or store this light where it can fall or be pulled into water or become wet.
• Charge indoors only.
• Do not expose the USB Charging Cable, Charging Adapters or Battery to moisture, water or any other liquid.
• Use only the USB Charging Cable and/or Charging Adapter supplied by the manufacturer to recharge.
• When an extension cord is used:
– The marked rating of the detachable power supply cord or extension cord should be at least as great as the electrical rating
of this appliance.
– The cord should be arranged so that it will not drape over the countertop or tabletop where it can be tripped over, snagged,
or pulled on unintentionally (especially by children).
– The extension cord should be kept dry and off the ground.
WARNING –
FIRE HAZARD: Keep light lamp away from materials that may burn.
CAUTION –
TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:
• The LED gets hot quickly. Do not touch the hot lens, guard or enclosure.
• Never place the light face down on any surface when lit, charging or not in use. Never store the light face down on any surface.
• Never look directly into the light or shine the light into another person's eyes. Serious eye injury could occur.
• Keep sharp objects away from lens – it can crack or break.
• Do not expose this unit to extremely high temperatures.
• Do not drop or throw light. It contains a lithium battery.
• Use only with either the AC/USB or DC/USB Charging Adapter and/or the USB Charging Cable provided with the unit. Plug in the
charging cable at the light first, then plug into the charging source.
• Do not overcharge: Recharge until the Charge Status LED Indicator lights blue.
• After charging/recharging, disconnect the charging adapter and wait 5 minutes before use.
• Do not crush, cut, pull or expose the charging cable to extreme heat.
• Position the charging cable so it does not become entangled or become a safety hazard. Keep the charging cable away from sharp
edges.
• Do not open the light body casing. Except for the fuse in the 12V DC/USB Charging Adapter, there are no user-serviceable parts inside.
• Do not operate the light without the lens in place.
• To reduce risk of damage to the charging cable, pull by the plug rather than the cord when disconnecting.
• Do not attempt to charge the unit if the USB Charging Cable or either Charging Adapter are damaged – return the charging cable
or adapter to the manufacturer for repair or replacement.
SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM BATTERIES
WARNING –
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, BURST HAZARD, OR INJURY TO PERSONS OR
PROPERTY:
Lithium batteries are small, compact and ideal for providing long-lasting power to this unit. However, they must be used and charged
properly. Improper use can result in serious injury, fire, or death.
• Lithium batteries can explode in the presence of a source of ignition. Do not use the product in the presence of an open flame.
• Do not place this lithium battery powered unit in fire or apply heat to it.
• Do not subject this lithium battery powered unit to strong impacts or shocks. The battery in this unit contains safety and protection
devices which, if damaged, may cause the battery to generate heat, rupture or ignite.
• Do not expose this lithium battery powered unit to water or salt water, or allow the battery to get wet.
• Avoid storing this lithium battery powered unit in the basement, bathroom or other areas of the house that are or may become
wet or humid or where moisture may concentrate.
• Do not leave this lithium battery powered unit in direct sunlight, or use or store the unit inside cars in hot weather. Doing so may
cause the battery to generate heat, rupture, or ignite. Using the battery in this manner may also result in a loss of performance and
a shortened life expectancy.
• Never charge this unit near heat or flammable objects.
NEVER THROW WATER ON A BURNING LITHIUM BATTERY!
• If a lithium battery does catch on fire, it will
burn even more violently if it comes in contact with water or even moisture in the air. A fire extinguisher must be
used.
Battery Charging and Capacity
This unit is delivered in a partially charged state – you must fully charge it before using it for the first time.
When stored at room temperature with a full charge, lithium batteries will begin to discharge from the time they are manufactured,
even when unused. Deep discharges also decrease their capacity. Battery life can be extended by the following:
• Charge battery to full capacity before storage.
• Optimal storage temperature for this unit is between 5°C and 20°C (41°F and 68°F).
• Never discharge the battery fully.
• Charge after each use.
• Always charge at least once every 3-6 months if not in frequent use to prevent overdischarge.
Transportation of Lithium Batteries
• Always check all applicable local, national, and international regulations before transporting a unit containing a lithium battery.
• Transporting an end-of-life, damaged, or recalled battery may, in certain cases, be specifically limited or prohibited.
SAT3S_ManualENSP_080321.indd 2 SAT3S_ManualENSP_080321.indd 2
SAT3S INSTRUCTIONS PERTAINING TO THE 12V DC/USB CHARGING ADAPTER
NOTICE:
• NEVER CONNECT THE UNIT TO A POSITIVE GROUNDED VEHICLE.
• The 12V DC Charging Adapter must only be connected to batteries with a nominal output voltage of 12 volts. The unit will not
operate from a 6 volt battery and will sustain permanent damage if connected to a 24 volt battery.
• Always connect the 12V DC Charging Adapter to the 12 volt DC power source before plugging any devices into it.
INSTRUCTIONS PERTAINING TO THE USB PORTS
• IMPORTANT: Some household USB-powered electronics will not operate with the USB ports provided with this device. Check the
manual of the corresponding electronic device to confirm that it can be used with this type of USB port.
• The USB ports do not support data communication. They only provide power to an external USB powered device (5V DC/1A
6
using the USB Port on the light or AC/USB Charging Adapter or 5V DC/2.1A using the USB Port on the DC/USB Charging Adapter).
Make sure the rating of equipment plugged into the USB Port does not exceed the amperage stated.
7
• Always connect the appropriate charging adapter to either the 120 volt AC or 12 volt DC power source before plugging any devices
into it.
• Do not attach USB hubs allowing connection of multiple personal electronic devices to any of the USB ports on the charging adapters.
SAVE THESE INSTRUCTIONS
INTRODUCTION
8
Congratulations on purchasing your new Stanley
carefully before using your new light.
READING THE BATTERY/CHARGE STATUS LED INDICATOR
The battery/charge status LED indicator is located inside the translucent USB Power Button. It lights or flashes in two colors to
indicate the following:
When charging:
Blue:
Battery is in a fully charged state.
Blue (flashing):
Battery is in a partially charged state.
Red (flashing):
Battery needs to be recharged.
Red (flashing rapidly):
The battery of the unit is overheated due to extensive use or recharging. The charging process will
13 14
stop at this stage and will automatically resume after a cool down period.
When operating the USB Port
12. 12V DC/USB Charging Adapter USB
Blue:
Battery is operating at full voltage.
Port (optional accessory)
13. 120V AC/USB Charging Adapter
Red:
Battery is operating at partial voltage.
(optional accessory)
Red (flashing rapidly):
14. 120V AC/USB Charging Adapter USB
• Battery is operating at extremely low voltage. The built-in low voltage protection has activated and the unit will automatically shut
Port (optional accessory)
down. The unit must be recharged immediately. OR
• The battery of the unit is overheated (due to extensive use or recharging), or is too cold (the ambient temperature has dropped
below –20°C). Operation will stop at this stage.
CHARGING/RECHARGING THE LIGHT
BC
This unit is shipped in a partially charged state. Charge unit after purchase and BEFORE first use until the battery/charge status LED
indicator lights blue.
Recharge after each use until the battery/charge status LED indicator lights blue.
IMPORTANT: When the unit is not in use, we recommend that the battery is charged at least every 3 to 6 months.
CAUTION –
TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:
• Make sure the light is turned OFF during recharging, as operating the light can slow the recharging process.
• Failure to keep the battery charged will cause permanent damage and result in poor performance.
Charging/Recharging Using the 12V DC/USB Charging Adapter
1. Make sure the power/light mode button and the translucent USB power button are both turned off* (the light is not lit and the
translucent USB power indicator/power button is not lit).
*The translucent button does not operate the light, only the USB power port.
2. Insert the USB charging cable into the USB port on the light.
3. Insert the other end of the USB charging cable into the 12 volt DC/USB charging adapter.
4. Insert the 12 volt DC/USB charging adapter into the 12 volt DC accessory outlet of a vehicle or other functioning 12 volt DC
power source. The LED indicator on the 12 volt DC/USB charging adapter will light green when it is properly plugged into the
12 volt DC power source. The battery/charge status LED indicator will light or flash in one of two colors (as described in the
"Reading the Battery/Charge Status LED Indicator" section) to indicate the charging status.
Note:
Some vehicles require that the ignition be switched to the accessory position in order to power the accessory outlet.
5. Charge until the battery/charge status LED indicator lights blue.
6. When charging is complete, first unplug the 12 volt DC/USB charging adapter from the 12 volt DC power source, then
disconnect the USB charging cable from the adapter and the light. Store the adapter and cable in a safe place.
Charging/Recharging Using the 120V AC/USB Charging Adapter
1. Make sure the power/light mode button and the translucent USB power button are both turned off* (the light is not lit and the
translucent USB power indicator/ power button is not lit).
*The translucent button does not operate the light, only the USB power port.
2. Insert the USB charging cable into the USB port on the light.
3. Insert the other end of the USB charging cable into the 120 volt AC/USB charging adapter.
4. Insert the 120 volt AC/USB charging adapter into a functioning 120 volt AC power source. The battery/charge status LED
indicator will light or flash in one of two colors (as described in the "Reading the Battery/Charge Status LED Indicator" section)
to indicate the charging status.
5. Charge until the battery/charge status LED indicator lights blue.
6. When charging is complete, first unplug the 120 volt AC/USB charging adapter from the 120 volt AC power source, then
disconnect the USB charging cable from the adapter and the light. Store the adapter and cable in a safe place.
Charging/recharging using the USB Charging Cable and a device with a USB
power port (not supplied)
1. Make sure the power/light mode button and the translucent USB power button are both turned off* (the light is not lit and the
translucent USB power indicator/ power button is not lit).
*The translucent button does not operate the light, only the USB power port.
2. Insert the USB charging cable into the USB port on the light.
3. Insert the other end of the USB charging cable into a device's functional USB power port. The battery/charge status LED
indicator will light or flash in one of two colors (as described in the "Reading the Battery/Charge Status LED Indicator" section)
to indicate the charging status.
4. Charge until the battery/charge status LED indicator lights blue.
5. When charging is complete, Disconnect the USB charging cable from the device's USB power port and the light. Store the cable
in a safe place.
OPERATING THE LIGHT
The power/light mode button turns the light on and off; and is also used to select the light mode.
NOTICE:
DO NOT OPERATE WHILE CHARGING.
Notes:
The battery/charge status LED indicator will not light during operation of the light.
To check the battery status, make sure the light is turned off, then press on the translucent USB power button. The battery/charge status LED
indicator will light or flash in one of two colors (as described in the "Reading the Battery/Charge Status LED Indicator" section) to indicate the
internal battery status.
Disconnect the charging cable or adapter, then select the light mode as follows:
High:
To turn the light on and use the main LED light only at high setting, press the power/light mode button once.
Low:
To turn the light on and use the main LED light only at low setting, press the power/light mode button a second time.
Area:
To use the 3 light panels only, press the power/light mode button a third time.
All:
To use all LEDs, press the power/light mode button a fourth time.
Off:
To turn the light off, press the power/light mode button a fifth time.
Flash:
To use all the LEDs flashing, press and hold the power/light mode button anytime for about 5 seconds.
off in flash mode
To turn the light
IMPORTANT – To protect the unit's internal battery from damage and save energy:
• If the translucent USB power button is pressed to turn on the USB Port when the unit is operating in any light mode, the unit will
switch automatically to Low Light Mode.
• If the light's battery voltage is nearly low, the unit will switch automatically to Low Light Mode even if another Light Mode has
been selected.
• If the light's battery voltage is low, the built-in low voltage protection will activate after a short period of operation, then the unit
will automatically shut down. Recharge the battery before continuing use.
Unfolding and Folding the Light Panels
The three LED Light Panels can be unfolded or folded entirely or individually. Unfold the light panels gently outward (to 90 degrees
maximum). To return the light panels to their original position for storage, fold the light panels gently back until they touch the
center of the unit.
CAUTION –
TO REDUCE THE RISK OF PRODUCT DAMAGE:
• Do not attempt to "force" the the light panel to unfold beyond its maximum angle.
• The light panel was designed to unfold or fold outward and inward only.
• The unfolded light panel is not intended to support additional weight. Do not shake the light and attach or hang anything
additional to the light panel or risk of breakage may occur.
Adjusting the Pivoting Head
With the three LED Light Panels unfolded, the pivoting head allows the light to be tilted forward up to 90° to direct the illumination
as desired.
CAUTION –
TO REDUCE THE RISK OF PRODUCT DAMAGE:
• Do not attempt to "force" the pivoting head beyond its maximum angle.
• The pivoting head was designed to tilt forward only. Tilting it backward may damage the unit.
• The pivoting head was designed to be used when the unit is hand-held or is hanging or attached to a surface using its hanging
hook or magnetic base. Using it when the unit is placed on a uneven, inclined or non-metallic surface may cause the light to fall
over and sustain damage.
Using the Folding Hanging Hook and Magnetic Base
The folding hanging hook and magnetic base allow you to position the light for convenient, hands-free operation. To use the
Hanging Hook, unfold it to its 90-degree open position. To use the Magnetic Base, fold the Hanging Hook to its storage position.
CAUTION –
TO REDUCE THE RISK OF PRODUCT DAMAGE:
• When light is hung by the Hanging Hook or attached using the Magnetic Base, do not shake the light or object that it is hanging
from or attached to. Do not hang the light from or attach the light to any electrical wires or anything that it is not secure.
• Only use the Hanging Hook for hanging the light. The hanging hook is not intended to support additional weight. Do not attach
or hang anything additional to the light or risk of breakage may occur.
OPERATING THE LIGHT'S USB PORT
The light's USB port provides 5 volts/1A of DC power to an external USB powered device.
1. Disconnect the USB charging cable and make sure the light is turned off.
2. Press the translucent USB power button to power on the USB port. The battery/charge status LED indicator will light or flash
in one of two colors (as described in the "Reading the Battery/Charge Status LED Indicator" section) to indicate the internal
battery status.
3. Simply plug the USB device into the light's USB port and operate normally.
4. Press the translucent USB power button again to turn off the USB port. Make sure the translucent USB power button is in the
off position (is not lit) when the unit is being recharged or stored.
IMPORTANT: If the USB port is in use, the light will only operate in Low or Flash light mode.
® Work Light. Read this Instruction Manual and follow the instructions
(once the translucent USB Power Button has been pressed):
, press the power/light mode button once.
OPERATING THE 120 VOLT AC/USB CHARGING ADAPTER'S USB PORT
Plug the 120 volt AC/USB charging adapter into a (powered) standard North American 120 volt 60Hz outlet. Then simply plug the
USB device into the USB outlet and operate normally.
Always plug the 120 volt AC/USB charging adapter to the standard North American 120 volt 60Hz outlet before plugging any
devices into it.
OPERATING THE 12 VOLT DC/USB CHARGING ADAPTER'S USB PORT
Plug the 12 volt DC/USB charging adapter into a vehicle's 12 volt DC accessory outlet or other functioning 12 volt DC power source.
The LED indicator on the 12 volt DC/USB charging adapter will light green to indicate that it is properly connected. Then simply plug
the USB device into the USB outlet and operate normally.
Note:
Some vehicles require that the ignition be switched to the accessory outlet position in order to power the accessory outlet
CARE AND MAINTENANCE
All batteries lose energy from self-discharge over time and more rapidly at higher temperatures. When the unit is not in use, we
recommend that the battery is charged at least every 3 to 6 months.
From time to time wipe the outside of the device with a soft cloth. Do not immerse the device in water.
Except for the fuse in the 12V DC/USB Charging Adapter, there are no user-replaceable parts. Periodically inspect the condition of
adapters, connectors and wires. Contact manufacturer to replace any components that have become worn or broken.
Battery
Please be advised that the battery is designed to last the service life of the unit and is not replaceable, removable or
serviceable. Service life is dependent on a number of factors including but not limited to the number of recharge cycles, and proper
care and maintenance of the battery by the end user. Contact manufacturer for any information you may need.
SAFE BATTERY DISPOSAL
Contains a lithium-ion battery, which must be disposed of properly. Recycling is required. Failure to comply
with local, state and federal regulations can result in fines, or imprisonment.
Please recycle.
WARNINGS:
• Do not dispose of the battery in fire as this may result in an explosion.
• Before disposing of the battery, protect exposed terminals with heavy-duty electrical tape to prevent shorting (shorting can result
in injury or fire).
• Do not expose battery to fire or intense heat as it may explode.
Replacing the Fuse in the 12V DC/USB Charging Adapter
CENTER CONTACT 1. Unscrew the end cap
counterclockwise and remove.
2A FUSE
2. Remove center contact and fuse.
3. Check fuse with a continuity
END
checker.
CAP
4. If blown, locate a replacement
2 amp fuse.
5. Replace the fuse, center contact
and end cap.
TROUBLESHOOTING
The light will not charge
• Check that the light and the USB port are all turned off.
• Check that the USB charging cable is properly connected to either the 12V DC/USB charging adapter or the 120V AC/USB charging
adapter, and to the light.
• Check the connection to the AC or DC power source. Make sure there is good contact.
• Confirm that there is functioning AC or DC current.
• Check the plug fuse in the 12V DC/USB charging adapter. Replace the fuse following the instructions in this manual, if necessary.
• The unit may have shut down to protect the battery from overheating after a long period of operation or charging. Unplug the
charging adapter from the power source and disconnect the USB charging cable from the light. Allow the light to cool down for a
period before resuming charging.
The light will not operate
• Make sure the power/light mode button has been pressed to turn the light on.
• Check that the translucent USB power button is turned off.
• The internal battery may be completely discharged. Charge the unit following the directions given in this manual.
• The unit may have shut down to protect the battery from overheating after a long period of operation or charging; or the ambient
temperature has dropped below –20°C. Allow the light to cool down or warm up for a period before resuming operation.
The light's USB port will not operate
• Make sure the power/light mode button is turned off.
• Make sure the translucent USB power button is pressed to turn the USB port on.
• Make sure the rating of equipment plugged into the light's USB port does not exceed 1A continuous.
• Some household USB-powered electronics will not operate with this USB port. Check the manual of the corresponding electronic
device to confirm that it can be used with this type of USB port.
• The internal battery may be completely discharged. Charge the unit following the directions given in this manual.
The 120V AC/USB charging adapter's USB port will not operate
• Make sure you have live AC power to the outlet the 120V AC/USB charging adapter is plugged into.
• Make sure the rating of equipment plugged into the charging adapter's USB port does not exceed 1A continuous.
• Some household USB-powered electronics will not operate with this USB port. Check the manual of the corresponding electronic
device to confirm that it can be used with this type of USB port.
The 12V DC/USB charging adapter's USB port will not operate / LED indicator on the 12V DC/USB
charging adapter does not come on
• Check the connection to the 12 volt DC power source. Make sure there is good contact.
• Confirm there is functioning DC current.
• Check the plug fuse in the 12V DC/USB charging adapter. Replace the fuse following the instructions in this manual, if necessary.
• Make sure the rating of equipment plugged into the charging adapter's USB port does not exceed 2.1A continuous.
• Some household USB-powered electronics will not operate with this USB port. Check the manual of the corresponding electronic
device to confirm that it can be used with this type of USB port.
ACCESSORIES
Recommended accessories for use with your tool are available from the manufacturer. If you need assistance regarding accessories,
please contact the manufacturer at 1-877-571-2391.
The use of any accessory not recommended for use with this appliance could be hazardous.
SERVICE INFORMATION
Whether you need technical advice, repair, or genuine factory replacement parts, contact the manufacturer at 1-877-571-2391.
ONE-YEAR LIMITED WARRANTY
The manufacturer warrants this product against defects in materials and workmanship for a period of ONE (1) YEAR from the date
of retail purchase by the original end-user purchaser ("Warranty Period").
If there is a defect and a valid claim is received within the Warranty Period, the defective product can be replaced or repaired in the
following ways: (1) Return the product to the manufacturer for repair or replacement at manufacturer's option. Proof of purchase
may be required by manufacturer. (2) Return the product to the retailer where product was purchased for an exchange (provided
that the store is a participating retailer). Returns to retailer should be made within the time period of the retailer's return policy
for exchanges only (usually 30 to 90 days after the sale). Proof of purchase may be required. Please check with the retailer for their
specific return policy regarding returns that are beyond the time set for exchanges.
This warranty does not apply to accessories, bulbs fuses and batteries, defects resulting from normal wear and tear, accidents,
damages sustained during shipping, alterations, unauthorized use or repair, neglect, misuse, abuse, and failure to follow instructions
for care and maintenance for the product.
This warranty gives you, the original retail purchaser, specific legal rights and you may have other rights which vary from state to
state or province to province. This product is not intended for commercial use.
Please visit our website www.baccusglobal.com/register to register your new Baccus Global LLC product and to be kept up to date on
new products and special offers.
SPECIFICATIONS
Light
Bulb: 1 main LED bulb and 18 ultra bright LEDs
Battery: Lithium, 3.6V DC
Input: 5V DC, 1A (120 Volt AC/USB Charging Adapter) or
2.1A (12 Volt DC/USB Charging Adapter)
USB Output: 5V DC, 1A
12V DC/USB Charging Adapter
(Conforms to UL STD. 2089) (optional accessory)
Input: 12V DC, 1.1A
Output: 5V DC, 2.1A
Fuse: 2A
120V AC/USB Charging Adapter
(Conforms to UL STD. 62368-1) (optional accessory)
Input: 120V AC, 60Hz, 6.7W
Output: 5V DC, 1A
STANLEY ® AND THE STANLEY ® LOGO ARE REGISTERED TRADEMARKS OF
STANLEY BLACK + DECKER INC..OR ONE OF ITS AFFILIATES, AND 621 NW 53rd St., Suite 450, Boca Raton, FL 33487
ARE USED UNDER LICENSE.
6. Screw end cap clockwise until it
is finger tight – DO NOT OVER-
TIGHTEN.
7. Test for proper operation of the
12 Volt DC/USB Charging Adapter.
Imported by Baccus Global LLC,
www.baccusglobal.com 1-877-571-2391
RD080321
8/3/2021 11:34:25 AM 8/3/2021 11:34:25 AM
