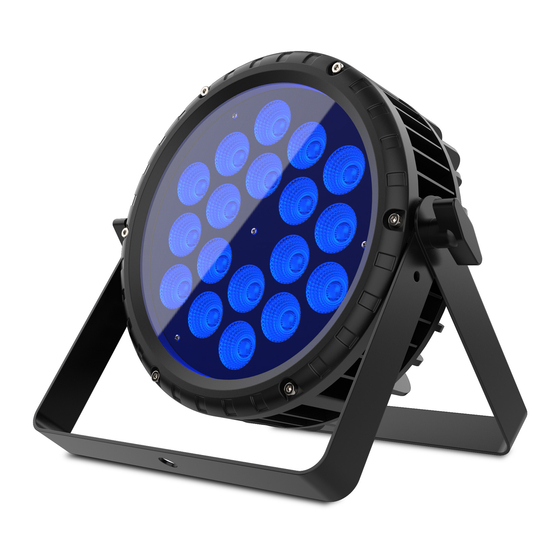

Audibax WATER 180 Guia Del Usuario

WATER 180 RGBW
DMX512Control: 8 Channel Mode (A001)
Canal Función
CH1 Dimmer
CH2 R Dimmer (Red)
CH3 G Dimmer (Green)
CH4 B Dimmer (Blue)
CH5 W Dimmer (White)
CH6 Strobe
CH7 Function choice
CH8 Function speed
MENU MODE FUNCTION
Nº Show Function
1 d001 DMX Address (001-512)
2 A001 DMX Address (001-512)
3 r255 Red (000)-(512)
4 G255 Green (000)-(512)
5 b255 Blue (000)-(512)
6 u255 White (000)-(512)
7 FH99 Strobe flash (01-99)
8 CL01 Different Colors Output (01-08)
9 CC99 Colors Jump Change (01-99)
10 DE99 Colors Gradate (01-99)
11 CP99 Colors Pulse Change (01-99)
12 SU01 Colors sound-Active (01-09)
3
Instrucciones
R, G, B, W dimmer : from dark to bright
R dimmer : from dark to bright
G dimmer : from dark to bright
B dimmer : from dark to bright
W dimmer: from dark to bright
R, G, B, W strobe: from dark to bright
0-50: DMX 8CH Control.
51-100: Different Colors Output
101-150: Colors Jump Change.
151-200: Colors Gradate.
201-250: Colors Pulse Change.
251-255: Sound-Active
Speed function, from slow to fast
Instruction
DMX-512 address set, 4
Channels mode
DMX-512 address set, 8
Channels mode
UP, DOWN Change brightness
UP, DOWN Change brightness
UP, DOWN Change brightness
UP, DOWN Change brightness
UP, DOWN Change speed
UP, DOWN Change brightness
UP, DOWN Change speed
UP, DOWN Change speed
UP, DOWN Change speed
UP, DOWN Change the effects
WATER 180
RGBW
Please read the manual before using the product
USER´S
MANUAL
