Battery Type . . . . . . . . . . . . . . . .16V Infinium Lithium-Ion
Square Drive Type . . . . . . . . . . . . . . . . . . 1/4" Ball Detent
Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . .330 RPM
Maximum Torque . . . . . . . . . . . . . . . . . . . . . . . . 35 ft . lbs .
Manual Torque Withstand . . . . . . . . . . . . . . . . . . 55 ft . lbs .
Length with Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 16"
Battery Type . . . . . . . . . . . . . . . .16V Infinium Lithium-Ion
Square Drive Type . . . . . . . . . . . . . . . . . . 3/8" Ball Detent
Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . .310 RPM
Maximum Torque . . . . . . . . . . . . . . . . . . . . . . . . 35 ft . lbs .
Manual Torque Withstand . . . . . . . . . . . . . . . . . 155 ft . lbs .
Length with Battery . . . . . . . . . . . . . . . . . . . . . . . . . 161/2"
WARNING
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
MCL1614LR, -G, -M MCL1638LR, -G, -M
Operating Instructions • Warning Information • Parts Breakdown
TRINQUETE 16V DE LARGO ALCANCE 1/4"
CLÉ À CLIQUET DE LONGUE PORTÉE 16V 1/4 PO

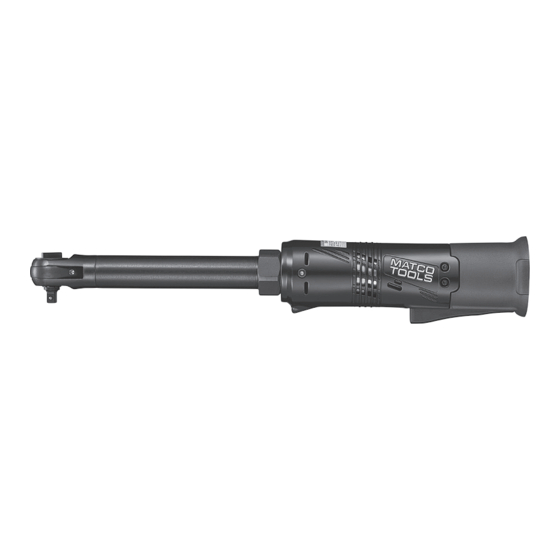

16V 1/4" LONG REACH RATCHET
S P E C I F I C A T I O N S
TRINQUETE 16V DE LARGO ALCANCE 3/8"
CLÉ À CLIQUET DE LONGUE PORTÉE 16V 3/8 PO
16V 3/8" LONG REACH RATCHET
S P E C I F I C A T I O N S
Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles.
Weight with Battery . . . . . . . . . . . . . . . . . . . . . . . . . 3 lbs .
Head Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11/4"
Compatible Battery . . . . . . . . . . . . . . . . . . . . MCL1620LB
Grease Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Captured Head Design . . . . . . . . . . . . . Yes – retaining clip
Tool Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 years
Weight with Battery . . . . . . . . . . . . . . . . . . . . . . . . 3 .4 lbs .
Head Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11/4"
Compatible Battery . . . . . . . . . . . . . . . . . . . . MCL1620LB
Grease Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Captured Head Design . . . . . . . . . . . . . Yes – retaining clip
Tool Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 years
WARNING
Copyright © Professional Tool Products, 2020
1
MCL1614LR
MCL1614LRG
MCL1614LRM
WARNING
EXCEEDING 60 FT. LBS. MANUAL
TORQUE RATING CAN RESULT IN
TOOL DAMAGE NOT COVERED
UNDER WARRANTY
MCL1638LR
MCL1638LRG
MCL1638LRM
All rights reserved.
07/08/20
