2.4.2 Bottom side connections

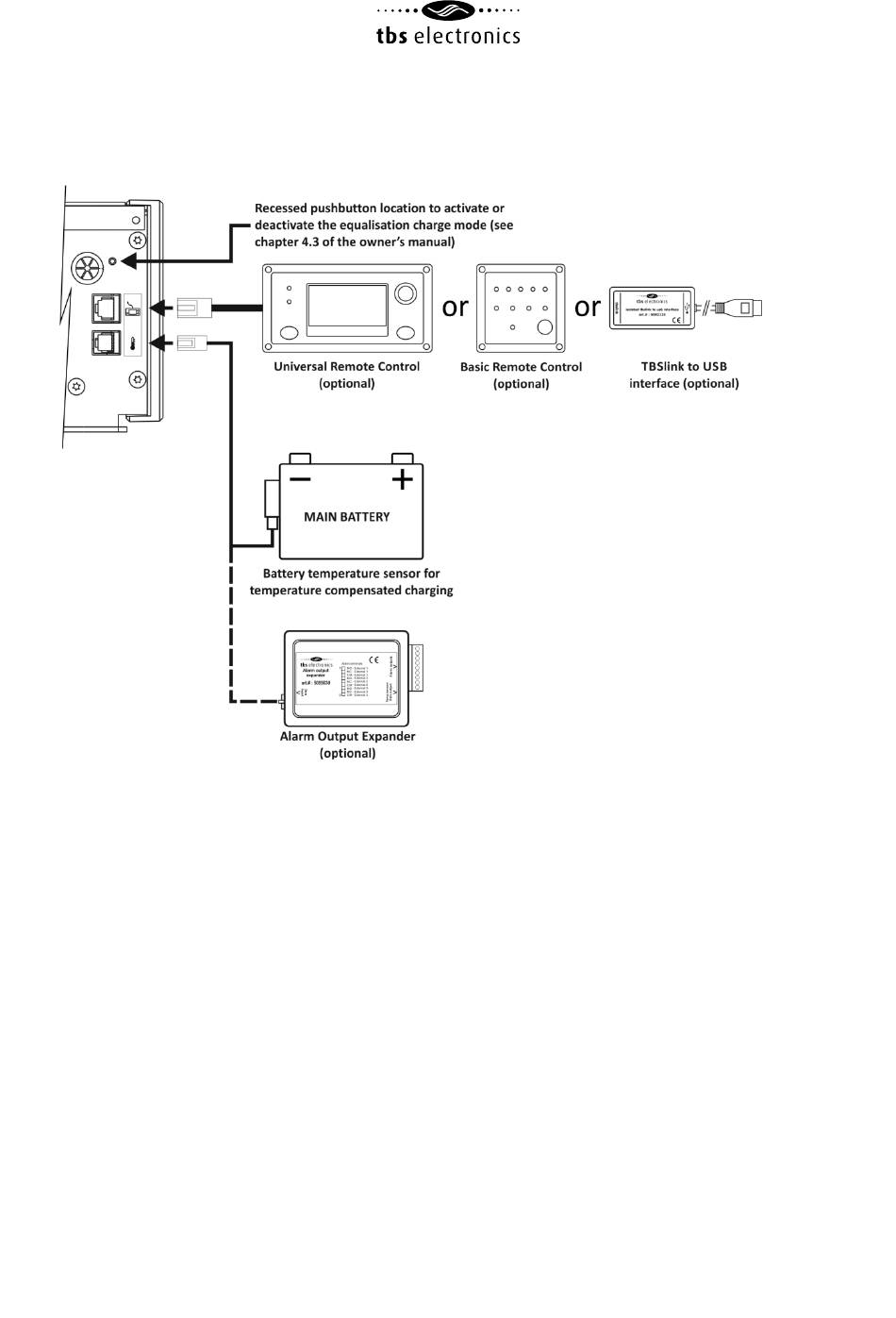

Please see the next image for the bottom side connections.
2.5 Parallel operation
Up to 6 battery chargers of the same model can be connected in parallel, in order to reach
very high charge current levels. This manual will not show any connection or operation
details for paralleled charger systems. Such details are explained in the documentation that
is included with the optional "Omnicharge XL Parallel Kit (art.# 5029950)".
11
