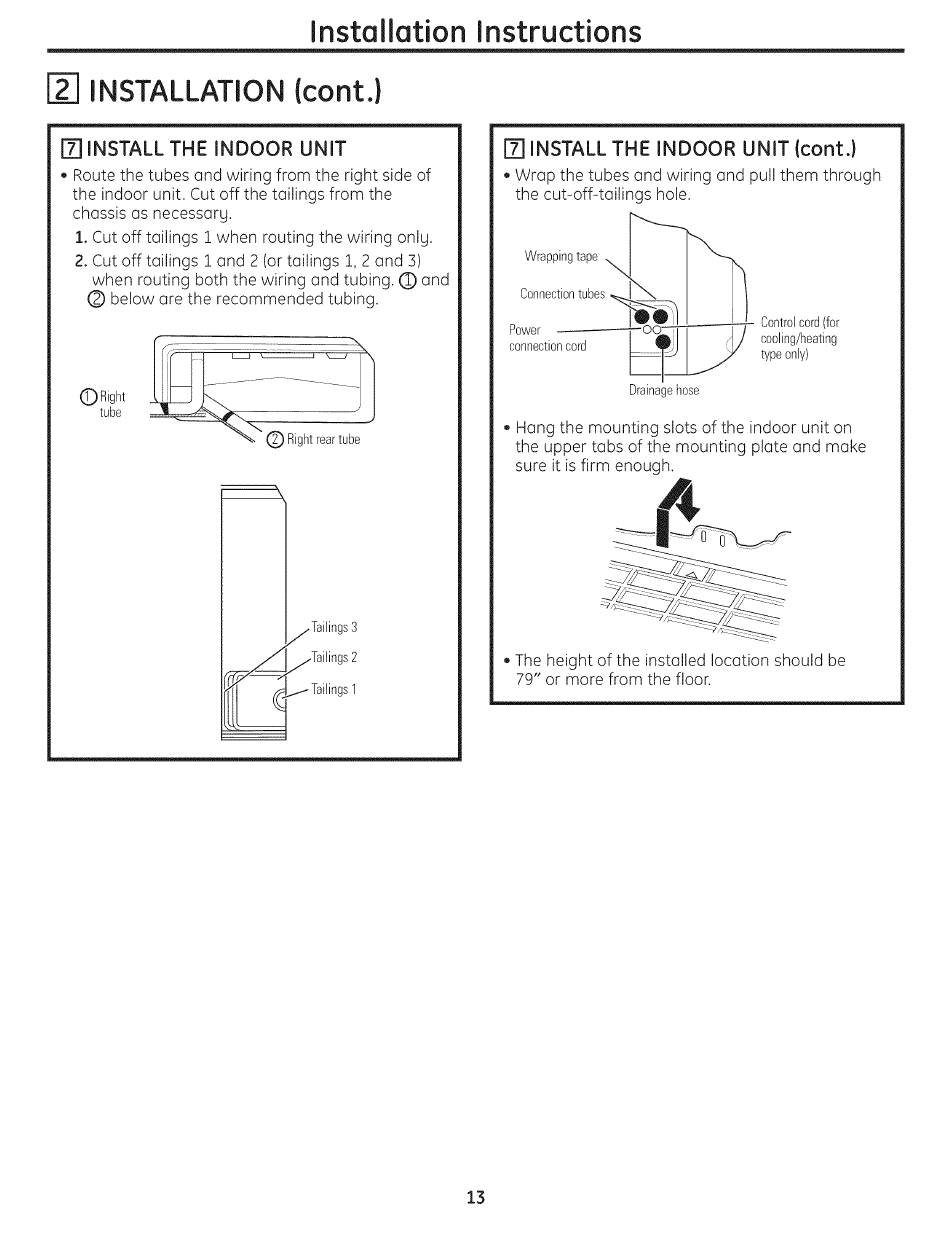

Installation Instructions
INSTALLATION (cont.}
[71 INSTALL THE INDOOR UNIT
• Route the tubes and wiring from the right side of
the indoor unit. Cut off the railings from the
chassis as necessary.
1. Cut off tailings 1 when routing the wiring only.
2. Cut off railings 1 and 2 (or railings 1, 2 and 3)
when routing both the wiring and tubing. (_ and
(_ below are the recommended tubing.
C) Right
tube
jTailings 3
I Jl jTailings 2
I_[_ i-- Tailings1
[2] INSTALL THE INDOOR UNIT (cont.}
• Wrap the tubes and wiring and pull them through
the cut-off-tailings hole.
Wrapping tape
Connection t ubes
Power Control c ord(for
connection cord cooling/heating
typeonly)
Drainage hose
• Hang the mounting slots of the indoor unit on
the upper tabs of the mounting plate and make
sure it is firm enough.
• The height of the installed location should be
79" or more from the floor.
13
