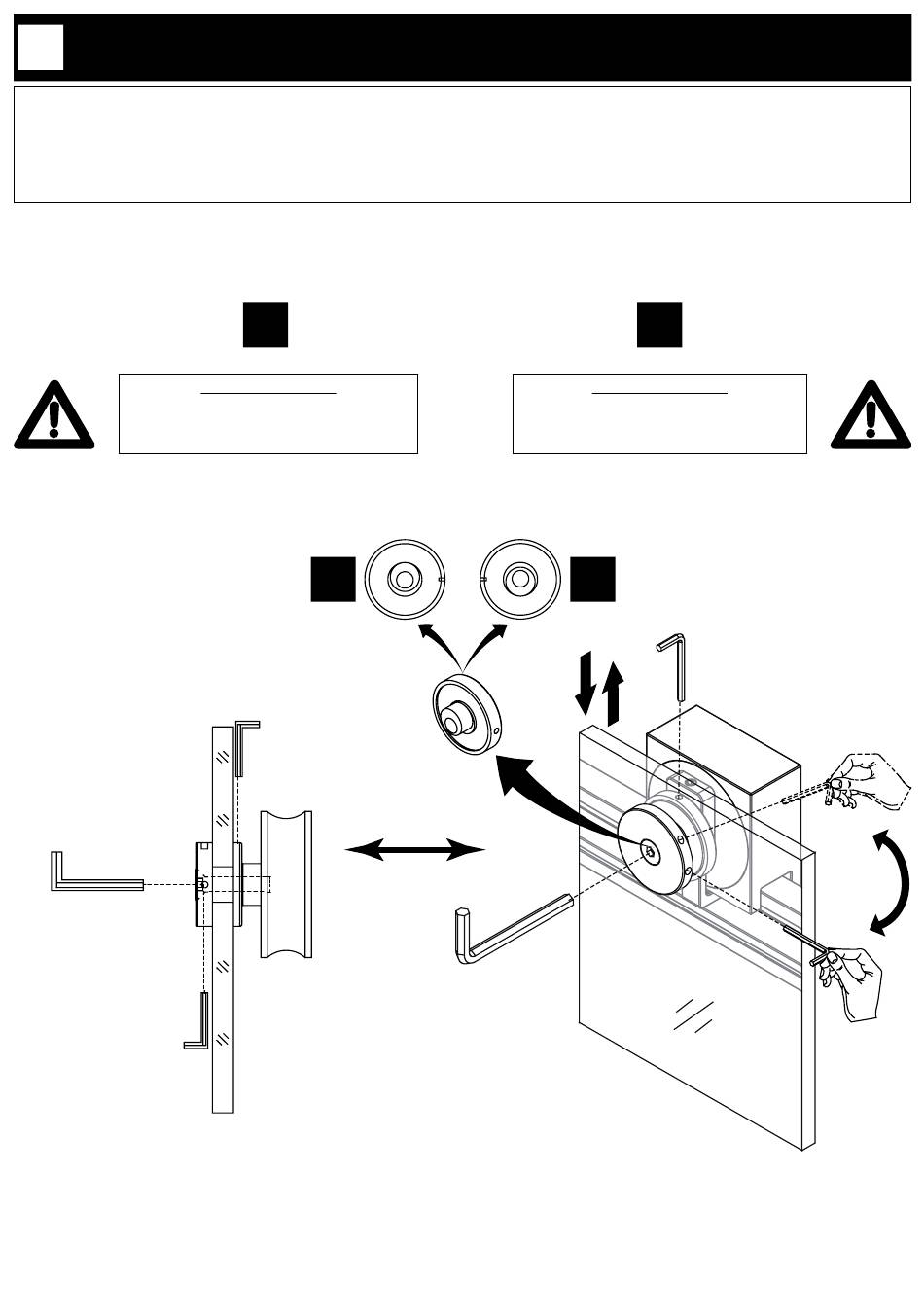

LEVELING THE GLASS PANEL
After the wheels have been installed, adjust the level of the glass panel using the eccentric mechanism of the rollers. Fit the
larger Allen key in the center of the inner roller, fit the smaller Allen key in the small hole located on the rim of the inner roller,
fit the other smaller Allen key in the small hole located on the rim of the outer roller. While holding the outer roller's Allen key in
place, loosen the main bolt in the center of the inner roller slightly using the larger Allen key, rotate the smaller Allen key around
to move the glass panel up or down. When adjustment is finished, retighten the main bolt in the center of the inner roller with the
larger Allen key while holding the 2 smaller Allen keys in place to keep the mechanism from rotating.
1 2
HELPFUL HINT! HELPFUL HINT!
When the eccentric backside of the When the eccentric backside of the
wheel is in this position, it has reached wheel is in this position, it has reached
the "highest" glass position. the "lowest" glass position.
1 2
