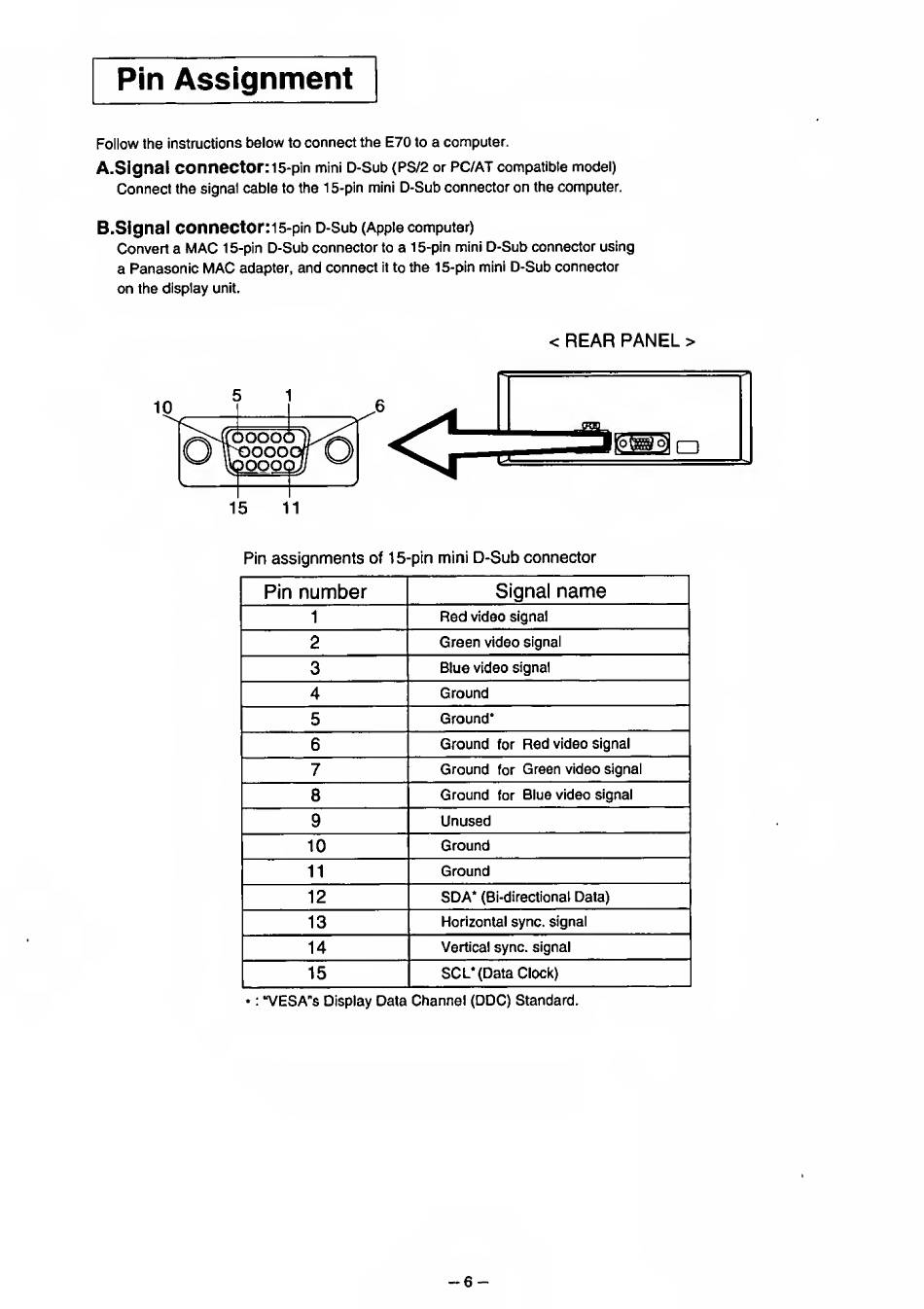

Pin
Assignment
Follow the
instructions
below
to
connect
the
E70
to
a computer.
A.
Signal
COnnector:l5-pin
mini
D-Sub
(PS/2
or
PC/AT
compatible model)
Connect
the
signal
cable
to
the
1
5-pin mini
D-Sub
connector on
the
computer.
B.
Signal
connector:i5-pin D-Sub
(Apple
computer)
Convert a
MAC
15-pin
D-Sub
connector
to
a
15-pin mini
D-Sub
connector using
a Panasonic
MAC
adapter,
and connect
it
to
the 15-pin mini
D-Sub
connector
on
the display
unit.
<
REAR PANEL
>
15
11
Pin
assignments
of 15-pin
mini
D-Sub
connector
Pin
number
Signal
name
1
Red
video
signal
2
Green
video
signal
3
Blue video
signal
4
Ground
5
Ground*
6
Ground
for
Red
video
signal
7
Ground
for
Green
video
signal
8
Ground
for
Blue video
signal
9
Unused
10
Ground
11
Ground
12
SDA*
(Bi-directional
Data)
13
Horizontal sync, signal
14
Vertical
sync, signal
15
SCL*(Data
Clock)
*
:
"VESA's
Display
Data Channel
(DDC)
Standard.
-6 -
