Installation Of The Oven Door

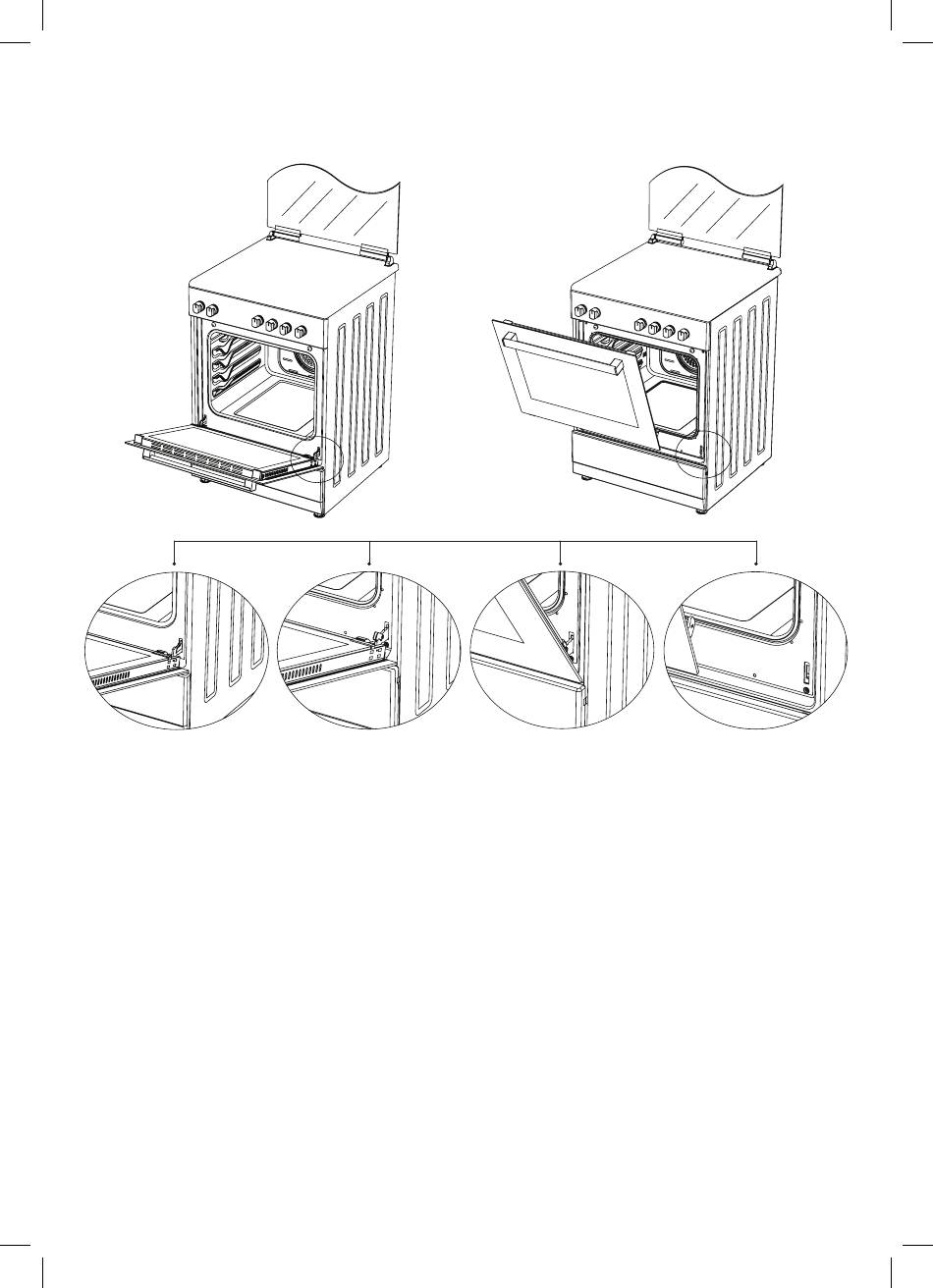

Figure 21
Figure 21.1
Completely open
the oven door
by pulling it to
yourself. After
wards, perform
the unlocking
process by pulling
the hinge lock
upwards with the
help of a screw
driver as shown
in figure 21.1.
In order to re-place the oven door, perform the abovementioned steps in re-
Figure 21.2
Bring the hinge
lock to the widest
angle as shown in
figure 21.2. Bring
both hinges
connecting the
oven door to
the oven to the
same position.
verse.
Figure 22
Figure 22.1
Afterwards, close
the oven door as to
lean on the hinge
lock as shown in
figure 22.1.
Figure 22.2
To remove the
oven door, pull it
upwards by holding
it with both hands
when close to the
closed position
as shown in
figure 22.2.
