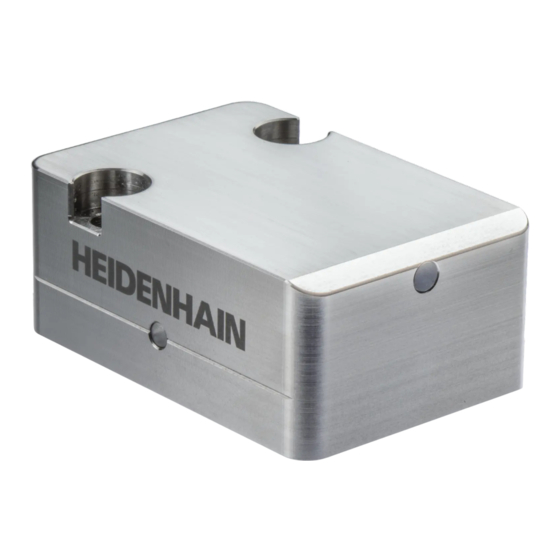

HEIDENHAIN TD 110 Manual De Instrucciones

This document is provided in multiple languages
and available by QR code or at:
www.heidenhain.com/documentation
1418172
1 Fundamentals
1.1 About these instructions
Further information is available in specific documents,
depending on the life-cycle phase of the product and on
the target group for the activity.
Further information: "Information based on the
document type, the life-cycle phase of the product, and
the target group", Page 2
1.2 Notes on reading this document
Fatal accidents, personal injury or property damage caused by
non-compliance with the documentation!
Failure to comply with the documentation may result in fatal
accidents, personal injury or property damage.
Read the documentation carefully from beginning to end
Keep the documentation for future reference
2 Safety
2.1 Intended use
The products of this/these series are touch probes for machine
tools.
The products are intended for use in research facilities,
commercial applications, and in an industrial environment.
The products must be used only in accordance with the
information based on the life-cycle phase of the product and on the
target group.
Further information: "Information based on the document type, the
life-cycle phase of the product, and the target group", Page 2
Search
WARNING
Operating Instructions
(Authorized Documentation)
2.2 Improper use
Any use not specified in "Intended use" is considered improper use.
The company operating the device is solely liable for any damage
resulting from improper use.
2.3 Obligations of the operating company
The company operating the product must provide the personnel
with the most current version of all documentation on the product.
2.4 General safety precautions
Mounting and initial configuration must be conducted
by a qualified specialist in compliance with local safety
regulations.
Touch probes and touch probe accessories may be
repaired only by trained HEIDENHAIN technicians.
Fatal accidents, personal injury, or property damage when
engaging or disengaging live connecting elements
Engaging or disengaging connecting elements while the system
is under power may result in fatal accidents, personal injury, or
property damage.
Do not engage or disengage any connecting elements while
the product is under power.
Touch probes and touch probe accessories that have
contributed to the failure of a safety function in the
application must be returned to HEIDENHAIN Traunreut.
TD 110
English (en)
WARNING
10/2023
