EN ENGLISH
KIT19
The KIT19 cable is designed to connect REDARC FK23, FK30, FK40 and
FK60 fuse kits to a 12 V battery positive (+) terminal. It is suitable for all
REDARC BCDC and Manager 30 models with charge current ratings up to
50 A.
KIT19 is a 7 AWG (10 mm²) cable with a 3/16" (M5) lug on one end and a
5/16" (M8) lug on the other.
The approximate length between lug mounts is 5 29/32" (150 mm).
WARNING & SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS — This manual contains important safety
instructions for KIT19.
DO NOT use KIT19 unless you have read and understood this manual
and the charger is installed as per these installation instructions. REDARC
recommends that the charger be installed by a suitably qualified person.
CAUTION
ƒ Cable and fuse sizes are specified by various codes and standards
which depend on the type of vehicle the Battery Charger is installed into.
Selecting the wrong cable or fuse size could result in harm to the installer
or user and/or damage to the Battery Charger or other equipment installed
in the system. The installer is responsible for ensuring that the correct cable
and fuse sizes are used when installing this Battery Charger.
ƒ NEVER smoke or allow a spark or flame in vicinity of battery or engine.
This may cause the battery to explode.

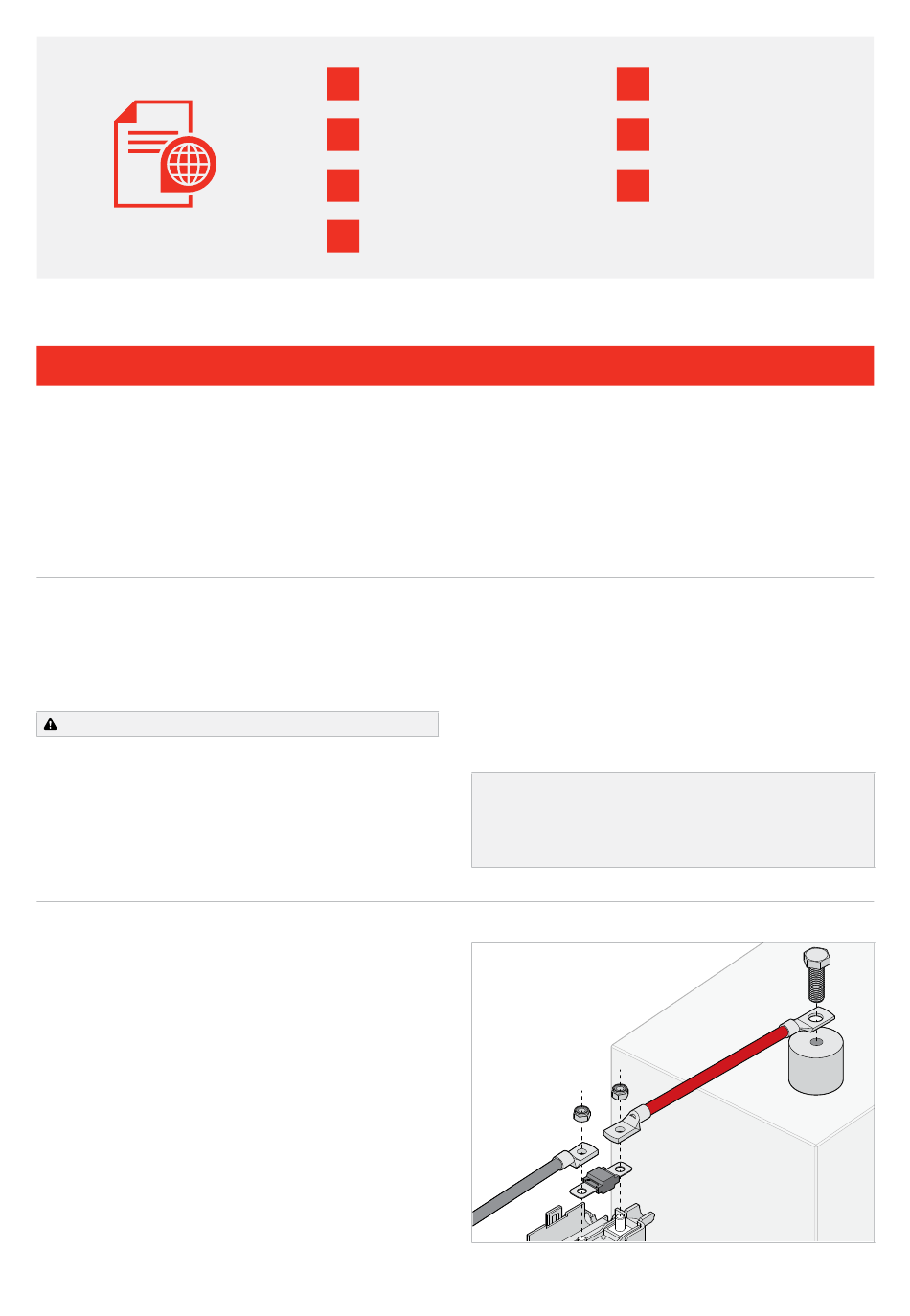

WIRING KIT19
1. Connect the 3/16" (M5) lug on the KIT19 cable to the fuse holder (not
included).
2. Connect the 5/16" (M8) lug on the KIT19 cable to the battery positive
terminal (bolt not included).
3. Connecting the BCDC to the fuse holder (not included):
ƒ If the fuse is on the input side/start battery side of the BCDC, connect the
BCDC RED wire to the fuse holder.
ƒ If the fuse is on the output side/auxiliary battery side of the BCDC, connect
the BCDC output BROWN wire to the fuse holder.
4. Ensure all wiring is secured, well insulated, isolated from heat sources and
protected from possible damage.
NOTE: Some of the parts and fasteners shown may differ from those required
for your installation.
2 | EN English
2
English
EN
Deutsch 3
DE
Español 4
ES
francais 5
FR
NOTE: Some loads can draw very large currents so care must be taken
to ensure the total continuous current passed through the cable does not
exceed 50 A. For high load current applications a separate dedicated and
suitably rated cable should be used.
PERSONAL SAFETY PRECAUTIONS
To assist with the safe operation and use of the Battery Charger when
connected to the battery:
ƒ Wear complete eye protection and clothing protection. Avoid touching eyes
while working near a battery.
ƒ If battery acid contacts your skin or clothing, remove the affected clothing
and wash the affected area of your skin immediately with soap and water.
If battery acid enters your eye, immediately flood the eye with running cold
water for at least 10 minutes and seek medical assistance immediately.
Before you begin the installation, check that you have everything
you need.
Additional items are required to complete this installation, and are not
included with the kit. The installer must supply all parts, tools, and
fasteners that are suitable for the individual installation configuration.
