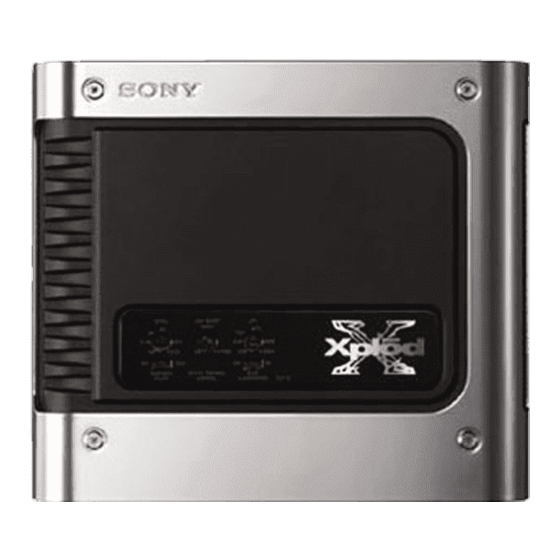

Sony XM-1S Manual De Servicio
Ocultar thumbs Ver también para XM-1S:

Publicidad

Enlaces rápidos

QQ
3 7 63 1515 0
SERVICE MANUAL
Ver. 1.0 2006. 11
AUDIO POWER SPECIFICATIONS (US MODEL)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
290 watts minimum continuous average power into 4 ohms,
20 Hz to 200 Hz with no more than 1.0% total harmonic
distortion per Car Audio Ad Hoc Committee standards.
TE
Other Specifications
L 13942296513
Circuit system
Class D Technology
Pulse power supply
Inputs
RCA pin jacks
High level input connector
Outputs
Speaker terminals
Through out pin jacks
Suitable speaker impedance
2 – 8 Ω
Maximum outputs
600 W (at 4 Ω)
900 W (at 2 Ω)
Rated outputs (supply voltage at 14.4 V)
290 W RMS (20 – 200 Hz, 1.0% THD+N, at 4 Ω)
500 W RMS (100 Hz, 1.0% THD+N, at 2 Ω)
SN Ratio
65 dBA (Reference 1 W into 4 Ω)
90 dBA (Reference rated power into 4 Ω)
Frequency response
5 – 300 Hz (
Harmonic distortion
0.1% or less (at 50 Hz, 4 Ω)
Input level adjustment range
0.3 – 6.0 V (RCA pin jacks)
6.5 – 16.0 V (High level input)
www
.
Sony Corporation
9-887-488-01
2006K04-1
eVehicle Division
© 2006. 11
Published by Sony Techno Create Corporation
http://www.xiaoyu163.com
+0
dB)
–3
x
ao
u163
y
i
http://www.xiaoyu163.com
2 9
8
SPECIFICATIONS
Q Q
3
6 7
1 3
1 5
Subsonic filter
Low pass filter
Low boost
Power requirements
Power supply voltage
Current drain
Dimensions
Mass
Supplied accessories
Design and specifications are subject to change without
notice.
MONAURAL POWER AMPLIFIER
co
.
XM-1S
9 4
2 8
US Model
Canadian Model
AEP Model
UK Model
E Model
0 5
8
2 9
9 4
2 8
15 Hz, –12 dB/oct
50 – 300 Hz, –12 dB/oct
0 – 10 dB (40 Hz)
12 V DC car battery
(negative ground)
10.5 – 16 V
at rated output: 55 A (at 2 Ω)
Remote input: 1 mA
Approx. 223 × 43.5 × 196 mm
(8
× 1
× 7
in.) (w/h/d) not incl.
7/8
3/4
3/4
projecting parts and controls
Approx. 2.3 kg (5 lb. 2 oz.) not incl. accessories
Mounting screws (4)
High level input cord (1)
m
9 9
9 9
1

Publicidad

loading

Resumen de contenidos para Sony XM-1S

  • Página 1 0.1% or less (at 50 Hz, 4 Ω) notice. Input level adjustment range 0.3 – 6.0 V (RCA pin jacks) 6.5 – 16.0 V (High level input) MONAURAL POWER AMPLIFIER u163 Sony Corporation 9-887-488-01 2006K04-1 eVehicle Division © 2006. 11 Published by Sony Techno Create Corporation http://www.xiaoyu163.com...
  • Página 2 REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL IN SUPPLEMENTS PUBLISHED BY SONY. OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
  • Página 3 XM-1S SECTION 1 GENERAL 3 7 63 1515 0 This section is extracted from instruction manual. Location and Function of Controls Features 1 LEVEL adjustment control 5 BLUE ILLUMINATION lamp ( 8 ) ON/OFF • Maximum power output of 900 W (at 2 Ω).
  • Página 4 XM-1S 3 7 63 1515 0 Connections Installation Block Diagram/Schéma fonctionnel/ Before Installation First, place the unit where you plan to install it, and Diagrama del circuito mark the positions of the four screw holes on the • Mount the unit either inside the trunk or under surface of the mounting board (not supplied).
  • Página 5 • Do not connect any active speakers (with built-in In such a case, consult your nearest Sony dealer. amplifiers) to the speaker terminals of the unit. Doing so may damage the active speakers.
  • Página 6 XM-1S 3 7 63 1515 0 Input Connections/Connexions d’entrée/Conexiones de entrada Speaker Connections/Conexións des haut-parleurs/ For details on the settings of switches and controls, refer to “Location and Function of Controls”. Conexiones de los altavoces Pour plus de détails sur les réglages des commutateurs et commandes, reportez-vous à...
  • Página 7 XM-1S SECTION 2 DISASSEMBLY 3 7 63 1515 0 Note : This set can be disassemble according to the following sequence. 2-1. MAIN BOARD SECTION (Page 7) 2-2. FILTER BOARD 2-3. MAIN BOARD (Page 8) (Page 8) Note : Follow the disassembly procedure in the numerical order given.
  • Página 8 XM-1S 3 7 63 1515 0 2-2. FILTER BOARD 3 screw 1 two screws (+PTT 2.6 × 4) (+PTT 2.6 × 4) 4 two screws (+PTT 2.6 × 4) 2 FILTER board 6 LED XPLOD board main heat sink L 13942296513 2-3.
  • Página 9 XM-1S SECTION 3 3 7 6 3 1 5 1 5 0 DIAGRAMS 3-1. BLOCK DIAGRAM PRE AMP FILTER AMP GAIN AMP IC101 (1/2) BOOST AMP PRE AMP PRE AMP FILTER AMP IC103 (1/2) IC102 (2/2) J101 IC103 (2/2)
  • Página 10 XM-1S 3 7 6 3 1 5 1 5 0 3-2. CIRCUIT BOARDS LOCATION • Waveform THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. IC901 5 (In addition to this, the necessary note is printed in each block.)
  • Página 11 XM-1S 3 7 6 3 1 5 1 5 0 3-3. PRINTED WIRING BOARDS — MAIN SECTION (1/2) — • Refer to page 10 for Circuit Boards Location. : Uses unleaded solder. 1 3 9 4 2 2 9 6 5 1 3...
  • Página 12 XM-1S 3 7 6 3 1 5 1 5 0 3-4. PRINTED WIRING BOARDS — MAIN SECTION (2/2) — • Refer to page 10 for Circuit Boards Location and Semiconductor Location. : Uses unleaded solder. C837 R840 R838 R185...
  • Página 13 XM-1S 3 7 6 3 1 5 1 5 0 3-5. SCHEMATIC DIAGRAM — FILTER, MAIN SECTION (1/3) — S101 IC103(2/2) C118 IC102(2/2) IC102(1/2) R130 R113 D101 C121 Q101 R131 C114 C115 C119 C113 R132 C123 R120 D102 R115...
  • Página 14 XM-1S 3 7 6 3 1 5 1 5 0 3-6. SCHEMATIC DIAGRAM — MAIN SECTION (2/3) — • Refer to page 17 for IC Block Diagrams. (Page 13) D861 R877 C840 C837 C844 R875 R173 C155 C154 R874...
  • Página 15 XM-1S 3 7 6 3 1 5 1 5 0 3-7. SCHEMATIC DIAGRAM — MAIN SECTION (3/3) — • Refer to page 10 for Waveform and page 17 for IC Block Diagrams. (Page 14) R813 D855 R834 R946 D922...
  • Página 16 XM-1S 3 7 6 3 1 5 1 5 0 3-8. PRINTED WIRING BOARDS — FILTER SECTION — • Refer to page 10 for Circuit Boards Location. : Uses unleaded solder. 1 3 9 4 2 2 9 6 5 1 3...
  • Página 17 XM-1S 3 7 63 1515 0 • IC Block Diagrams IC112 IRS2110S (MAIN BOARD (2/3)) DETECT LEVEL PULSE SHIFT VDD/VCC FILTER LEVEL SHIFT PULSE 3 VCC VDD/VCC DETECT LEVEL LIN 14 SHIFT DELAY VSS 15 IC901 TL594INSR (MAIN BOARD (3/3))
  • Página 18 XM-1S SECTION 4 EXPLODED VIEWS 3 7 63 1515 0 NOTE: • The mechanical parts with no reference • Color Indication of Appearance Parts The components identified by mark 0 or dotted line with mark number in the exploded views are not supplied.
  • Página 19 XM-1S 3 7 63 1515 0 4-2. MAIN BOARD SECTION not supplied (LED-FOOT-L board) not supplied (LED-FOOT-R board) Q115,Q112 not supplied D906,D905 not supplied Q907,Q906,Q905, L 13942296513 Q909,Q910,Q911 F902 F901 Ref. No. Part No. Description Remark Ref. No. Part No.
  • Página 20 XM-1S SECTION 5 FILTER LED-FOOT-L ELECTRICAL PARTS LIST 3 7 63 1515 0 LED-FOOT-R NOTE: • Due to standardization, replacements in • Items marked “*” are not stocked since The components identified by mark 0 or dotted line with mark the parts list may be different from the they are seldom required for routine service.
  • Página 21 XM-1S LED-XPLOD MAIN 3 7 63 1515 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark LED-XPLOD BOARD C160 1-126-933-11 ELECT 100uF C161 1-107-826-11 CERAMIC CHIP 0.1uF **************** C162 1-126-947-11 ELECT 47uF < CAPACITOR >...
  • Página 22 XM-1S MAIN 3 7 63 1515 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C926 1-115-339-11 CERAMIC CHIP 0.1uF D125 8-719-065-48 DIODE 02DZ18-Y(TPH3) C927 1-126-969-11 ELECT 220uF D126 8-719-988-61 DIODE 1SS355TE-17 C928 1-126-969-11 ELECT...
  • Página 23 XM-1S MAIN 3 7 63 1515 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark L112 1-216-295-11 SHORT CHIP < RESISTOR > L113 1-216-295-11 SHORT CHIP L901 1-457-187-11 COIL, CHOKE R101 1-216-841-11 METAL CHIP 1/10W...
  • Página 24 XM-1S MAIN 3 7 63 1515 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R185 1-216-809-11 METAL CHIP 1/10W R863 1-216-823-11 METAL CHIP 1.5K 1/10W R186 1-216-811-11 METAL CHIP 1/10W R864 1-216-833-11 METAL CHIP...
  • Página 25 XM-1S MAIN 3 7 63 1515 0 Ref. No. Part No. Description Remark < CONNECTOR > * TM101 1-691-785-11 PIN, CONNECTOR (PC BOARD) 4P (SENSING POWER ON HIGH LEVEL INPUT) ************************************************************* ACCESSORIES ************ 2-891-667-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH, SPANISH) (US,CND,AEP,UK)
  • Página 26 XM-1S 3 7 63 1515 0 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper on the revised page allows you to jump to the next revised page.
