C I T A T I O N
1
PRODUCT TOUR

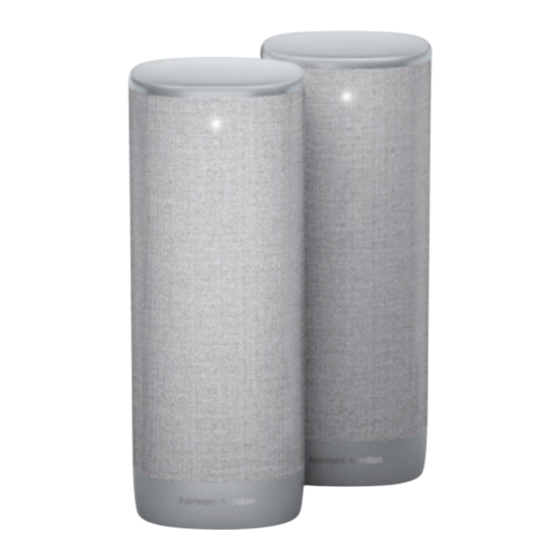

Citation Surround
Front
2
GET STARTED
A
C
Select "Speaker Setup",
follow on-screen instructions.
3
WALL MOUNT
Step 1: Remove the rubber feet from
the bottom of the speaker.
Step 2: Mount the wall bracket in the wall
using screws.
Step 3: Feed the power cord upward
through the wall mount and
connect to the power connector.
Step 4: Place the speaker in the wall
mount with the supplied screws on
the bottom.
Step 5: Use the nut at bottom of wall
mount bracket to angle the speaker
and tighten.
4
OWNER'S MANUAL
Download the full Owner's Manual from harmankardon.com
Téléchargez le mode d'emploi complet sur harmankardon.com
Descárgate el Manual de usuario completo en: harmankardon.com
Laden Sie die vollständige Bedienungsanleitung von harmankardon.com
Scarica il manuale dell'utente integrale da harmankardon.com
Download de complete gebruikershandleiding van harmankardon.com
Last ned hele brukerhåndboken fra harmankardon.com
Ladda ner hela bruksanvisningen från harmankardon.com
Hent hele brugsanvisningen fra harmankardon.com
『Owner's Manual』(取扱説明書)(全文)をharmankardon.com からダウンロードしてください
harmankardon.com 에서 사용자 매뉴얼 전체를 다운로드하십시오
Unduh Buku Petunjuk Pemilik yang lengkap dari harmankardon.com/wireless
5
SPECIFICATION
EN
Model Name: CITATION SURROUND
• Signal-to-noise ratio: >80dB
• Output power: 2x50W RMS
• Power Supply: 100-240V ~ 50/60Hz
• Power consumption in sleep mode: <2.0Watts
• 5G WISA transmitter power: <14dBm
• 5G WISA modulation: OFDM, BPSK, QPSK, 16QAM
• 5G WISA transmitter frequency range: 5.15 - 5.35GHz,
5.470 - 5.725GHz, 5.725 - 5.825GHz
• Dimension (W x H x D): 105 x 273 x 86mm (4" x 10.7" x 3.3")
• Weight: 1.29kg (2.84 lb)
This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAN ICES-3 (B) / NMB-3 (B).
IC Caution:
User should also be advised that:
(i) the device for operation in the band 5150 - 5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250 - 5350 MHz and 5470 - 5725 MHz shall comply with the e.i.r.p. limit: and
(iii) the maximum antenna gain permitted for devices in the band 5725 - 5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non
point-to-point operation as appropriate.
(iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250 - 5350 MHz and 5650 - 5850 MHz and that
these radars could cause interference and/or damage to LE-LAN devices.
Les utilisateurs devraient aussi être avisés que
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage
préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) le gain maximal d'antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz et 5 470-5 725 MHz doit se conformer à la limite de p.i.r.e.;
(iii) le gain maximal d'antenne permis (pour les dispositifs utilisant la bande 5 725-5 825 MHz) doit se conformer à la limite de p.i.r.e. spécifiée pour l'exploitation point
à point et non point à point, selon le cas.De plus, les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour
les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars pourrai ent causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage
this device. No configuration controls are provided for this wireless equipment allowing any change in the frequency of operations outside the FCC grant of
authorization for US operation according to Part 15.407 of the FCC rules.
FCC/IC Radiation Exposure Statement:
This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator and your body.
Cet équipement est conforme aux limites d'exposition aux radiationsFCC/ IC CNR-102 établies pour un environnement non contrôlé. Cet équipement doit être installé et
utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.
해당무선설비는전파혼신가능성이있으므로인명안전과관련된서비스는할수없음.
Use Restriction: This device is restricted to indoor use when operating in the 5150 to 5350 MHz frequency range in following countries:
BE
EL
LT
PT
BG
ES
LU
RO
CZ
FR
HU
SI
DK
HR
MT
SK
DE
IT
NL
FI
EE
CY
AT
SE
IE
LV
PL
UK
FR
DÉCOUVERTE DU PRODUIT
1
Citation Surround x2
2 supports de montage mural
2 cordons d'alimentation aux normes locales (varie en fonction du pays)
Avant
Retour
Réinitialiser
Bas
Connecteur d'alimentation
Voyant d'état à LED
(pour appairage)
Entrer en mode appairage
Connexion sans fil avec Bar
Hors de portée/Connexion sans
fil perdue
PRISE EN MAIN
2
Citation Bar
Sélectionnez « Configuration de l' e nceinte », suivez les instructions à l'écran.
MONTAGE MURAL
3
Étape 1 : Retirez les pieds en caoutchouc du dessous de l'enceinte.
Étape 2 : Montez le support mural sur la paroi en utilisant les vis.
Étape 3 : Faites passer le cordon secteur vers le haut par le support mural et branchez-le
au connecteur d'alimentation.
ES
COMPONENTES DEL PRODUCTO
1
Citation Surround x2
2 soportes de montaje en pared
2 cables de alimentación regional (varía según el país)
Parte delantera
Parte posterior
Restablecer
Parte inferior
Conector de alimentación
Indicador de estado LED
(para pareado)
Entrar en modo de pareado
Conexión inalámbrica con barra
Fuera de cobertura/pérdida de
conexión inalámbrica
EMPEZAR
2
Citation Bar
Selecciona Speaker Setup" (Ajustes del altavoz) y sigue las instrucciones de la pantalla.
MONTAJE EN LA PARED
3
Paso 1: Quita las patas de goma de la parte inferior del altavoz.
Paso 2: Monta el soporte mural en la pared con tornillos.
Paso 3: Haz pasar el cable hacia arriba a través del soporte mural y
conéctalo al conector de alimentación.
x2
Back
Reset
Citation Bar
1
Belgium (BE), Greece (EL), Lithuania (LT), Portugal (PT), Bulgaria (BG), Spain (ES), Luxembourg (LU), Romania (RO), Czech Republic (CZ),
France (FR), Hungary (HU), Slovenia (SI), Denmark (DK), Croatia (HR), Malta (MT), Slovakia (SK), Germany (DE), Italy (IT), Netherlands (NL),
Finland (FI), Estonia (EE), Cyprus (CY), Austria (AT), Sweden (SE), Ireland (IE), Latvia (LV), Poland (PL) and United Kingdom (UK).
This product contains open source software licensed under GPL. For a list of open source software and other relevant information,
please download the Harman Kardon Controller app available on the App Store or Google Play. For your convenience, the source code
and relevant build instruction are also available at http://www.harmankardon.com/opensource.html. Please feel free to contact us at:
Harman Deutschland GmbH
ATT: Open Source, Gregor Krapf-Gunther
Parkring 3
85748 Garching bei Munchen
Germany
or OpenSourceSupport@Harman.com if you have additional question regarding the open source software in the product.
Comportement
du voyant à LED
Clignotant
10 sec
Arrêt
Clignotant
Funcionamiento
LED
Parpadeante
10 s
Apagado
Parpadeante
S U R R O U N D
LED Indicator Status (for pairing)
Enter into pairing mode
Wireless connected with
Citation Bar
Out of range/Lost wireless connection
>5s
Reset
B
2
• Packaging Dimension (W x H x D): 235 x 383 x 150mm
(10" x 15" x 6")
• Packaging Weight (Gross): 3.57kg (7.87 lb)
Note: This product is designed to be instantly on and ready
to receive signal from WiSA Tx Unit at a moment's notice,
wireless connection must remain active at all times to ensure
proper operation.
The product is in compliance with the European Union
energy legislation. The product will enter into sleep mode
(networked standby) after 20 minutes without operation,
after which it can be re-activated via wireless.
Étape 4 : Placez l'enceinte dans le support mural et vissez les vis fournies sur son dessous.
Étape 5 : Utilisez l'écrou au bas de la fixation murale pour orienter l'enceinte puis serrez.
CARACTÉRISTIQUES TECHNIQUES
5
• Désignation du modèle : CITATION SURROUND
• Rapport signal/bruit : >80dB
• Réinitialiser: 2x50W RMS
• Alimentation : 100-240V ~ 50/60Hz
• Consommation d' é nergie en mode veille : <2,0 watts
• Puissance de l' é metteur WISA 5G : <14dBm
• Modulation WISA 5G : OFDM, BPSK, QPSK, 16QAM
• Plage de fréquences de l' é metteur WISA 5G :
5.15GHz - 5.35GHz, 5.47~5.725 GHz, 5.725~5.825GHz
• Dimensions (L x H x P) : 105 x 273 x 86mm (4" x 10.7" x 3.3")
• Poids : 1.29kg (2.84 lb)
• Dimensions de l'emballage (L x H x P) : 235 x 383 x 150mm (10" x 15" x 6")
• Poids de l'emballage (brut) : 3.57kg (7.87 lb)
Remarque : Ce produit est conçu pour être instantanément allumé et
prêt à recevoir le signal de WiSA Tx Unit à tout moment, la connexion sans
fil doit rester active constamment pour assurer son bon fonctionnement.
Le produit est conforme à la législation sur l'énergie de l'Union
européenne. Le produit passe en mode sommeil (veille en réseau) après 20
minutes sans fonctionnement, après quoi il peut être réactivé via une
connexion sans fil.
Paso 4: Coloca el altavoz en el soporte mural con los tornillos suministrados
en la parte inferior.
Paso 5: Utiliza el tornillo de la parte inferior del soporte mural para inclinar el
altavoz y apriétalo.
ESPECIFICACIONES
5
• Nombre del modelo: CITATION SURROUND
• Relación señal/ruido: >80dB
• Potencia de salida: 2x50W RMS
• Alimentación eléctrica: 100-240V ~ 50/60Hz
• Consumo de energía en modo de reposo: <2,0 vatios
• Potencia del transmisor WISA 5G: <14dBm)
• Modulación 5G WISA: OFDM, BPSK, QPSK, 16QAM
• Rango de frecuencia del transmisor WISA 5G:
5.15GHz - 5.35GHz, 5.47~5.725 GHz, 5.725~5.825GHz
• Dimensiones (anch. x alt. x prof.): 105 x 273 x 86mm (4" x 10.7" x 3.3")
• Peso: 1.29kg (2.84 lb)
• Dimensiones del embalaje (Anch. x Alt. x Prof.): 235 x 383 x 150mm
(10" x 15" x 6")
• Peso del paquete (bruto): 3.57kg (7.87 lb)
Nota: Este producto está diseñado para encenderse y estar a punto
para recibir la señal de WiSA Tx Unit en un instante. La conexión
inalámbrica debe permanecer activa en todo momento para garantizar un
funcionamiento correcto. Este producto cumple con las normas de la
Unión Europea sobre energía. El producto se pone en modo de reposo
(espera en red) al cabo de 20 minutos sin funcionamiento, después de lo
cual se puede reactivar por vía inalámbrica.
Wall mount bracket
Regional power cord
(varies depending on country)
LED Behavior
Flashing
10 sec
Flashing
Bottom
Power connector
3
5
x2
x2
Off
Reset
4
