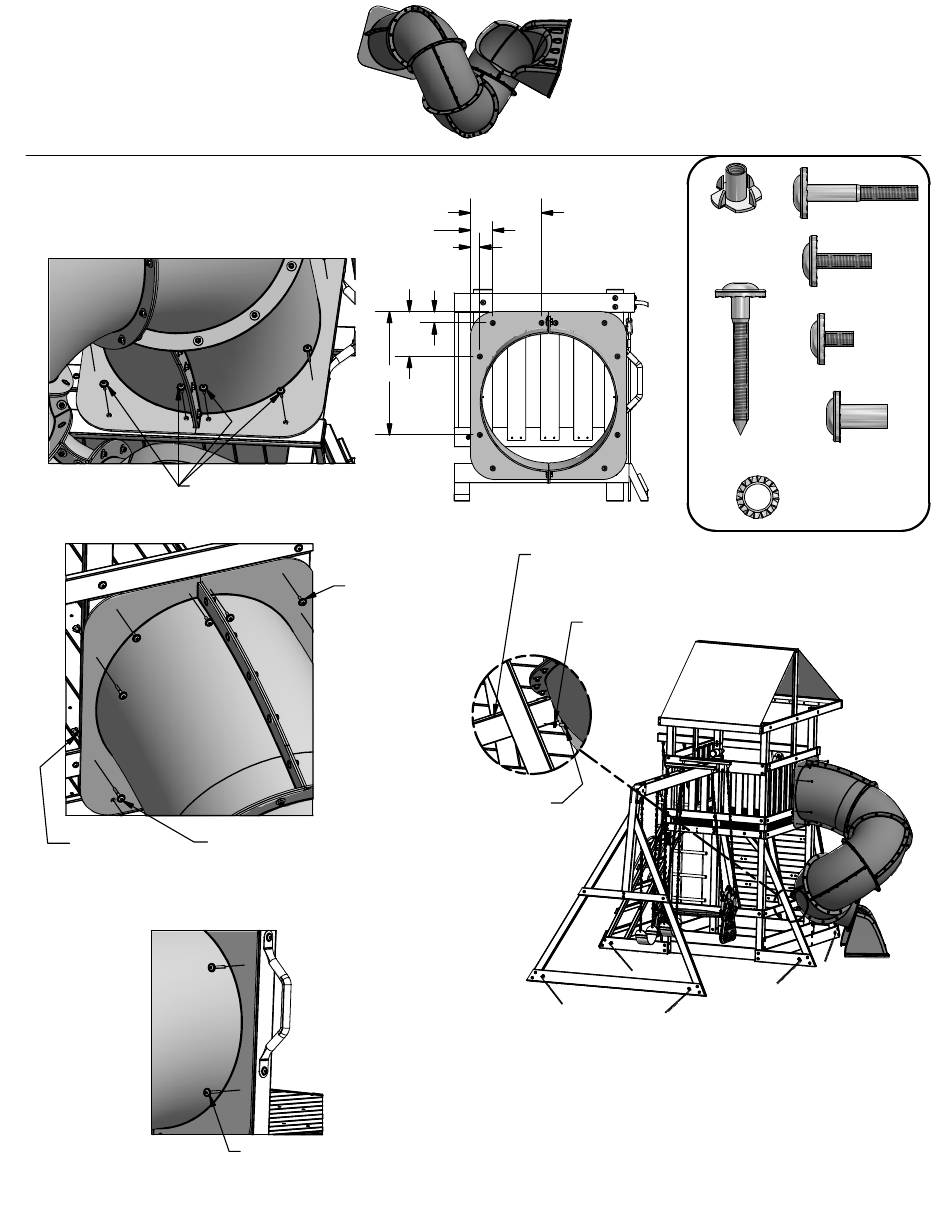

STEP 49
ASSEMBLE SPIRAL SLIDE PER INSTRUCTIONS IN SPIRAL SLIDE BOX.
BOLT WH 5/16x1
(4 PLCS)
(ATTACH THESE BOLTS FIRST)
T-NUT 5/16
(2 PLCS)
(ATTACH 6 BOLTS IN THIS VIEW SECOND
DRILL 1/2" HOLES
SEE DRILL PATTERN ABOVE)
(1) 9168022 5' SPIRAL SLIDE
22
BOLT WH 5/16x1
(4 PLCS)
NUT BARREL WH 5/16x7/8
BOLT WH 5/16x2
(2 PLCS)
LAG SCREW WH 5/16x2 1/2
(2 PLCS)
(ATTTACH THESE LAG SCREWS LAST
DRILL 1/2" HOLES
SEE DRILL PATTERN ABOVE)
12 3/4
4
1 11/16
2
8
BOLT WH 5/16x1/2
(1 PLC)
(1 PLC)
(DRILL 7/16" HOLE
IN WOOD USING
BRACKET AS A
GUIDE)
(2)
T-NUT 5/16
LAG SCREW
(2)
WH 5/16x2 1/2
WASHER LOCK EXT 12x19
(1 PLC)
FINAL STEP
DOUBLE CHECK EVERY BOLT, SCREW
& NUT FOR TIGHTNESS. MAKE SURE
EVERY BOARD IS SECURE AND MAKE
SURE THE PLAYSET IS LEVEL.
ENJOY YOUR NEW PLAYSET!
BOLT WH
(2)
5/16x2
BOLT WH
(8)
5/16x1
BOLT WH
(1)
5/16x1/2
NUT BARREL
(1)
WH 5/16x7/8
WASHER
(1)
LOCK EXT
12x19
