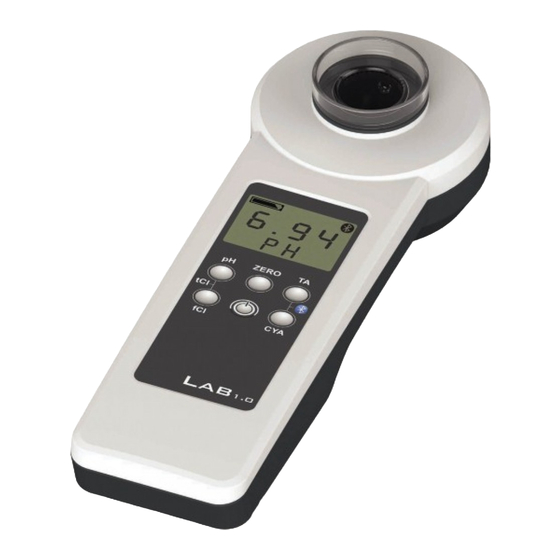

- Página 1 User Manual Manuel d’utilisation Manual de usuario Gebrauchsanleitung Manuale dell’utente www.poollab.org...
-
Página 2: Tabla De Contenido
CONTENT • CONTENU • CONTENIDO INHALT • CONTENUTO Delivery content Changing Batteries Switch on/off General Advices 6 - 7 ZERO 8 - 9 TEST - pH 10 - 11 TEST - Cl - Chlorine 12 - 15 TEST - CYA - Cyanuric Acid 16 - 17 TEST - TA - Alkalinity 18 - 19... -
Página 3: Delivery Content
DELIVERY CONTENT PoolLab 1.0 Light shield AAA Batteries Crushing / Stirring Rods 10ml syringe User guide 20 x Phenol Red Photometer tablets 20 x DPD N° 1 Photometer tablets 10 x DPD N° 3 Photometer tablets 10 x CYA-Test Photometer tablets... -
Página 4: Changing Batteries
BATTERIES • PILES • PILAS BATTERIEN • BATTERIE change chargement cambio wechseln cambiamento 3 x AAA... -
Página 5: Switch On/Off
SWITCH ON • ALLUMER • ENCENDER EINSCHALTEN • ACCENDERE 00:02 ZERO On/Off button can also be used to skip countdown during measurement (not recommended) Le bouton Marche / Arrêt peut être également utilisé pour ignorer le compte à rebours lors de la mesure (non recommandé) El botón de On/Off también se puede utilizar para cancelar la cuenta atrás durante la medición (no se recomienda) Der On/Off Knopf kann auch zum Abbrechen des Countdowns... -
Página 6: General Advices
ADVICES • CONSEILS • CONSEJOS HINWEISE • CONSIGLI Always use PHOTOMETER grade tablets! Never use RAPID grade tablets! Do not touch reagent tablets! Toujours utiliser des pastilles de qualité PHOTOMETRE! Ne jamais utiliser des pastilles de qualité "RAPID" ! PHOTOMETER Ne touchez pas les pastilles avec les mains! ¡Usar siempre tabletas... - Página 7 IMPORTANT • IMPORTANTE • WICHTIG Detergent waterproof (IP68 ) ZERO It is important to clean the device after each measurement to get rid of any reagent residues! Il est important de nettoyer le dispositif après chaque mesure pour éliminer les résidus de réactifs! Es importante limpiar el dispositivo después de cada medición para deshacerse de cualquier residuo de reactivo!
-
Página 8: Zero
ZERO waterproof (IP68 ) ZERO take 10 ml water sample waterproof (IP68 ) 10 ml ZERO ZERO ZERO... - Página 9 Only 1 time per test batch • Une seule fois par lot de test • Sólo una vez por lote de prueba • Nur 1 x pro Testreihe • solo una volta per test in batch Once you performed ZERO, all measurements, like pH, chlorine... can be done one after each other without the need to do a ZERO again.
-
Página 10: Test - Ph
6.50 - 8.40 pH Phenol Red Photometer waterproof (IP68 ) ZERO take 10 ml water sample waterproof (IP68 ) 10 ml ZERO... - Página 11 After / Après / Después de / Nach / Dopo ZERO Phenol Red Photometer completely dissolved ZERO ZERO residue ZERO ZERO...
-
Página 12: Chlorine Chlore Cloro Chlor Cloro
Chlorine Chlore Cloro Chlor Cloro 0.00 - 6.00 mg/l (ppm) DPD N° 1 Photometer DPD N° 3 Photometer waterproof (IP68 ) ZERO take 10 ml water sample waterproof (IP68 ) 10 ml ZERO... - Página 13 After / Après / Después de / Nach / Dopo ZERO Free Chlorine • Chlore libre • Cloro libre Freies Chlor • Cloro libero N° 1 Photometer completely dissolved ZERO ZERO residue ZERO ZERO...
- Página 14 Total Chlorine • Chlore total • Cloro total Gesamt-Chlor • Cloro totale N° 3 Photometer completely dissolved ZERO ZERO residue ZERO ZERO...
- Página 15 Total Chlorine is measured directly after free Chlorine without emptying the cuvette. The DPD 3 tablet is added to the sample water which already contains the DPD 1 tablet (dissolved). Combined Chlorine is calculated as Total Chlorine minus free Chlorine. Le chlore total est mesuré...
-
Página 16: Test - Cya - Cyanuric Acid
Cyanuric Acid Acide cyanurique Ácido cianúrico Cyanursäure Acido Cianurico 0 - 160 mg/l (ppm) CYA-Test Photometer waterproof (IP68 ) ZERO take 10 ml water sample waterproof (IP68 ) 10 ml ZERO... - Página 17 After / Après / Después de / Nach / Dopo ZERO Cyan. Acid • Acide Cyan • Ácido Cian. Cyanursäure • Acido Cianurico CYA-Test Photometer completely dissolved ZERO ZERO residue ZERO ZERO...
-
Página 18: Test - Ta - Alkalinity
Alkalinity Alcalinité Alcalinidad Alkalinität Alcalinità 0 - 300 mg/l (ppm) CaCO Alkalinity-M Photometer waterproof (IP68 ) ZERO take 10 ml water sample waterproof (IP68 ) 10 ml ZERO... - Página 19 After / Après / Después de / Nach / Dopo ZERO Alkalinity • Alcalinité • Alcalinidad Alkalinität • Alcalinità Alkalinity-M Photometer completely dissolved ZERO ZERO residue ZERO ZERO...
-
Página 20: Test - Active Oxygen (Mps)
Active Oxygen Oxygène actif Oxígeno activo Aktivsauerstoff Ossigeno Attivo (MPS) 0.0 - 30.0 mg/l (ppm) DPD N° 4 Photometer* *not part of standard equipment waterproof (IP68 ) ZERO take 10 ml water sample waterproof (IP68 ) 10 ml ZERO... - Página 21 After / Après / Después de / Nach / Dopo ZERO Active Oxygen • Oxygène actif • Oxígeno activo Aktivsauerstoff • Ossigeno Attivo N° 4 Photometer* completely dissolved ZERO ZERO residue ZERO ZERO...
-
Página 22: Test - Chlorine Dioxide
Chlorine Dioxide Dioxyde de Chlore Dióxido de cloro Chlordioxid Biossido di Cloro 0.00 - 11.40 mg/l (ppm) DPD N° 1 Photometer Glycine* *not part of standard equipment waterproof (IP68 ) ZERO take 10 ml water sample waterproof (IP68 ) 10 ml ZERO... - Página 23 After / Après / Después de / Nach / Dopo ZERO Cl.Dioxide • Dioxyde de Cl • Dióxido de Cl Chlordioxid • Biossido di Cl Only if your water sample does contain Chlorine next to Chlorine Dioxide (both disinfectants used), the following procedure "A" needs to be followed and Glycine reagent needs to be used.
- Página 24 After / Après / Después de / Nach / Dopo ZERO Cl.Dioxide • Dioxyde de Cl • Dióxido de Cl Chlordioxid • Biossido di Cl With Chlorine / Avec du Chlore / Con Cloro / Mit Chlor / Con il Cloro Glycine* completely dissolved...
- Página 25 After / Après / Después de / Nach / Dopo ZERO Cl.Dioxide • Dioxyde de Cl • Dióxido de Cl Chlordioxid • Biossido di Cl Without Chlorine / Sans Chlore / Sin Cloro / Ohne Chlor / Senza Cloro DPD N° 1 Photometer completely dissolved...
-
Página 26: Test - Bromine
Bromine Brome Bromo Brom Bromo 0.0 - 13.5 mg/l (ppm) DPD N° 1 Photometer Glycine* *not part of standard equipment waterproof (IP68 ) ZERO take 10 ml water sample waterproof (IP68 ) 10 ml ZERO... - Página 27 After / Après / Después de / Nach / Dopo ZERO Bromine • Brome • Bromo Brom • Bromo Only if your water sample does contain Chlorine next to Bromine (both disinfectants used), the following procedure "A" needs to be followed and Glycine reagent needs to be used.
- Página 28 After / Après / Después de / Nach / Dopo ZERO Bromine • Brome • Bromo Brom • Bromo With Chlorine / Avec du Chlore / Con Cloro / Mit Chlor / Con il Cloro Glycine* completely dissolved ZERO ZERO residue DPD N°...
- Página 29 After / Après / Después de / Nach / Dopo ZERO Bromine • Brome • Bromo Brom • Bromo Without Chlorine / Sans Chlore / Sin Cloro / Ohne Chlor / Senza Cloro DPD N° 1 Photometer completely dissolved ZERO ZERO residue 7 /5...
-
Página 30: Test - Ozone
Ozone Ozono Ozon 0.00 - 4.00 mg/l (ppm) DPD N° 1 Photometer DPD N° 3 Photometer Glycine* *not part of standard equipment waterproof (IP68 ) ZERO take 10 ml water sample waterproof (IP68 ) 10 ml ZERO... - Página 31 After / Après / Después de / Nach / Dopo ZERO Ozone • Ozono • Ozon Only if your water sample does contain Ozone next to Chlorine (both disinfectants used), the following procedure "B" needs to be followed and Glycine reagent needs to be used. Otherwise (only Ozone present), please follow procedure "A".
- Página 32 After / Après / Después de / Nach / Dopo ZERO Ozone • Ozono • Ozon Without Chlorine / Sans Chlore / Sin Cloro / Ohne Chlor / Senza Cloro N°1 & DPD N° (Photometer) completely dissolved ZERO ZERO residue ZERO ZERO...
- Página 33 After / Après / Después de / Nach / Dopo ZERO Ozone • Ozono • Ozon With Chlorine / Avec du Chlore / Con Cloro / Mit Chlor / Con il Cloro N°1 & DPD N° (Photometer) completely dissolved ZERO ZERO residue ZERO...
- Página 34 After / Après / Después de / Nach / Dopo ZERO Ozone • Ozono • Ozon With Chlorine / Avec du Chlore / Con Cloro / Mit Chlor / Con il Cloro 0 ml 0 ml ZERO 10 ml waterproof (IP68 ) 10 ml ZERO...
- Página 35 After / Après / Después de / Nach / Dopo ZERO Ozone • Ozono • Ozon With Chlorine / Avec du Chlore / Con Cloro / Mit Chlor / Con il Cloro N°1 & DPD N° (Photometer) completely dissolved ZERO ZERO residue ZERO...
- Página 36 Hydrogen Peroxide Peroxyde d'Hydrogène Peróxido de Hidrógeno Wasserstoffperoxid Perossido di Idrogeno (LR) 0.00 - 2.90 mg/l (ppm) Hyd. Peroxide LR Photometer* *not part of standard equipment waterproof (IP68 ) ZERO take 10 ml water sample waterproof (IP68 ) 10 ml ZERO...
- Página 37 After / Après / Después de / Nach / Dopo ZERO Hyd. Perox. • Perox. d‘hyd. • Peróx. de Hidr. Wasserstoffperox. • Peross. di Idrog. Hyd. Peroxide LR Photometer* completely dissolved ZERO ZERO residue ZERO ZERO...
- Página 38 Hydrogen Peroxide Peroxyde d'Hydrogène Peróxido de Hidrógeno Wasserstoffperoxid Perossido di Idrogeno (HR) 0 - 200 mg/l (ppm) Hyd. Peroxide HR Phot.* Acidifying PT *not part of standard equipment waterproof (IP68 ) ZERO take 10 ml water sample waterproof (IP68 ) 10 ml ZERO...
- Página 39 After / Après / Después de / Nach / Dopo ZERO Hyd. Perox. • Perox. d‘hyd. • Peróx. de Hidr. Wasserstoffperox. • Peross. di Idrog. Acidifying completely dissolved ZERO ZERO residue Hyd. Peroxide Photometer* completely dissolved ZERO ZERO residue ZERO ZERO...
-
Página 40: Total Hardness Dureté Totale Dureza Total Gesamthärte Durezza Totale
Total Hardness Dureté Totale Dureza Total Gesamthärte Durezza Totale 0 - 500 mg/l (ppm) POL20TH1* POL10TH2* *not part of standard equipment waterproof (IP68 ) ZERO take 10 ml water sample waterproof (IP68 ) 10 ml ZERO... - Página 41 After / Après / Después de / Nach / Dopo ZERO Total Hardn. • Dureté Totale • Dureza Total Gesamthärte • Durezza Totale POL20TH1* POL10TH2* *shake before use! 10 x ZERO ZERO ZERO ZERO...
-
Página 42: Test - Calcium Hardness
Calcium Hardness Dureté Calcique Dureza de Calcio Kalziumhärte Durezza del Calcio 0 - 500 mg/l (ppm) POL20CaH1* POL20CaH2* *not part of standard equipment waterproof (IP68 ) ZERO take 10 ml water sample waterproof (IP68 ) 10 ml ZERO... - Página 43 After / Après / Después de / Nach / Dopo ZERO Calcium Hard. • Dureté Calcique • Dureza de Calcio • Kalziumhärte • Durezza del Calcio POL20CaH1* POL20CaH2* *shake before use! 10 x 10 x ZERO ZERO ZERO ZERO...
- Página 44 After / Après / Después de / Nach / Dopo ZERO Calcium Hard. • Dureté Calcique • Dureza de Calcio • Kalziumhärte • Durezza del Calcio ZERO ZERO ZERO ZERO...
-
Página 45: Hardness Conversion
Hardness Conversion • Conversion de dureté • Conversión de dureza • Härte- Umrechnung • Conversione di durezza CaCO °dH* °e* °f* mg/l (KH) (CH) (DC) 0.056 0.07 1 mg/l CaCO 1 mmol/l K S 4,3... -
Página 46: Or / Ur / Dilution
OR-UR / Dilution • OR-UR / Verdünnung OR-UR / Dilución • OR-UR / Diluzione OR = Overrange / UR = underrange. Test result is outside the range of the method. OR results can be brought into measurement range by dilution. Use syringe to take only 5ml (or 1ml) sample water plus 5ml (9ml) distilled water. -
Página 47: Troubleshooting (Error)
Error codes • Codes d'erreur • Códigos de error • Fehlercodes • codici di errore BAT!: Change batteries • Changer les piles • Cambiar las pilas • Batterien wechseln • Cambiare le batterie Err02: (too dark) Clean measurement chamber or dilute sample •... -
Página 48: Changing Cuvette / Calibration
Changing the cuvette • Changer la cuvette Cambiar la cubeta • Küvettenwechsel cambiando la cuvetta 90° ZERO ZERO 90° ZERO ZERO... -
Página 49: Accessories
20ml POLCaH1 (50 tests) POL20CaH2 20ml POLCaH2 (50 tests) Spare parts • Pièces de rechange • Piezas de repuesto • Ersatzteile • Pezzi di ricambio POLsp-kv Replacement cuvette POLsp-str Plastic stirring/crushing rod POLsp-ls Rubber light shield POLsp-box PoolLab carrying box POLsp-RSK-f Reference standard-kit... -
Página 50: App / Software
Software / App • Logiciels / App Software / Aplicación Bluetooth ON Bluetooth OFF ZERO Windows/ MacOS: www.poollab.org... -
Página 51: Technical Data & Links (Faq, Msds)
Technical data • Données techniques Datos técnicos • Technische Daten Dati tecnici www.poollab.org MSDS msds.water-id.com Cloud labconnect.cloud LED: 530 nm / 570 nm / 620 nm 3 x AAA (1.5 V, LR03) 300 sec. ï 5 - 45°C IP 68 (1 h / 1.2 m) -
Página 52: Tolerances
Tolerances • Tolérances Tolerancias • Toleranzen • Tolleranze Active Oxygen (MPS) • Oxygène actif (MPS) Oxígeno activo (MPS) • Aktivsauerstoff (MPS) Ossigeno Attivo (MPS) Range ± 0.0 - 5.0 0.5 mg/l 5.0 - 15.0 1.3 mg/l 15.0 - 25.0 3.8 mg/l 25.0 - 30.0 5.0 mg/l Alkalinity •... - Página 53 Calcium Hardness • Dureté Calcique Dureza de Calcio • Kalziumhärte Durezza del Calcio Range ± 0 - 25 8 mg/l 25 - 100 22 mg/l 100 - 300 34 mg/l 300 - 500 45 mg/l Chlorine • Chlore • Cloro • Chlor • Cloro Range ±...
- Página 54 Tolerances • Tolérances Tolerancias • Toleranzen • Tolleranze Chlorine Dioxide • Dioxyde de Chlore Dióxido de cloro • Chlordioxid Biossido di Cloro Range ± 0.00 - 2.00 0.19 mg/l 2.00 - 6.00 0.48 mg/l 6.00 - 10.00 1.43 mg/l 10.00 - 11.40 1.90 mg/l Hydrogen Peroxide •...
- Página 55 Ozone • Ozono • Ozon Range ± 0.00 - 1.00 0.07 mg/l 1.00 - 2.00 0.17 mg/l 2.00 - 3.00 0.51 mg/l 3.00 - 4.00 0.68 mg/l Range ± 6.50 - 8.40 0.11 mg/l Total Hardness • Dureté Totale • Dureza Total Gesamthärte •...
-
Página 56: Disposal Of Batteries / Device
The manufacturer of this device, Water-i.d. GmbH, Daimlerstr. 20, D-76344 Eggenstein will dispose of your PoolLab Photometer free of charge (not including costs of sending the device to us). Send your PoolLab for disposal -freight prepaid- to the address shown above. -
Página 57: Ce Compliance Statement
CE compliance statement We, the manufacturer of the PoolLab 1.0 Photometer hereby declare compliance of PoolLab 1.0 Photometer with the essential requirements in accordance to the Directive 2014/53/EU of the European Parliament and of the Council of April 16th, 2014: ETSI EN 300 328 (V2.1.1) - Página 58 FCC Part 15 compliance statement IC licence-exempt RSS compliance statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Página 59 Cet émetteur ne doit pas être co-situé ou fonctionner conjointement avec une autre antenne ou un autre émetteur. Changes or modications not expressly approved by Water-i.d. GmbH could void the user‘s authority to operate the equipment. FCC ID: 2ALRR-POOLLAB10 22610- POOLLAB10 Model: POOL LAB 1.0...
-
Página 60: Certificate Of Compliance
Certificate • Certificat • Certificado Zertifikat • Certificato CERTIFICATE OF COMPLIANCE We hereby certify that the device PoolLab 1.0 With it‘s serial number as stated below, has passed intensive visual and technical checks as part of our QM documentation. We confirm the device got factory calibrated.
