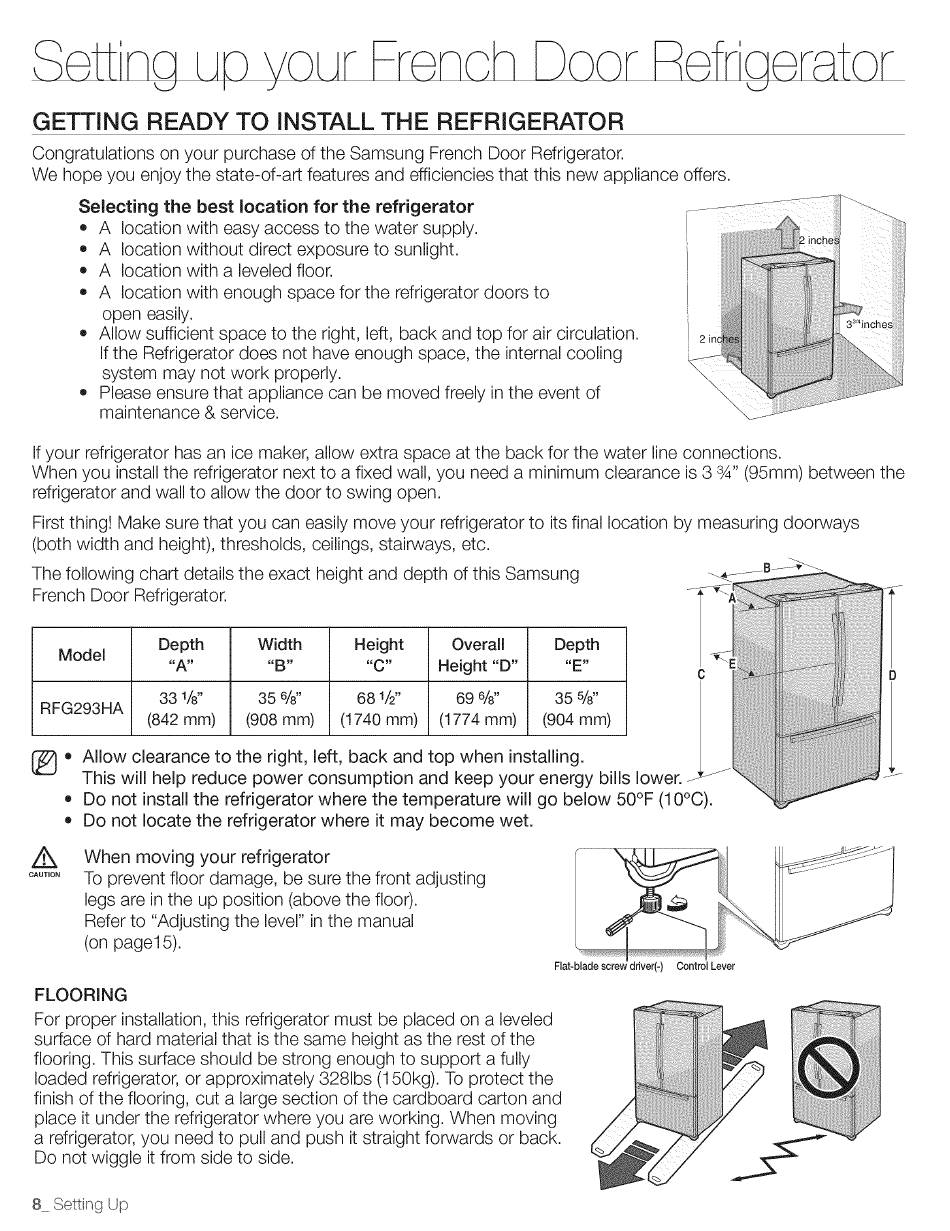

GETTING READY TO INSTALL THE REFRIGERATOR
Congratulations on your purchase of the Samsung French Door Refrigerator.
We hope you enjoy the state-of-art features and efficiencies that this new appliance offers.
Selecting the best location for the refrigerator
, A location with easy access to the water supply.
, A location without direct exposure to sunlight.
, A location with a leveled floor.
, A location with enough space for the refrigerator doors to
open easily.
, Allow sufficient space to the right, left, back and top for air circulation.
If the Refrigerator does not have enough space, the internal cooling
system may not work properly.
, Please ensure that appliance can be moved freely in the event of
maintenance & service.
i 2
If your refrigerator has an ice maker, allow extra space at the back for the water line connections.
When you install the refrigerator next to a fixed wall, you need a minimum clearance is 3 3A" (95mm) between the
refrigerator and wall to allow the door to swing open.
First thing! Make sure that you can easily move your refrigerator to its final location by measuring doorways
(both width and height), thresholds, ceilings, stairways, etc.
The following chart details the exact height and depth of this Samsung
French Door Refrigerator.
Model Depth Width Height Overall Depth
"A .... B .... C" Height "D .... E"
'-'" 1/ " "" 6/, " "" 1/ " ""_ 6/, " "" 5/, "
RF-2--HA ,_,_ /8 ,Jo _8 oo /2 o_ _8 ,Jo y8
{._ HU
(842 mm) (908 mm) (1740 mm) (1774 mm) (904 mm)
_ • Allow clearance to the right, left, back and top when installing.
_ This will help reduce power consumption and keep your energy bills
o
c
lower.
Do not install the refrigerator where the temperature will go below 50°F (10°C).
Do not locate the refrigerator where it may become wet.
CAUTION
When moving your refrigerator
To prevent floor damage, be sure the front adjusting
legs are in the up position (above the floor).
Refer to "Adjusting the level" in the manual
(on page15).
Flat-blade screw dnver(-) Control Lever
FLOORING
For proper installation, this refrigerator must be placed on a leveled
surface of hard material that is the same height as the rest of the
flooring. This surface should be strong enough to support a fully
loaded refrigerator, or approximately 3281bs (150kg). To protect the
finish of the flooring, cut a large section of the cardboard carton and
place it under the refrigerator where you are working. When moving
a refrigerator, you need to pull and push it straight forwards or back.
Do not wiggle it from side to side.
8 Settiqg Up
