COMPACT 1.4

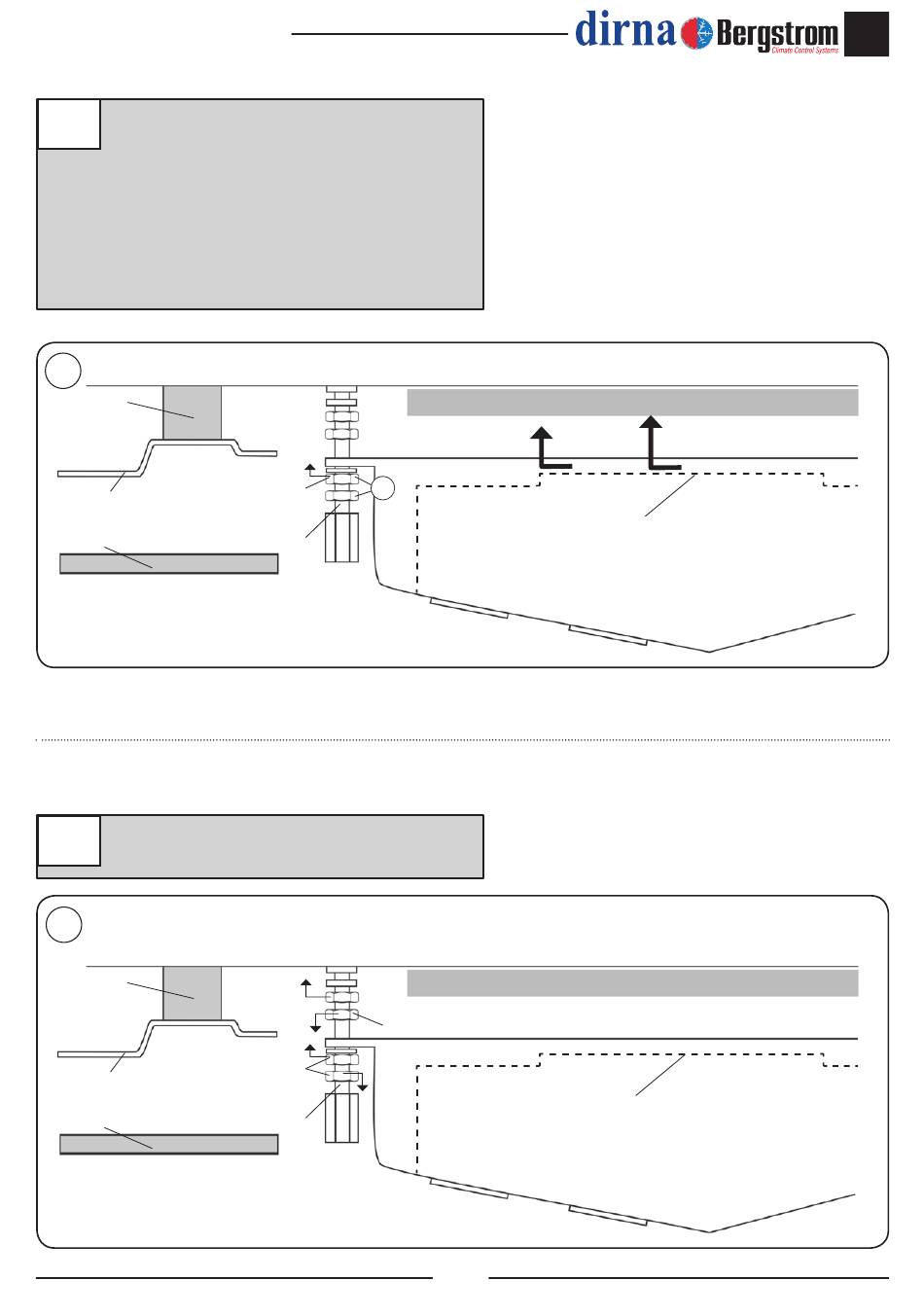

Position the interior air distribution panel
12
on the front studs with (1) M6 wide-rimmed
washer and (1) M6 nut on each stud. Tighten
the nuts until the foam duct piece comes up
against the unit's upper foam.
Important: The foam duct piece must come
up against the unit's upper foam in order to
prevent any leakages of air.
12
EPDM
Gasket
Cabin roof
Upholstey
Tighten nut mentioned under point 10 until it
13
touches upper surface of front.
13
EPDM
Gasket
Cabin roof
Upholstey
Unit base
*
Nut M6
Stud M6
Unit base
Nut M6 (point 10)
Nut M6
Stud M6
Air conditioning for vehicles
Rubber ductings
Rubber ductings
23
EN
Foam
Interior air distribution
panel
Foam
Interior air distribution
panel
