Installation Guide

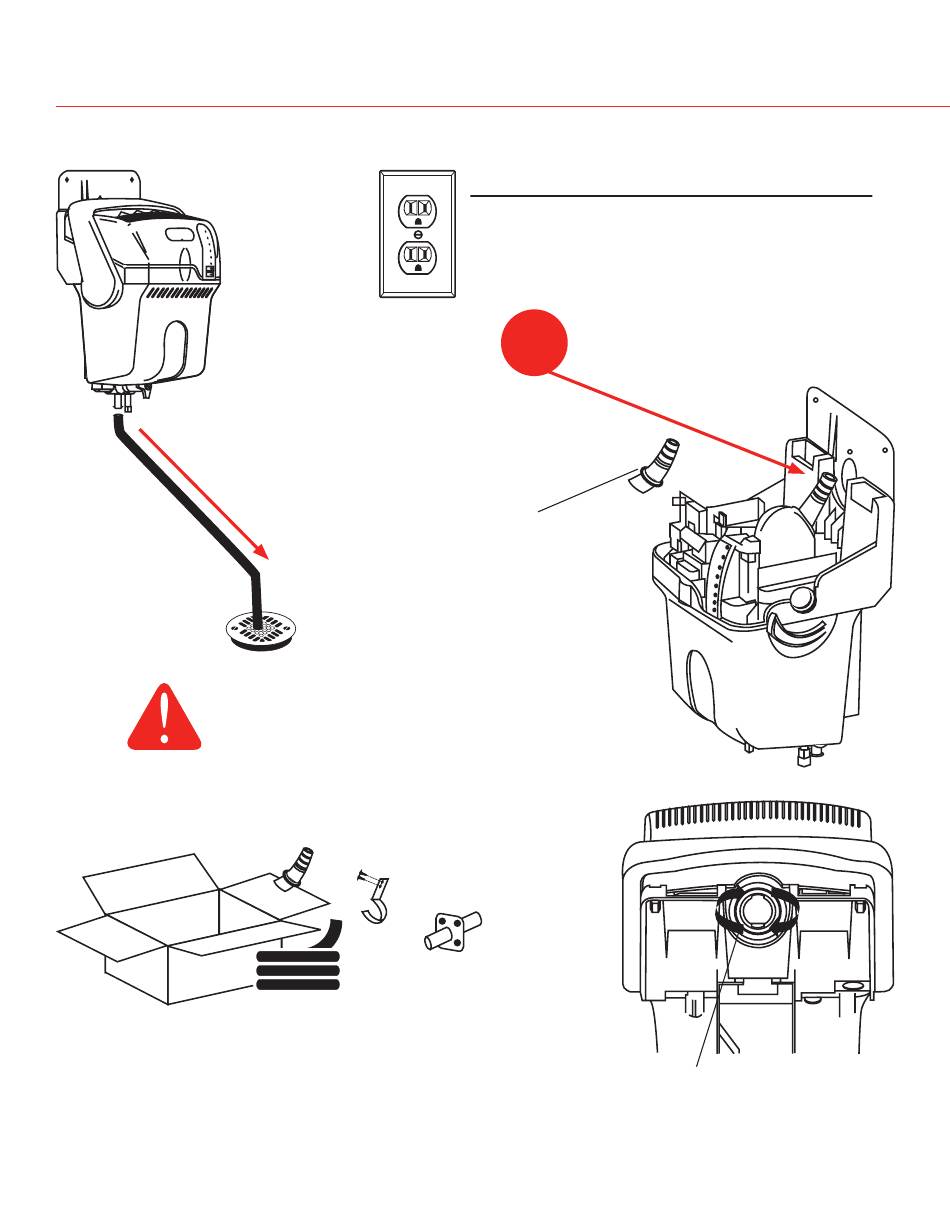

RemoTe mounT InsTallaTIon
Draining water
may be hot.
Ensure drain out-
let not exposed.
CAUTION
Hot water temperature above 120°F (49°C)
can cause burns from scalding.
Remote Mount Kit
(sold separately)
• 50024917-001 = Ten Foot Hose Kit
• 50024917-002 = Twenty Foot Hose Kit
69-2036EFS—07
M24745
Ensure o-ring gasket is
properly seated in the
Continuous
groove.
downflow
M24744
Hose Adapter
Hose Clamps
Remote Hose
Model Minimum Circuit Capacity
HM506 7 Amps
HM509 10 Amps
HM512 12 Amps
Install hose adapter from Remote
2
Mount Kit.
Duct Nozzle
M24765
Insert hose adapter and twist
clockwise to ensure tight seal
of nozzle to TrueSTEAM.
0
M24764
M24894
