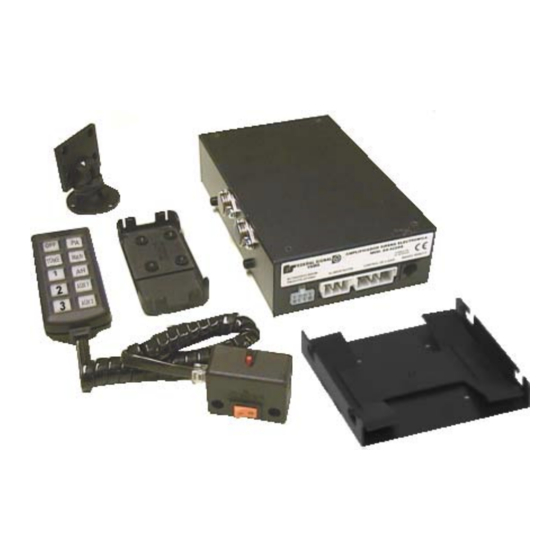

ELECTRONIC SIREN CONTROLLER
SIRENA ELECTRONICA
SIRÈNE ELECTRONIQUE
AS-422/6S FS
AS-422/6S FS
AS-422/6S FS
AS-422/6S FS
AS-422/6S FS
FEDERAL SIGNAL VAMA, S.A.
C/Dr.Ferrán,7(08339)VILASSAR DE DALT - SPAIN
www.fedsig.vama.es
In USA Contact:
Federal Signal Corporation Service and Technical Assistance
1-800-433-9132
www.fedsig.com
PN 650001
Publicidad
Manuales relacionados para Federal Signal VAMA AS-422/6S FS
Resumen de contenidos para Federal Signal VAMA AS-422/6S FS
- Página 1 ELECTRONIC SIREN CONTROLLER SIRENA ELECTRONICA SIRÈNE ELECTRONIQUE AS-422/6S FS AS-422/6S FS AS-422/6S FS AS-422/6S FS AS-422/6S FS PN 650001 FEDERAL SIGNAL VAMA, S.A. C/Dr.Ferrán,7(08339)VILASSAR DE DALT - SPAIN www.fedsig.vama.es In USA Contact: Federal Signal Corporation Service and Technical Assistance 1-800-433-9132 www.fedsig.com...
- Página 2 MOD. AS-422/6S FS ( 100W/12V ) INSTALLATION AND OPERATING INSTRUCTIONS INSTRUCCIONES DE INSTALACION Y FUNCIONAMIENTO INSTRUCTIONS POUR INSTALLATION ET FONCTIONNEMENT CONTENTS CONTENIDO AS-422/6S FS CONTENU Ref. PN 650001 Ref. Z8615011 ref. Z8615019 ref. 1612339 ref. 9147878 ref. Z8615013 ref. 91471146 ref.
- Página 3 SAFETY MESSAGE TO INSTALLERS People’s lives depend on your safe installation of our products. It is important to read, understand and follow all instructions shipped with this product and the related add-on products. In addition, listed below are some other important safety instructions and precautions you should follow: •To properly install this product: you must have a good understanding of automotive electrical procedures and systems, along with proficiency in the installation and use of safety warning equipment.
- Página 4 SPECIFICATIONS ESPECIFICACIONES CARACTERISTIQUES 12 V DC 100 W ( -30º C / +60º C 10 A max. ( f: 725 - 1550 Hz WAIL 12 c/min. PRIORITY 1000 c/min. 60 V pp 8 Relay / Relés / Relais NECESSARY MATERIAL FOR THE INSTALLATION. ( NOT SUPPLIED ) MATERIAL NECESARIO PARA LA INSTALACIÓN.
- Página 5 INSTALLATION OF THE CONTROL HEAD OK OK OK OK INSTALACIÓN DEL MODULO DE CONTROL INSTALLATION DU MODULE DE CONTRÔLE (Ref:Z8615017) (Ref:Z8615017) (Ref:Z8615017) (Ref:Z8615017)
- Página 6 INSTALLING THE CONNECTION BOX INSTALACIÓN DE LA CAJA DE CONEXIONADO INSTALLATION DE LA BOÎTE DE CONNEXION (Ref:Z8615014)
- Página 7 OK OK OK OK INSTALLATION OF THE AMPLIFIER (AUTOMOBILE) INSTALACIÓN DEL AMPLIFICADOR (AUTOMOVIL) INSTALLATION DE L´AMPLIFICATEUR (AUTOMOBILE) SEE PAGE. 2 VER PAG. 2 VOIR PAGE. 2 3 mm 5 mm...
-
Página 8: Wiring Diagram
INSTALLATION OF THE LIGHT SYSTEM OR AUXILIARY FUNCTIONS Standard configuration WIRING DIAGRAM AMPLIFIER LIGHT SYSTEM OUTLET CONTROL AS-422/6S FS (PN 650001) HEAD KEY Max. 10 A. 15 A WARNING LIGHT/SIREN Max. 10 A. (Level 3) 15 A Max. 10 A. - Página 10 USE OF THE CONTROL HEAD USO DEL MODULO DE CONTROL UTILISATION DU BOÎTIER DE CONTRÔLE CONTROL HEAD MICROPHONE PUBLIC ADDRESS MANUAL SIREN TONES AIR HORN WARNING LIGHT (LEVEL 1) AUXILIARY LIGHT 1 (ALLEYS) WARNING LIGHT (LEVEL 2) WARNING LIGHT (LEVEL 3) AUXILIARY LIGHT 2 CONNECTION BOX PA VOLUME CONTROL...
- Página 11 OPERATING INSTRUCTIONS USO DE LA SIRENA FONCTIONNEMENT DE LA SIRENE KEEP BUTTON PRESSED MANTENER PULSADO (ON-OFF) MAINTENIR APPUYÉ DEACTIVATES ALL FUNCTIONS DESACTIVA TODAS LAS FUNCIONES DÉBRANCHE TOUTES LES FONCTIONS TONE (ON) WAIL PRIORITY (F=725-1550Hz 12c/min.) (F=725-1550Hz 1000c/min.) TONE (ON) WAIL (F=725-1550Hz 12c/min.) F=1550Hz F=725Hz...
- Página 12 WARNING LIGHT (LEVEL 1) AIR HORN LUCES PRIORITARIAS (NIVEL 1) AIR HORN AIR HORN FEUX PRIORITAIRES (LEVEL 1) GB KEEP BUTTON PRESSED MANTENER PULSADO 1 1 1 1 1 MAINTENIR APPUYÉ (ON-OFF) (ON-OFF) AIRHORN AUXILIARY LIGHT 1 (ALLEYS) WARNING LIGHT (LEVEL 2) FOCOS AUXILIARES 1 (ALLEYS) LUCES PRIORITARIAS (NIVEL 2) FEUX AUXILIAIRES 1 (ALLEYS)
- Página 13 SIREN CONTROL BY HORN CONTRÔLE DE LA SIRÈNE PAR LE KLAXON CONTROL DE LA SIRENA POR CLAXON AIRHORN WAIL PRIORITY (F=725-1550Hz 12c/min.) (F=725-1550Hz 1000c/min.) PIECES DE RECHANGE SPARE PARTS RECAMBIOS ref. Z8615011 ref. Z8615019 Ref. Z8615013 Ref. Z8615016 Ref. Z8615012 Ref.
