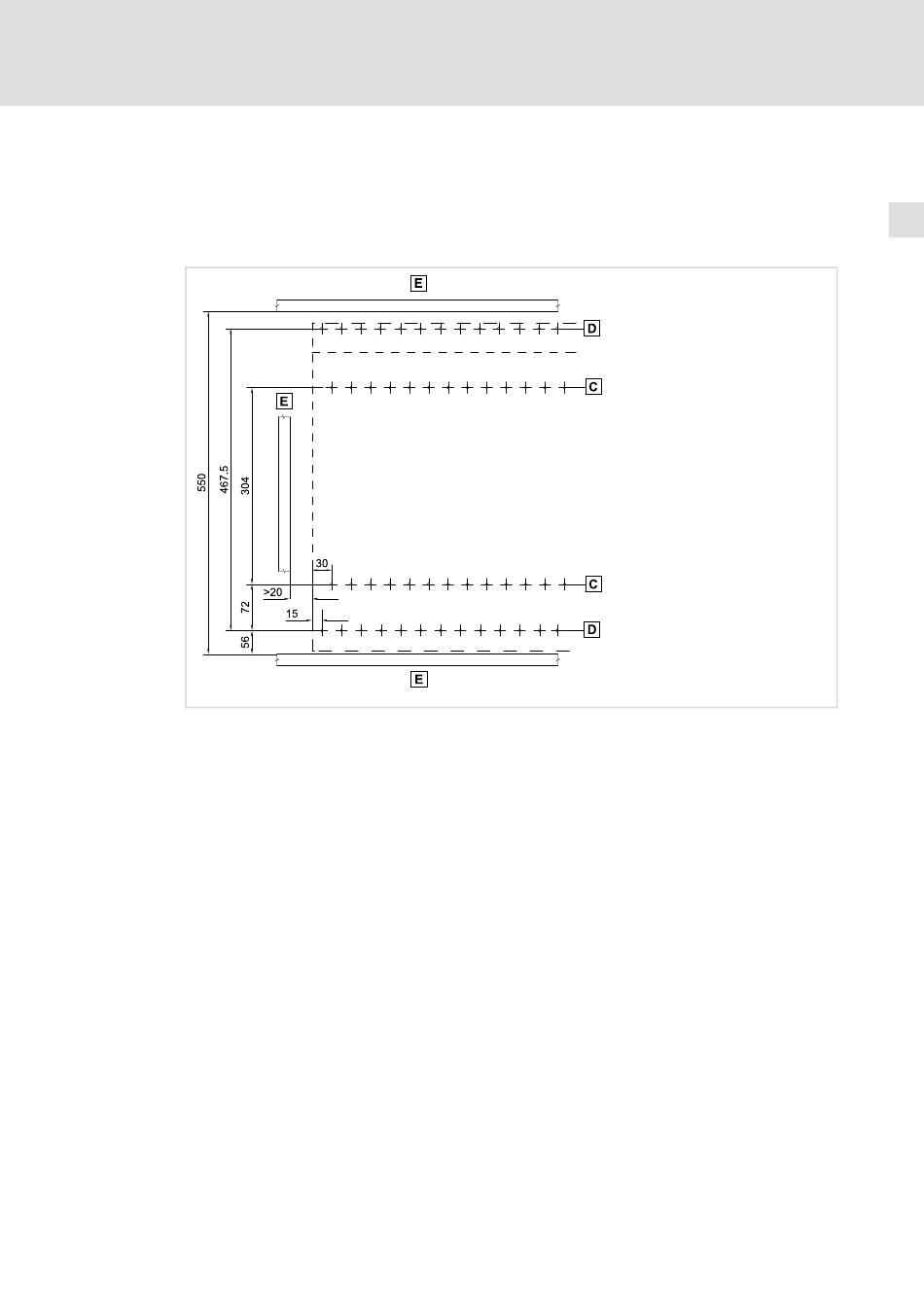

General mounting grid for 9400 system

We recommend to provide the mounting plate with a grid pattern of M5 threaded holes
for attaching the devices. This preparation enables easy attachment of the devices, and the
device sizes 1, 2, ... n can thus be mounted directly adjacent to each other.
All dimensions in millimetres.
EDK94ZMR47XDB DE/EN/FR/ES/IT 4.0
2
Hole pattern for installation backplane (device sizes 1 to 3)
3
Hole pattern for other device sizes or filters mounted side−by−side or below (only Single Drive)
4
Cable duct
l
Mechanical installation
General mounting grid for 9400 system
5
SSP94NF311
43
