G e n e r a l i n f o r m a t i o n :

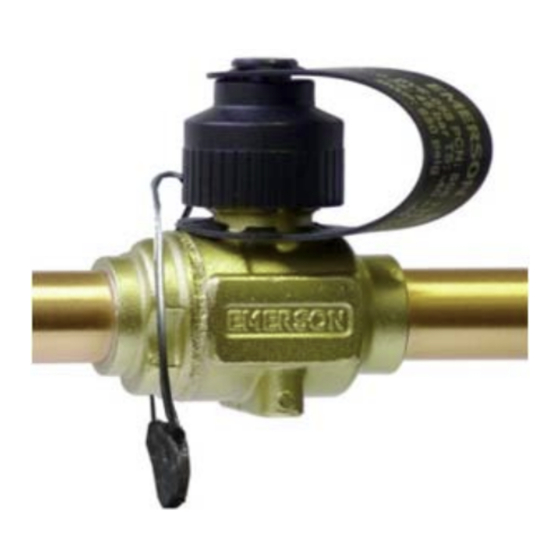

The BVE/BVS series of Bi-directional Ball valves are
designed for general use in isolating suction, discharge
and liquid line pipe-work during maintenance
shutdown periods.
S a f e t y i n s t r u c t i o n s :
• Read installation instructions
Failure to comply can result in device failure,
system damage or personal injury.
• It is intended for use by persons having the
appropriate knowledge and skill.
• Before attempting to install the valve, make sure
pressure in system is brought to and remains at
atmospheric pressure.
• Do not release any refrigerant into the
atmosphere.
• Do not use any other fluid media without prior
approval of Emerson. Use of fluid not listed
could result in change of hazard category of
product and consequently change of conformity
assessment requirement
accordance with European pressure equipment
directive 97/23/EC.
• The attached strap (Fig. 3) contains important
valve data. Do not remove because of warranty
and traceability reasons.
• Do not connect on BVS Schrader connection any
safety pressure switches or other control devices
M o u n t i n g l o c a t i o n :
• The BVE/BVS valve may be installed in any
position which allows access to remove the stem
cap. The valves are bi-directional.
• Locate the BVE/BVS as close as possible to the
section of pipe-work to be isolated. This will reduce
the amount of refrigerant to be recovered during
future maintenance of the system.
I n s t a l l a t i o n :
• Do not remove seal caps until ready for installation.
The seal caps should be removed with care to avoid
damaging the connections.
• For BVS version do not mount schrader valve and
cap before brazing.
• For panel mounting see dimension of holes in Fig. 4.
T e c h n i c a l D a t a :
Type:
Connection, DN
Max. working pressure PS
Medium temperature TS
Fluid group acc. PED
Refrigerant:
Material
Hazard category: PED 97/23/EC
Marking
Emerson Climate Technologies GmbH
Holzhauser Str. 180 I 13509 Berlin I Germany
Ball Valves Series BVE / BVS
B r a z i n g :
Warning:
Ensure valve is in the fully open position before
brazing (see Fig. 2a). Failure to do so could cause
damage to internal components.
• Perform and consider the brazing joint as per
EN 14324.
• Before and after brazing clean tubing and brazing
thoroughly.
joints.
• Minimize vibrations in the piping lines by appropriate
solutions.
• To avoid oxidization, it is advised to purge the system
with an inert gas such as nitrogen while brazing.
• Do not exceed the max. body temperature of 120
°C!
• To avoid overheating it is advised to make the joint at
one end cool the device completely before repeating
the procedure on the other end connection.
• For BVS version install schraeder valve and
schraeder valve cap after cooling down of the ball
valve.
for product in
P r e s s u r e T e s t :
After completion of installation, a pressure test must
be carried out as follows:
̵ according to EN 378 for systems which must
comply with European pressure equipment
directive 97/23/EC.
̵ to maximum working pressure of system for other
applications.
Warning:
• Failure to do so could result in loss of refrigerant
and personal injury.
• The pressure test must be conducted by skilled
persons with due respect regarding the danger
related to pressure.
T i g h t n e s s T e s t :
Conduct a tightness test according to EN 378-2 with
appropriate equipment and method to identify
leakages of external joints. The allowable leakage rate
must be
specification.
BVE- / BVS-...  28 mm
1/4" (6 mm) ... 1-1/8" (28 mm)
UL 207 ,
www.emersonclimate.eu
Operating instruction
according system manufacturer's
–40°C ... +120°C (short term +150° C) / –40°F ... +250°F (short term +300° F)
HCFC, HFC, CO
not applicable
pending
Date: 09.02.2015
O p e r a t i o n :
• The Valve has a built-in stop for the stem and
opening/closing of the valve is clearly indicated as
shown in Fig. 3. Open Valve is shown in Fig. 2a and
closed valve in Fig. 2b.
Note: Never leave the ball position as shown in
Fig. 2c otherwise seat leakage can occur.
• To avoid operation by unauthorized person's valve
can be equipped with a sealable cap which is
available as accessory (see Fig. 5).
• The plastic cap is equipped with an O-Ring. Do not
use any tool to mount the cap. Cap must be closed
hand tight only.
Warning:
If the valve is installed in hot gas discharge line, the
valve has hot
operation of system or short after off-cycle.
D e s i g n c o n s i d e r a t i o n :
• The Design pressure marked on this component
shall not be less than the installed system working
pressure or less than the values outlined in
ANSI/ASHARE 15 for the charges refrigerant.
After charging mark the installed equipment with
the refrigerant type and Oil used.
• For use with HFC and HCFC refrigerant listed in
CAN/CSA B52,
ANSI/ASHARE 15 SEC. 9.2,where the saturation
pressure at 125°F (High side) and 80°F (Low side)
is less than the maximum design working Pressure.
After charging mark unit with refrigerant type and
oil type.
S e r v i c e / M a i n t e n a n c e :
• Before starting repair work the internal R744
pressure has to be reduced gradually to atmospheric
(not more than 1 bar/min).
BVE- / BVS-...> 32 mm
1-3/8" (35mm) ... 3-1/8" (79.4 mm)
45 bar / 650 psig
II
(ASHRAE Standard 34: A1, A2)
2
CW617N
, UL 207,
BVE(S)_OI_ML_R10_864091.docx
surface temperature during
ANSI/ASHARE 34 and
I
pending
