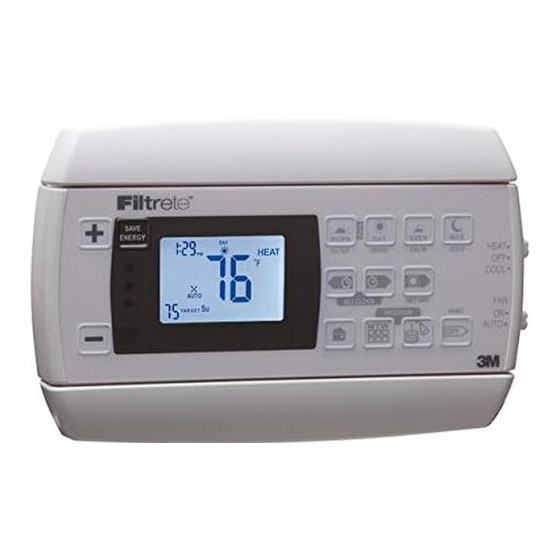

Filtrete 3M-22 Manual De Instrucciones

Install Guide 3M-22
Caution
• Your thermostat is a precise instrument, handle it with care.
• Turn off electricity to the HVAC system before installing or
servicing thermostat or any part of the system.
• Do not turn electricity back on until work is completed.
• Do not short (jumper) across electric terminals at the control
on the furnace or air conditioner to test the system. This may
damage the thermostat.
• All wiring must conform to local codes and ordinances.
• This thermostat is designed for use with 3 AA alkaline batteries
and/or 24VAC C wire (or a 12-24 AC or DC source) and millivolt
gas systems. Each thermostat relay load should be limited to 1.0
amp; higher amperage may cause damage to the thermostat.
Caution
to prevent damage to the furnace, air conditioner, and
disconnect the power supply
thermostat,
beginning work. This can be done at the circuit breaker.
1005-005-001
To avoid electrical shock and
before
top cover
Reset
button
HVAC
selections
switches
Save
Energy
button
Power Grid
status
indicator
Target
Temperature
bottom
cover
Room
Temperature
1
PG
Wire
terminals
Mode
switch
Fan
switch
Programing
buttons
ENGLISH
