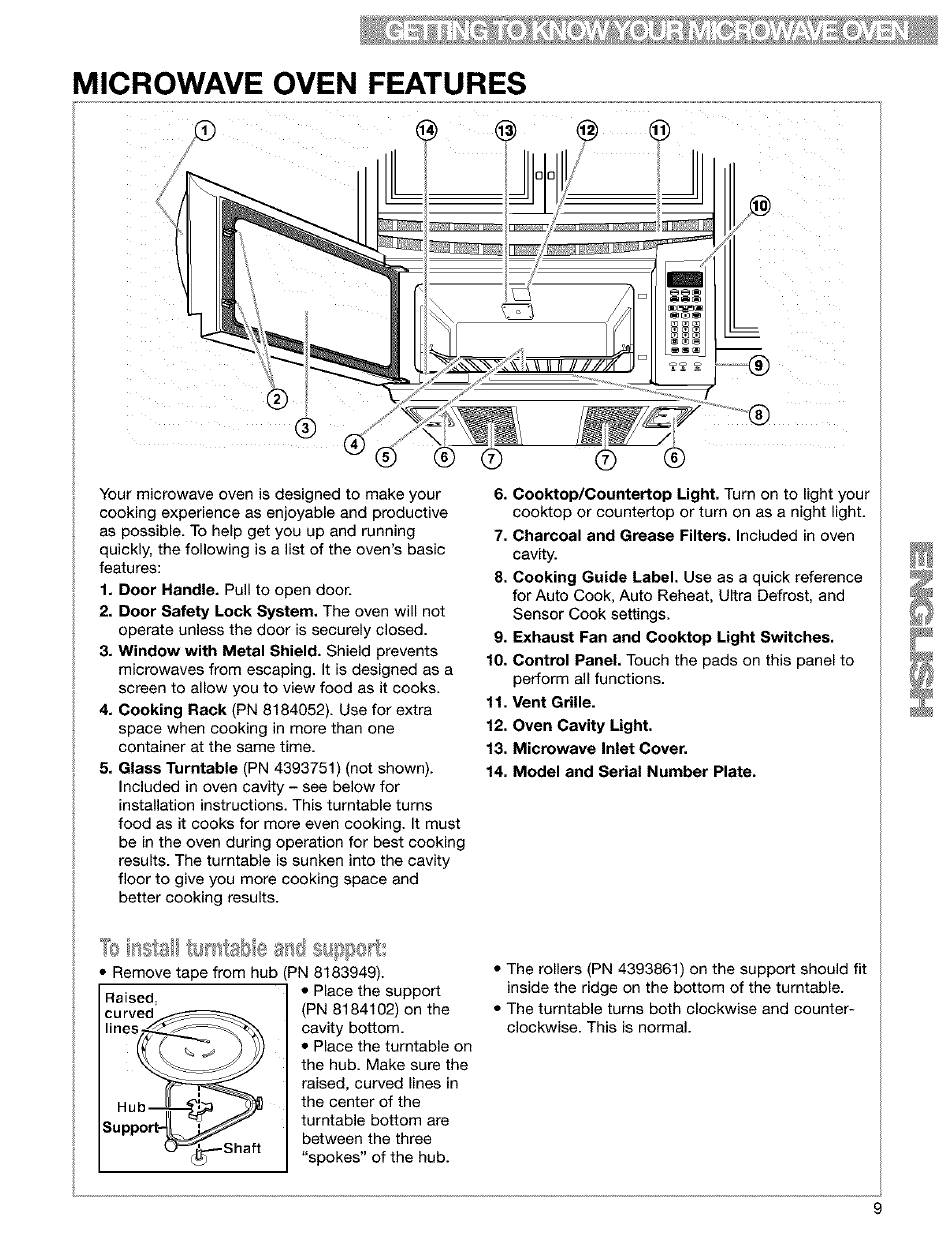

MICROWAVE OVEN FEATURES
®
@
Your microwave oven is designed to make your
cooking experience as enjoyable and productive
as possible. To help get you up and running
quickly, the following is a list of the oven's basic
features:
1. Door Handle. Pull to open door.
2. Door Safety Lock System. The oven will not
operate unless the door is securely closed.
3. Window
with Metal Shield. Shield prevents
microwaves from escaping. It is designed as a
screen to allow you to view food as it cooks.
4. Cooking
Rack (PN 8184052). Use for extra
space when cooking in more than one
container at the same time.
5. Glass Turntable
(PN 4393751) (not shown).
Included in oven cavity - see below for
installation instructions. This turntable turns
food as it cooks for more even cooking. It must
be in the oven during operation for best cooking
results. The turntable is sunken into the cavity
floor to give you more cooking space and
better cooking results.
®
6. Cooktop/Countertop
Light. Turn on to light your
cooktop or countertop or turn on as a night light.
7. Charcoal
and Grease Filters. Included in oven
cavity.
8. Cooking
Guide Label. Use as a quick reference
for Auto Cook, Auto Reheat, Ultra Defrost, and
Sensor Cook settings.
g. Exhaust Fan and Cooktop
Light Switches.
10. Control
Panel. Touch the pads on this panel to
perform all functions.
11. Vent Grille.
12. Oven Cavity Light.
13. Microwave Inlet Cover.
14. Model and Serial Number Plate.
• Remove tape from hub
_N 8183949).
Raised,
• Place the support
cul
(PN 8184102) on the
lin_
cavity bottom.
• Place the turntable on
the hub. Make sure the
raised, curved lines in
the center of the
turntable bottom are
between the three
"spokes" of the hub.
• The rollers (PN 4393861) on the support should fit
inside the ridge on the bottom of the turntable.
• The turntable turns both clockwise and counter-
clockwise. This is normal.
