IS-TV040928 27" HD-Ready TV
C
ONNECTING AN OUTDOOR

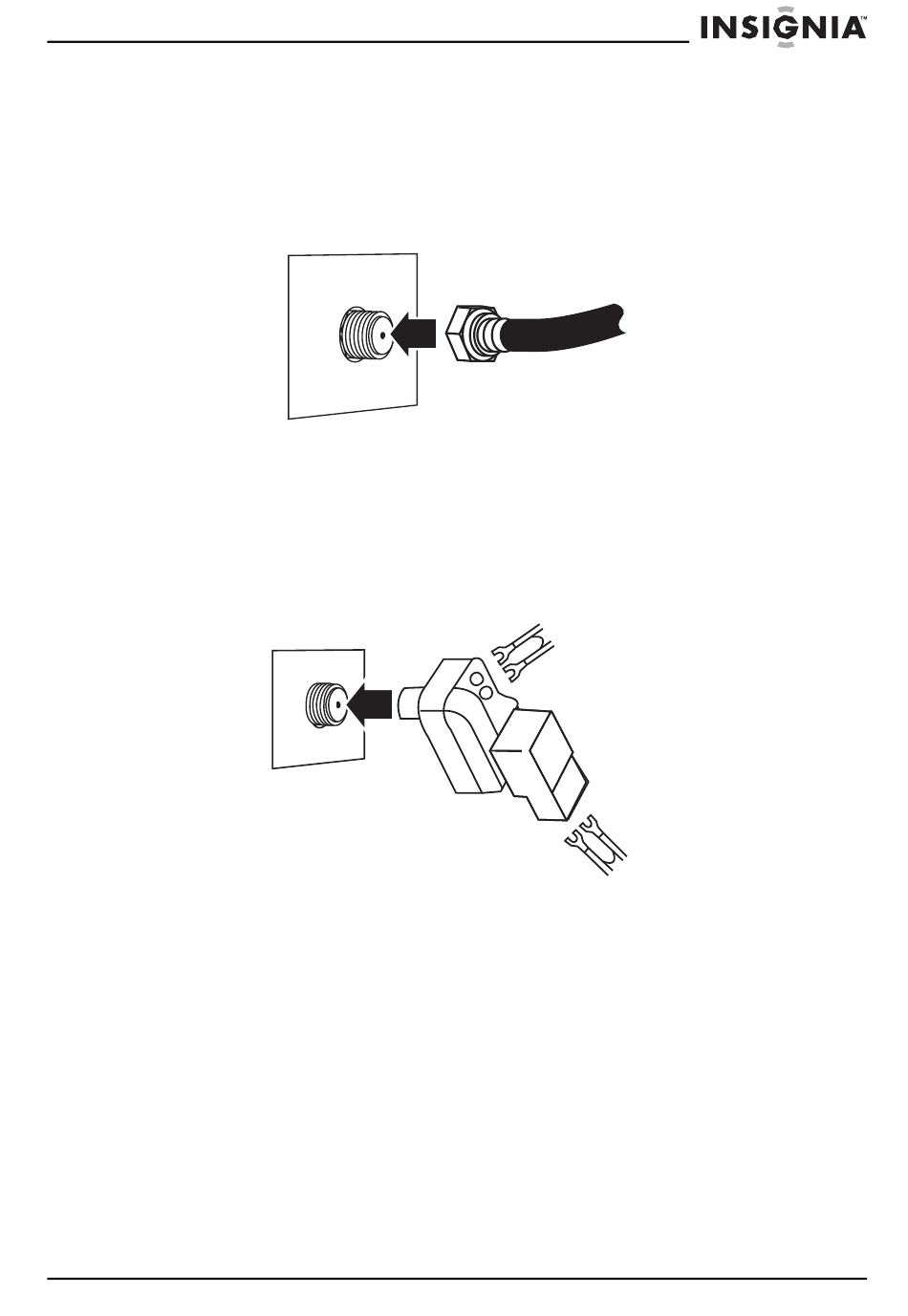

To connect an outdoor VHF/UHF antenna with a single 75 Ω cable or
300 Ω twin-lead wire:
Connect the 75 Ω cable from a combination VHF/UHF antenna to
•
the antenna jack.
Or
If your combination antenna has a 300 Ω twin-lead wire, use a
300-75 Ω matching transformer (not included).
To connect an outdoor VHF/UHF antenna with separate VHF and UHF
300 Ω twin-leads:
1 Connect the UHF twin-lead wire to a combiner (not supplied).
2 Connect the VHF twin-lead to a 300-75 Ω matching transformer
(not supplied).
3 Attach the transformer to the combiner.
4 Attach the combiner to the antenna jack.
VHF/UHF
ANTENNA
Combiner
VHF 300
