7.2.2.11
Figure 7-6
7.2.2.12
Figure 7-7
7.2.2.13
Actuator Assembly.
Figure 7-8
101625591

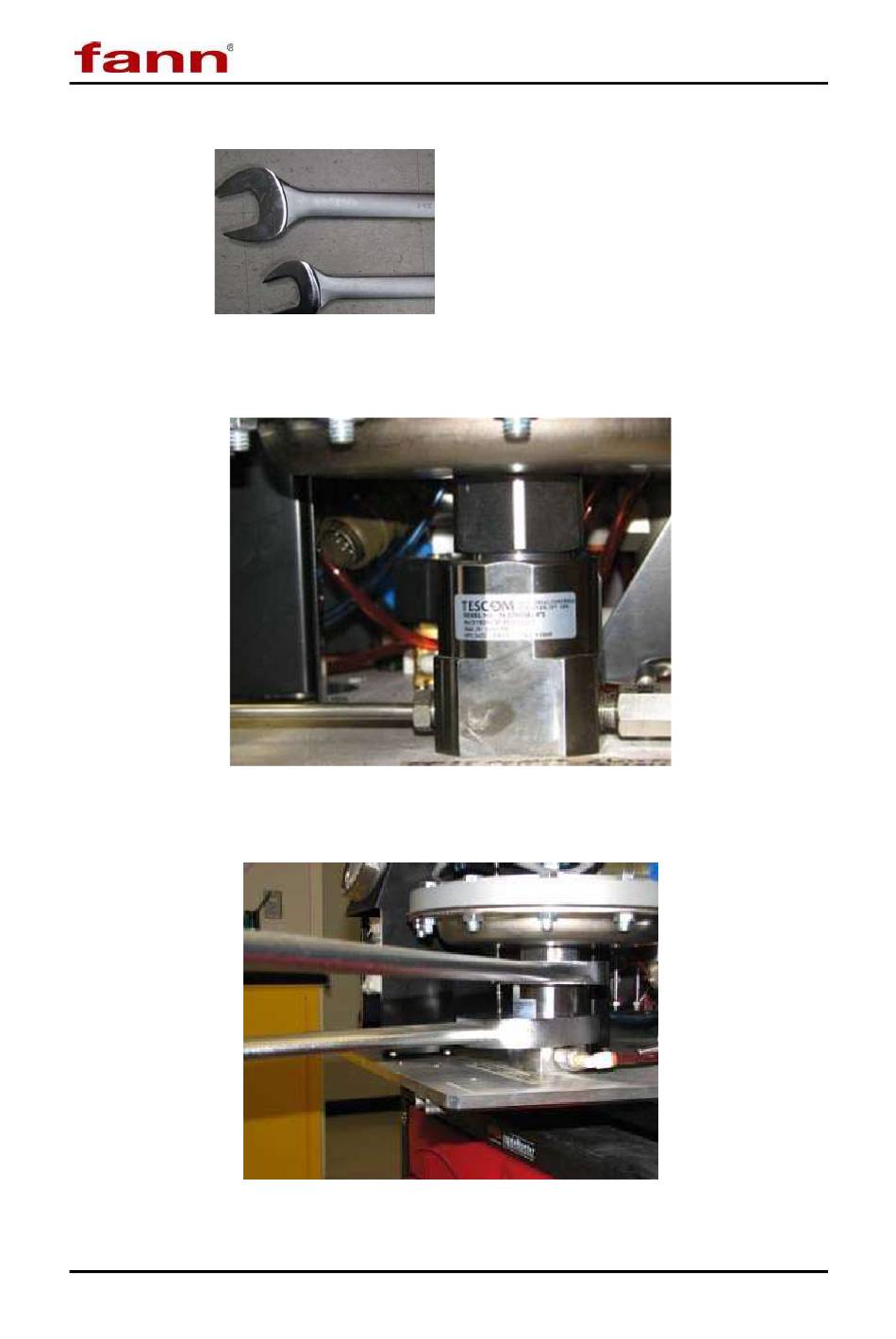

Use the 2 and 2-1/2 inch wrench for valve disassembly.
Wrenches for Valve Disassembly
Ensure there is ample clearance to use the wrenches.
Clearance in the Disassembling Area
Loosen the right hand threaded Body Assembly from the Air
Body Assembly/Air Actuator Assembly
