Calex PyroMini Serie Guía Del Operario página 13

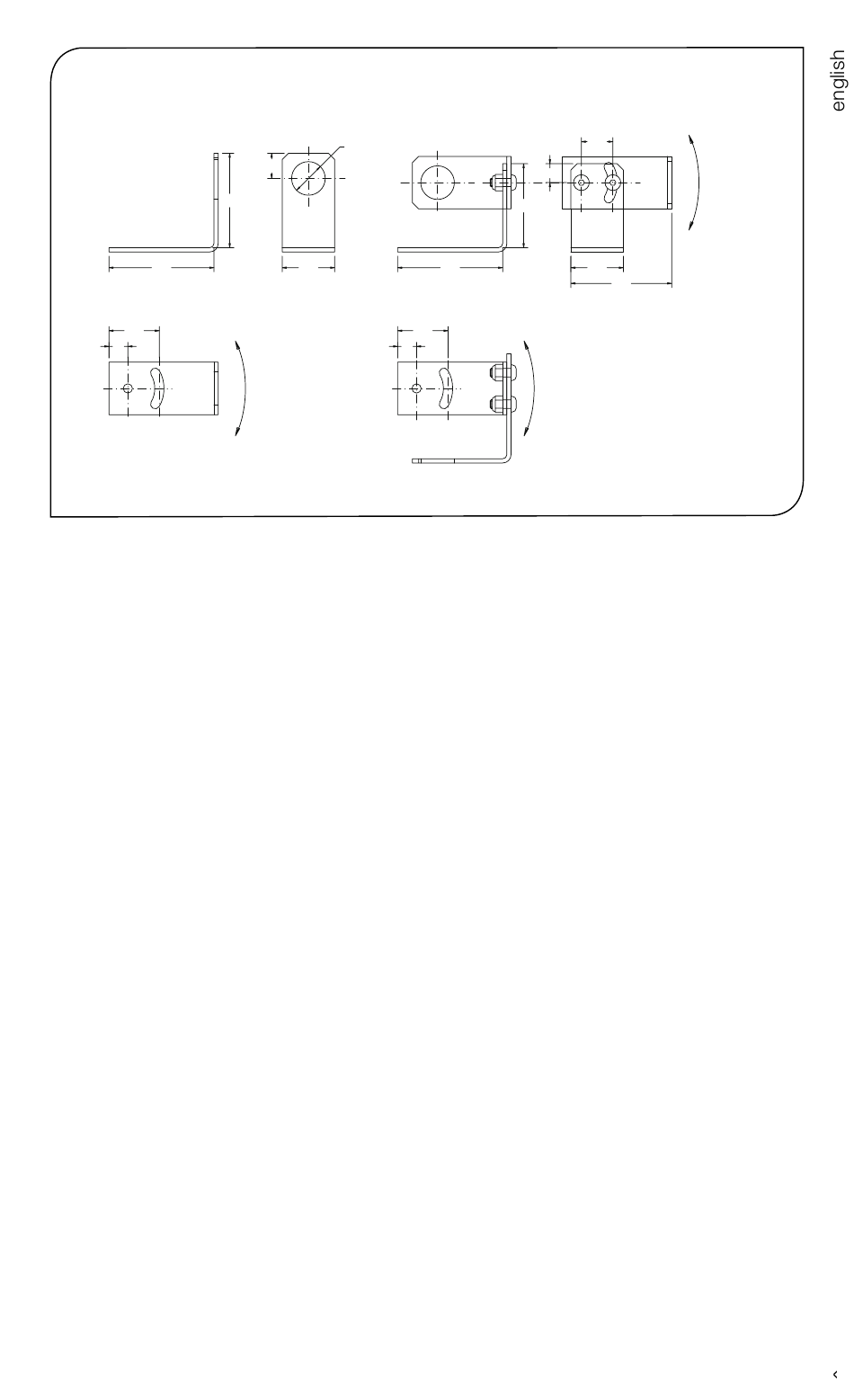

Fixed Mounting Bracket (FBS)
50
2 x Mounting Holes M4 Clearance
24
9
ACCESSORIES
A range of accessories to suit different applications and industrial environments is available. These
may be ordered at any time and added on-site. The following accessories are available from Calex:
Fixed mounting bracket (see above for dimensions): Allows rotational adjustment in one
dimension. Model number: FBS.
Adjustable mounting bracket (see above for dimensions): Allows rotational adjustment in two
dimensions. Model number: ABS.
Air purge collar (see above for dimensions): The air purge collar is used to keep dust, fumes,
moisture, and other contaminants away from the lens. It must be screwed fully onto the
sensing head. Air flows into the 1/8" BSP fitting and out of the front aperture. Air flow should
be 5 to 15 l/min. Clean or 'instrument' air is recommended. Model APSW is for use with
sensors with 2:1 optics. Model APSN is for use with all other PyroMini models.
Laser sighting tool: When fitted to the sensor during installation or re-alignment, the laser
sighting tool pinpoints the centre of the measured spot. Model number: LSTS.
MicroSD Card: Stores logged data. For use with -BRT and -CRT models. Includes SD Card
adapter. Model number: MSD.
Protective plastic or silicon windows: Helps protect the lens from mechanical or chemical
damage. Quick and easy to replace. Model number: PWS / SIWS.
Dual laser sighting bracket: Allows continuous laser sighting at the same time as using the
sensor. Model number: DLSBFS (fixed), DLSBAS (adjustable)
6-sensor touch screen hub (-BB and -BRT models): Multi-channel temperature display,
configuration and logging for up to 6 Modbus sensors. Model number: PM180
OPTIONS
The following options are available. Options are factory installed and must be ordered with the
sensor.
Calibration Certificate: UKAS traceable certificate showing the measured temperature at
three points across the sensor's temperature range. Model number: CALCERTA.
Extended Cable (30 m maximum total cable length): 1 m cable is supplied with each sensor
as standard. Extra cable can be added to this in increments of 1 m. Model number: PMCE
(-MA models), PMCEHT (-HA models).
M16 Clearance
10
40
25
60° Rotation
Adjustable Mounting Bracket (ABS)
9
40
50
2 x Mounting Holes M4 Clearance
24
9
60° Rotation
15
60° Rotation
25
48
1 3
