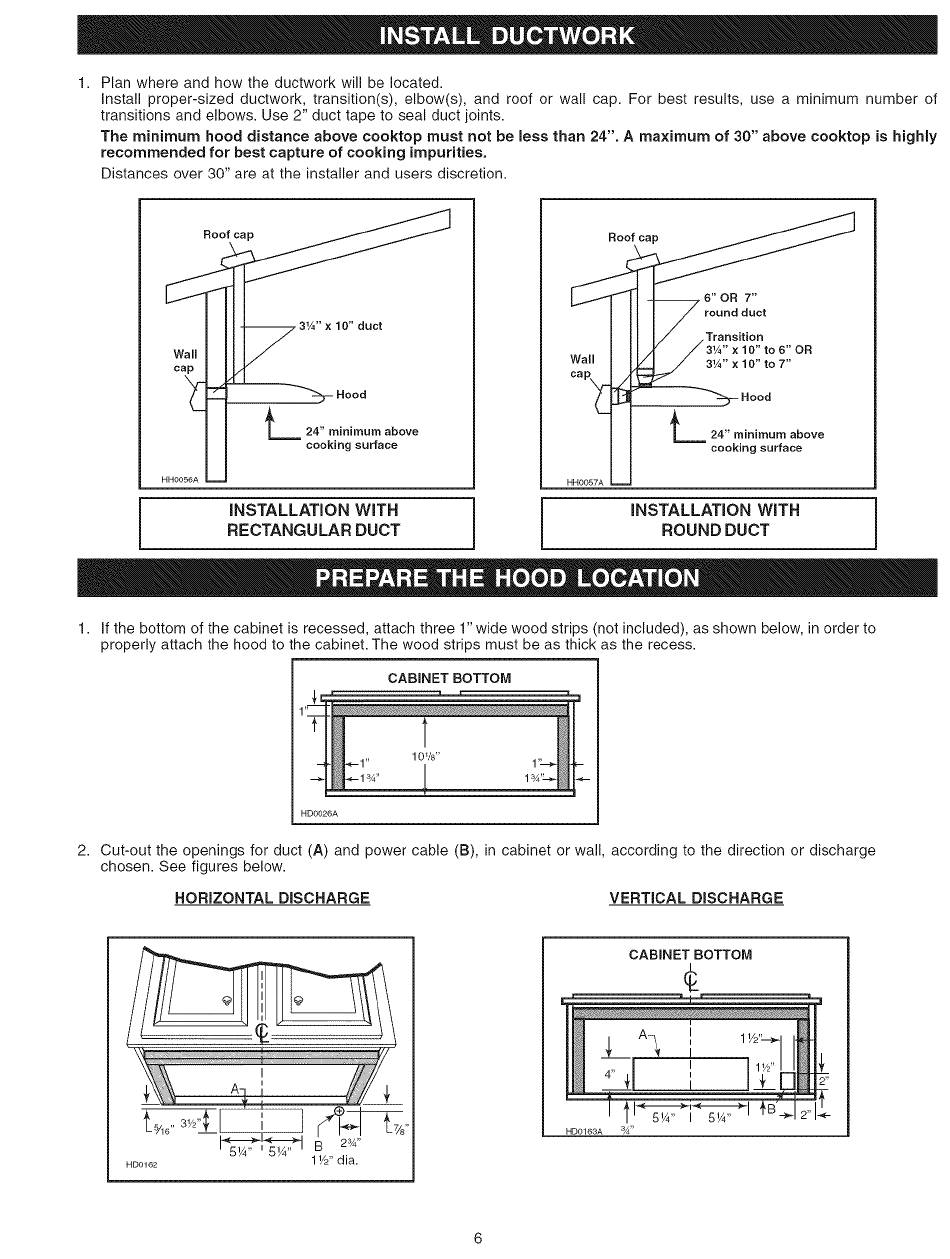

1. Plan where and how the ductwork will be located.
Install proper-sized
ductwork,
transition(s),
elbow(s), and roof or wall cap. For best results, use a minimum
number of
transitions and elbows. Use 2" duct tape to seal duct joints.
The minimum
hood distance
above cooktop
must not be less than 24". A maximum
of 30" above cooktop
is highly
recommended
for best capture of cooking
impurities.
Distances over 30" are at the installer and users discretion.
Roof cap
- Hood
24" minimum
above
cooking
surface
Roof cap
iNSTALLATiON WiTH
RECTANGULAR DUCT
Wall
cal_
OR 7"
round
duct
Transition
x 10" to 6" OR
3W' x 10" to t'
- Hood
L24"
minimum
above
cooking surface
HHOO57A
iNSTALLATiON
WiTH
ROUND DUCT
1. If the bottom of the cabinet is recessed, attach three 1" wide wood strips (not included), as shown below, in order to
properly attach the hood to the cabinet. The wood strips must be as thick as the recess.
CABINET
BOTTOM
1'
HD0026A
2. Cut-out the openings for duct (A) and power cable (B), in cabinet or wall, according to the direction or discharge
chosen. See figures below.
HORIZONTAL
DISCHARGE
VERTICAL
DISCHARGE
CABINET BOTTOM
¢
HD0162
1V2" dia.
5W'
5W'
HD0163A
3/4 _
