mOUNTING THE CAmErA

please refer to the steps below to assist you with mounting the camera. It is recommended that you
configure the camera before mounting.

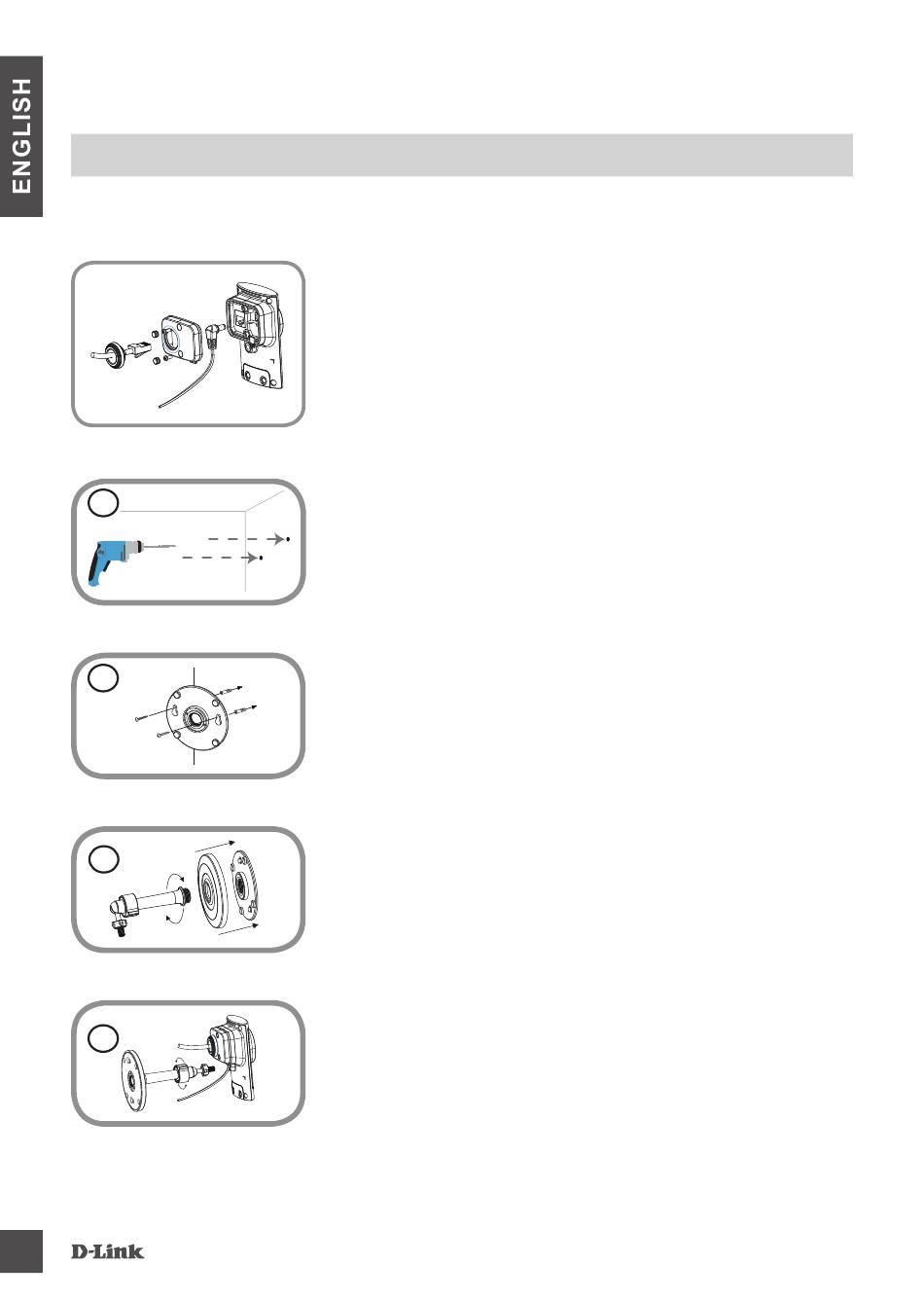

1
2
3
4
4
If you are using a power over ethernet (poe) connection to power
the camera, remove the two rubber seals from the back cover, then
use a screwdriver to remove the two screws and remove the back
cover. disconnect and remove the power adapter, insert the rubber
power port seal, and then reattach the back cover, screws, and
rubber seals.
Step 1:
using the mounting plate as a guide, mark where you want to
position the camera. use a 6mm drill bit to drill both holes at least
30mm deep. If the wall is made out of concrete, drill the holes first,
then insert the plastic anchors to support the screws.
Step 2:
place the mounting plate over the holes that are in the wall. make
sure to align the mounting base holes with the holes in the wall. use
the supplied screws to attach the mounting base to the surface of
the wall.
Step 3:
place the mounting base cover on the mounting plate. Reattach the
camera mount onto the mounting base by holding the camera mount
and twisting the camera mount clockwise into the mounting base.
Step 4:
adjust the angle of the camera as desired, then tighten the collar on
the cameara stem to lock it in place.
