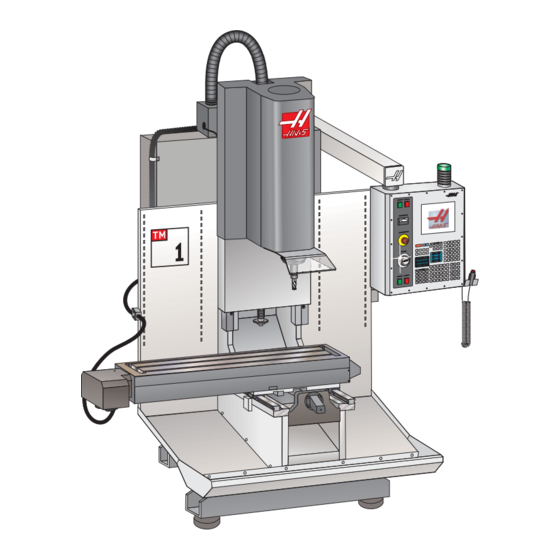

Resumen de contenidos para Haas Toolroom Mill
- Página 1 ’ PERATOR DDEN DU M 96-0041 Rev T January 2009...
- Página 2 (6) months from the date of purchase, which is the date that a machine is installed at the end user. An additional 6-month extension may be purchased from your authorized Haas distributor. See the Warranty section of the Mill Operator’s Manual for further warranty information.
- Página 3 Connecting the Toolroom Mill to Power The Toolroom Mill can be powered from either 3 Phase 208 Wye Power (Neutral Grounded) or Single Phase 240V. In either case, Ground a separate ground wire of the same size as the main conductors...
- Página 4 Over Voltage Regen Load is open EVELING The Toolroom Mill is leveled in the same manner as a VF-Series machine. See the Reference Manual for details. NOTE: Before any axis movement takes place, remove the shipping bracket from the spindle and table, and remove any wooden crating from the top of the spindle head.
- Página 5 4 . M ACH I N I N G PRACT I CES This section is a general overview of basic machining practices. It is intended to familiarize you with basic setup and operation techniques. Good machining practices extend tool life and in the end can save money.
- Página 6 Chipping The cutting edge is broken off instead of being worn away. Caused by: • Excessive feed rate • Interrupted cut • Insert geometry too weak • Chatter Cratering Characterized by a smooth depression on the face of the insert. Caused by: •...
- Página 7 Spindle Speed RPM = speed at which the tooling is turning. The mill can be commanded in either clockwise (CW) or counterclockwise (CCW) direction. The type of application or style of tool will usually dictate the spindle direction. Depth of Cut The distance the cutter penetrates the workpiece, also referred to as chip load.
- Página 8 Tap Used to create screw threads inside of a drilled hole. NOTE: Care must be taken when using a milling machine to perform a tapping operation. For example, the spindle speed and feed must be synchronized. End Mill Shaped similar to a drill, but with a fl at bottom (end). It is used primarily to cut with the side of the tool, to contour the shape of a work piece.
- Página 9 fi nd home. NTRODUCTION The Haas Toolroom Mills are supplied with the Intuitive Programming System (IPS). This is displayed once the mill is powered up and homed. This screen shows the X, Y and Z position of the mill as well as the spindle speed. This programming system helps the operator set up operations such as setting tool and work offsets, drilling and tapping cycles, circular and rectangular pocket milling, without knowledge of G-code programming.
- Página 10 G-Codes is described in the Operator’s manual and includes examples to demonstrate the use of the G-codes. Press “Handle Jog” to return to the Toolroom Mill menus. A program entered through Toolroom Mill screens is also accessible in MDI (full CNC).
- Página 11 3. Press F4 to access the IPS recorder menu. Choose menu option 1 or 2 to continue, or option 3 to cancel and return to IPS. F4 can also be used to return to IPS from any point within IPS recorder. IPS Recorder Menu Menu Option 1: Select / Create Program Select this menu option to choose an existing program in memory or to create a new pro-...
- Página 12 TM-1 pictured. Grease fi tting locations are identical for TM-2 and TM-1P. Also check the Maintenance chapter of the Operator’s manual for additional maintenance issues. Note that the Toolroom Mill does not have a gearbox or a TSC system; disregard these maintenance sections. 96-0041 Rev T...
