SJE Rhombus EZ Serie Instrucciones De Instalación Y Manual De Operación/Localización De Problemas

EZ Series
SJE-Rhombus
Installation Instructions and Operation/Troubleshooting Manual
Warranty void if panel is modifi ed.
Call factory with servicing questions:
1-800-RHOMBUS
(1-800-746-6287)
Manufactured by:
22650 County Highway 6  P.O. Box 1708
Detroit Lakes, Minnesota 56502 USA
1-888-DIAL-SJE (1-888-342-5753)
Phone: 218-847-1317  Fax: 218-847-4617
E--mail: customer.service@sjerhombus.com
Website: www.sjerhombus.com
Technical Support Hours:
Monday - Friday 7 A.M. to 6 P.M. Central Time
©SJE-Rhombus
1050922A • Rev 07/16
In-Site
® ®
Type EZI w/C-Level
®
This control panel must be installed and serviced by a licensed
electrician in accordance with the National Electric Code NFPA-70, state
and local electrical codes. All conduit running from the sump or tank to
the control panel must be sealed with conduit sealant to prevent moisture
or gases from entering the panel. NEMA 4X enclosures are for indoor or
outdoor use, primarily to provide a degree of protection against corrosion,
windblown dust and rain, splashing water and hose-directed water. Cable
connectors must be liquid-tight in NEMA 4X enclosures.
The C-Level
Do NOT use in potable water.
Installation
EZ Series ® In-Site
system monitoring via a Bluetooth
records pump status, number of cycles, elapsed run time, alarm counts,
and signal error counts.
Mounting the Control Panel
NOTE: The control panel should not be mounted in a location that may be
subject to submersion.
1. Determine mounting location for panel. If distance exceeds the length of
either the sensor or fl oat cables or the pump power cables, splicing will
be required. NOTE: For splicing C-Level
Splice shielding as well as conductors. Maximum total cable length is
100 feet. For outdoor or wet installation, we recommend the use of an
SJE-Rhombus
make required connections. You must use conduit sealant to prevent
moisture or gases from entering the panel.
2. Mount control panel with mounting devices furnished.
3. Determine conduit entrance locations on control panel. Check local codes
and schematic for the number of power circuits required. (Sensor cable
requires separate conduit from power and pump cables.)
NOTE: Be sure the proper power supply voltage, amperage, and phase meet
the requirements of the pump motor(s) being installed. If in doubt, see the
pump identifi cation plate for voltage/phase requirements.
4. Drill proper size holes for type of connectors being used.
NOTE: If using conduit, be sure that it is of adequate size to pull the pump
cable(s) through.
5. Attach cable connectors and/or conduit connectors to control panel.
6. Determine location for mounting junction box according to local code
requirements. Do not mount the junction box inside the sump or basin.
7. Mount junction box to proper support.
8. Run conduit to junction box. Drill proper size holes for the type of conduit
used.
9. Identify and label each wire before pulling through conduit into control
panel and junction box. Make wire splice connections at junction box.
CL
™

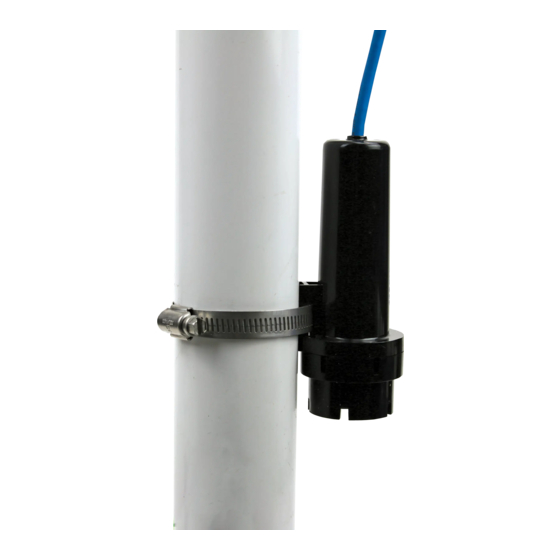

Sensor is suitable for use in sewage applications.
® CL control panels are designed for pump control and
®
wireless connection. The controller
®
liquid-tight junction box with liquid-tight connectors to
L
Sensor
™
™
cord, use only shielded cable.
E1
