Panel Kit Installation Requirements - Jennair JS42NXFXDE Guía Para La Instalación

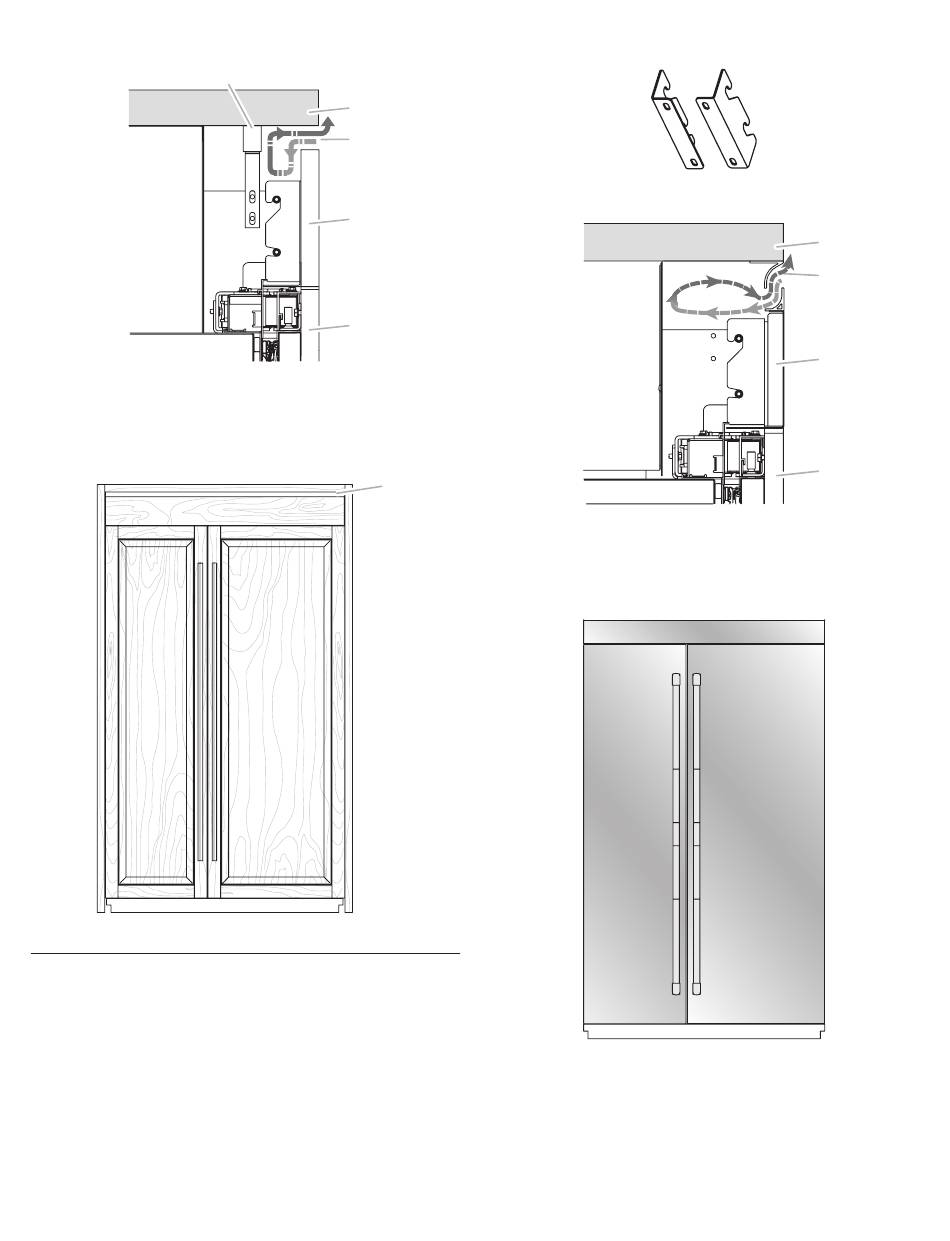

Standard Integrated Grille Installation—Side View
A. Top grille filler
B. Soffit
C. Airflow
Standard Integrated Grille Installation—Full Product View
C. Airflow

Panel Kit Installation Requirements

See the "Models" section to see the panel kit options available for
your model.
IMPORTANT:
A panel kit installation can be achieved with either a
■
24" (60.9 cm) or 25" (63.5 cm) deep opening.
A standard grille is used to achieve a panel kit installation.
■
Use the standard grille bracket (provided with refrigerator) to
attach the standard grille.
The grille panel height, shown in the "Panel Kit Installation—
■
Side View" graphic, allows for an air gap critical to refrigerator
performance.
A
B
C
D
E
D. Grille panel
E. Door panel
C
Standard Grille Bracket
Panel Kit Installation—Side View
A. Soffit
B. Airflow
Panel Kit Installation—Full Product View
A
B
C
D
C. Grille panel
D. Door panel
13
