J
Audiovox Electronics Corporation
150 Marcus Boulevard
Hauppauge, NY 11788
1-800-323-4815
www.jensen.com
© 2004 Audiovox

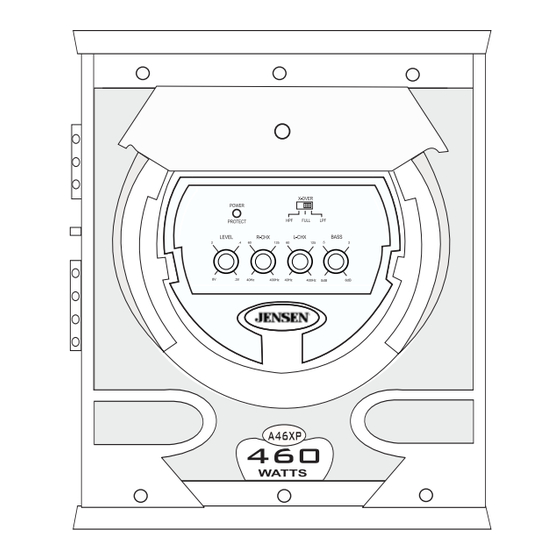

A34XP & A46XP
Amplifiers
Installation and
Operation Manual
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Indicators and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
®
Introduction
Thank you for purchasing a Jensen amplifier. AXP series amplifiers offer extreme value and performance. Proper
installation is essential for optimal performance and long-term reliability. Please read through this manual to familiarize
yourself with your amplifier and its functions.
Warranty Service
If your Jensen amplifier should ever require service, you will need to have the original dated receipt. If you need to
return the unit for any reason, always include the receipt with the product.
Installation Assistance
For installation assistance, call 1-800-323-4815 during normal business hours, or visit www.jensen.com at any time.
Features
AXP Series two-channel amplifiers include:
•
Easy access, top mounted controls
•
Continuously variable high pass/low pass crossover
•
40Hz – 400Hz crossover frequency range
•
Continuously variable bass boost, centered at 45Hz
•
Input level control
•
Traditional input circuitry – low and high level inputs
•
Pre-amp output for installation flexibility
•
Dual status LED diagnostic indicator
•
Thermal, short circuit and low impedance protection circuitry
•
PWM MOSFET power supply
•
Discrete amplifier design with complementary high current bi-polar output stage
