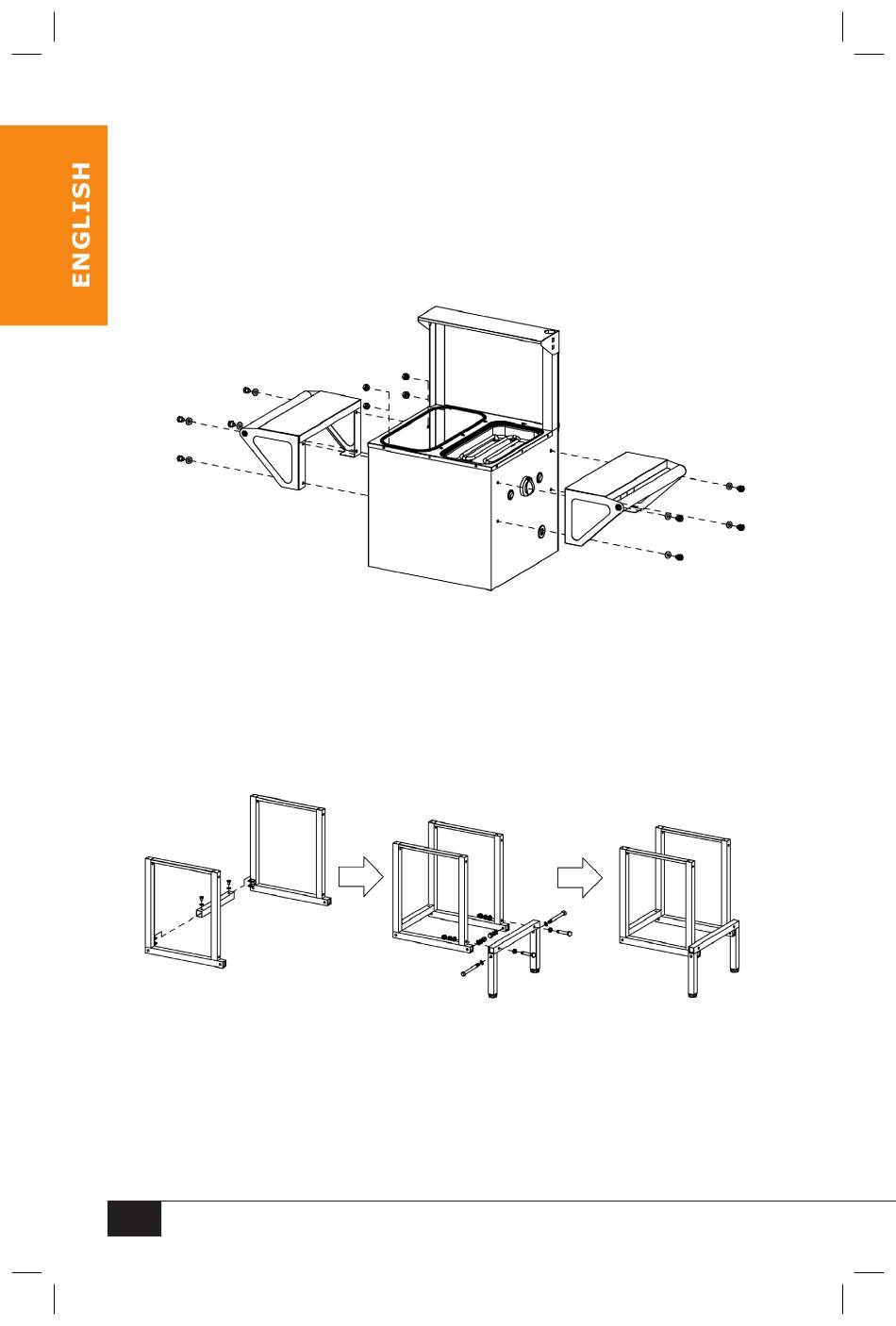

ASSEMBLY OF MAIN UNIT
1. Push Handle (K) attaches onto the left side of the Main Unit (A) using four #1 Bolts and four
#3 Flat Washers. Lock the handle into place by placing four #7 Nuts on the inside of the Main
Unit (A).
Push Handle (K) attaches onto the right side of the Main Unit
(A) using four #1 Bolts and four #3 Flat Washers.
2. Insert Cross Bar (L) into the square inserts on the inside of Base Support (J) and secure
from below with two #1 Bolts and two #3 Flat Washers. Insert the Leg Assembly (I) over the
protruding ends of the Base Support (J) and fasten from the outside of Base Support (J)
going inward using four #2 Bolts, eight #4 Flat Washers, four #5 Locking Washers and four #6
Nut Caps.
