Mazda CX-5 2013-up, Mazda6 2014-2015
KIT FEATURES
• ISO DDIN radio provision
• Painted matte black to match factory finish

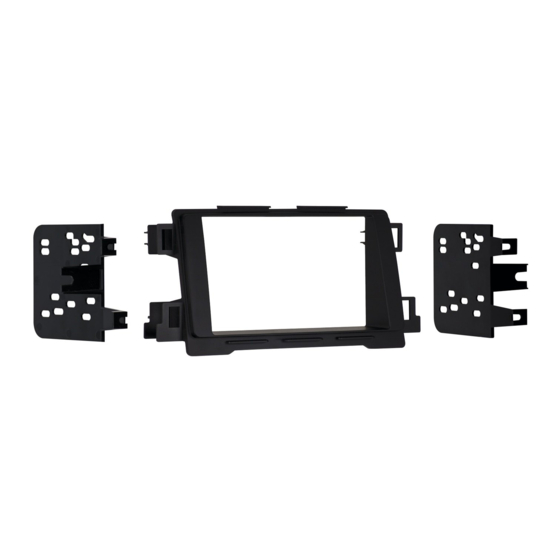

KIT COMPONENTS
• A) Radio housing • B) Radio brackets • C) (4) Panel clips • D) (4) #8 x 3/8" Phillips truss head screws
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7903 • AX-LCD (Mazda6 only)
Antenna Adapter: • 40-HD10
METRA. The World's best kits.
Installation instructions for part 95-7522B
95-7522B
C
D
™
metraonline.com
Table of Contents
Dash Disassembly ................................................. 2
Kit Assembly
– ISO DDIN radio provision ...................................... 2
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
CAUTION!
Metra recommends disconnecting the negative bat -
tery terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your local
Dealership for more information. All accessories, switches, climate
controls panels, and especially air bag indicator lights must be con -
nected before reconnecting the battery or cycling the ignition. Also,
do not remove the factory radio with the key in the on position, or the
vehicle running. It would be best to remove the key from the ignition
and then wait a few seconds before removing the factory radio.
© COPYRIGHT 2004-2015 METRA ELECTRONICS CORPORATION
Publicidad
Manuales relacionados para Metra 95-7522B
Resumen de contenidos para Metra 95-7522B
- Página 1 • A) Radio housing • B) Radio brackets • C) (4) Panel clips • D) (4) #8 x 3/8” Phillips truss head screws CAUTION! Metra recommends disconnecting the negative bat - tery terminal before beginning any installation, unless the vehicle manufacturer recommends against so.
-
Página 2: Dash Disassembly
95-7522B Dash Disassembly 1. Unsnap and remove the trim panel above the glove box and climate controls. This panel will include the climate vents and hazard button. (Figure A) Note: Do not cycle the key while the hazard button is disconnected. -
Página 3: Kit Assembly
(Figure B) (Figure A) (Figure B) 4. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the radio for proper operation. -
Página 4: Important
Installation instructions for part 95-7522B IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. -
Página 5: Características Del Kit
Instrucciones de instalación para 95-7522B Indice Mazda CX-5 2013 y mas, Mazda6 2014-2015 95-7522B Desmontaje del tablero ......... 2 Ensamble del kit – Provisión de unidad central ISO DDIN ....2 CARACTERÍSTICAS DEL KIT • Provisión de unidad central ISO DDIN HERRAMIENTAS REQUERIDAS •... -
Página 6: Desmontaje Del Tablero
95-7522B Desmontaje del tablero 1. Suelte a presión y quite la moldura de arriba de la guantera de lado a lado y centrales de clima artificial.Este panel incluirá las rejillas de ventilación del clima y el botón de peligro. (Figura A) Nota: No ciclo de la tecla mientras se desconecta el botón peligro. -
Página 7: Ensamble Del Kit
4. Ubique el arnés de cableado de fábrica y el conector de la antena en el tablero. Metra recomienda el uso de adaptadores adecuados de acoplamiento de Metra y/o de AXXESS. 5. Vuelva a armar el tablero al revés de como lo desarmó. -
Página 8: Importante
Instrucciones de instalación para 95-7522B IMPORTANTE Si tiene dificultades con la instalación de este producto, llame a nuestra línea de soporte técnico al 1-800-253-TECH. Antes de hacerlo, revise las instrucciones por segunda vez y asegúrese de que la instalación se haya realizado exactamente como se indica en las instrucciones.
