Nexus™ Aw 7x7 QRG
Part 3: Map The
Products For
ArKaos

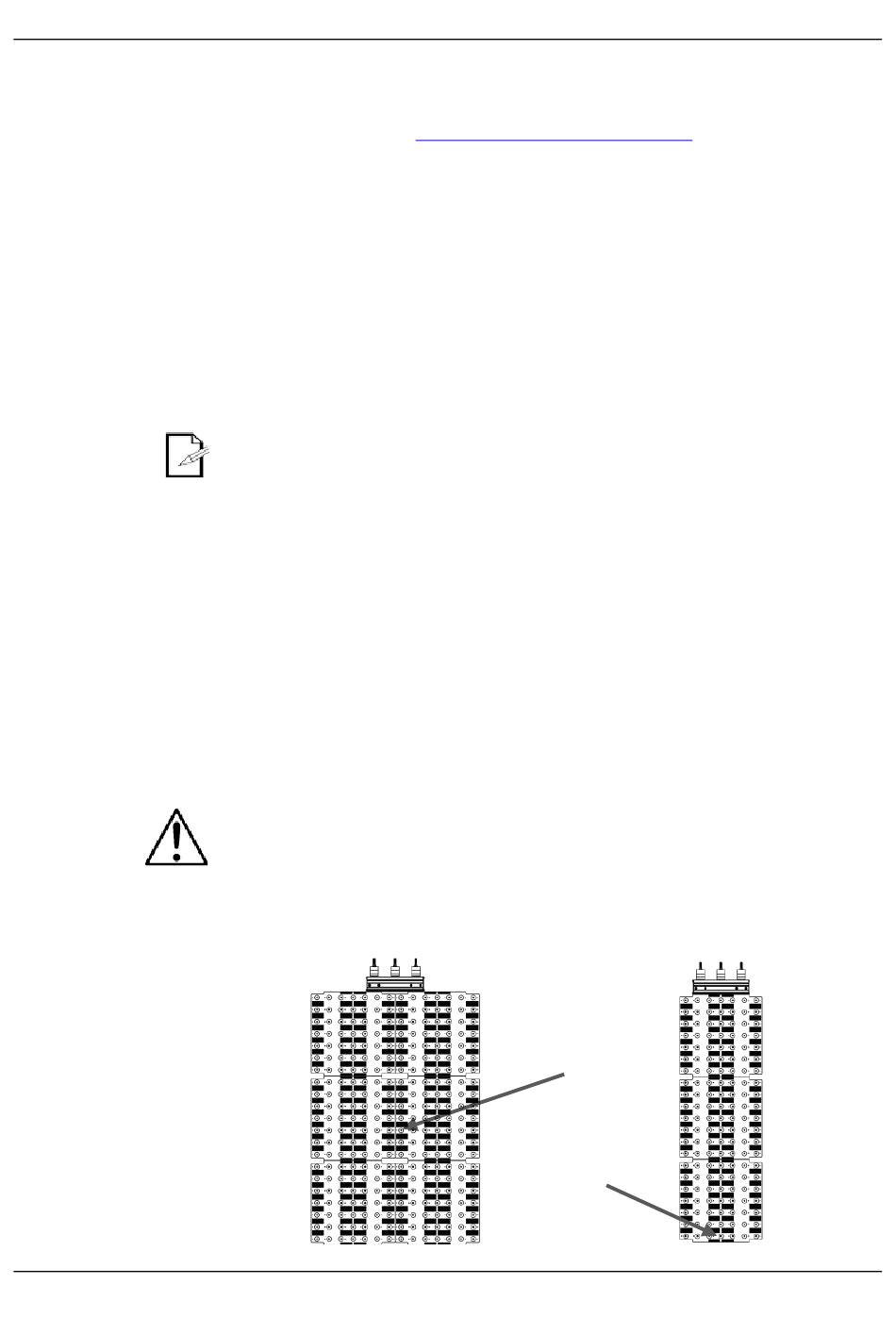

Mounting
Mounting
Diagram with
Affinity™ Rig Kit
1. Make sure the Nexus™ Aw 7x7 products are all listed in the
Connected Devices window and have flashed when tested. For more
information, see
2. Click on the first product in the list and drag it onto the mapping
image in the center of the screen. A shape representing the display
product shows on the mapping image. The product displays the pattern
on the mapping image.
3. Drag, rotate, and resize the shape on the mapping image until it is in
the position needed for the presentation layout.
4. Repeat steps 2 thru 3 for every Nexus™ Aw 7x7 product.
5. Complete Parts 1 and 2.
6. Click on File in the Arkaos Kling-Net Mapper.
7. Click on Save As.
8. Save the file.
Remember the location of the file because the file must be loaded into
ArKaos software.
Nexus™ Aw 7x7 panels are rigged using the CHAUVET® Affinity™ Rig
Kit, or the CHAUVET® CLP-15 clamp, both of which are sold separately.
The Rig Kit can bear the weight of 16 panels, in 1 column of 16, or 2
columns of 8. The rig kit has 3 holes for M12 compatible bolts and works
with most standard truss clamps. The mounting clamp can bear the weight
of 4 panels hung in a single column. The mounting clamp has one hole for
M12 compatible bolts and fits most standard truss.
The coffin locks on the top and bottom of the Nexus™ Aw 7x7 panels
connect the tops and bottoms, and bear the weight, of the panels. The bolt-
locking connectors on the sides connect the panels and align the pixels into
rows. They cannot bear the weight of the panels.
·
When using only the integrated bracket, do not link more than 4
panels in one column.
·
The bolt-locking hardware on the sides of the Nexus™ Aw 7x7
panels is not load bearing. Do not hang the panels sideways.
Rig Kit Attached
To 2 Panels
Part1: Confirming Connectivity.
Bolt-Locking
Connectors
Coffin Locks
7
Rig Kit Attached
To 1 Panel
Up to 16 Panels
in a Single
Column
