Instruction Manual

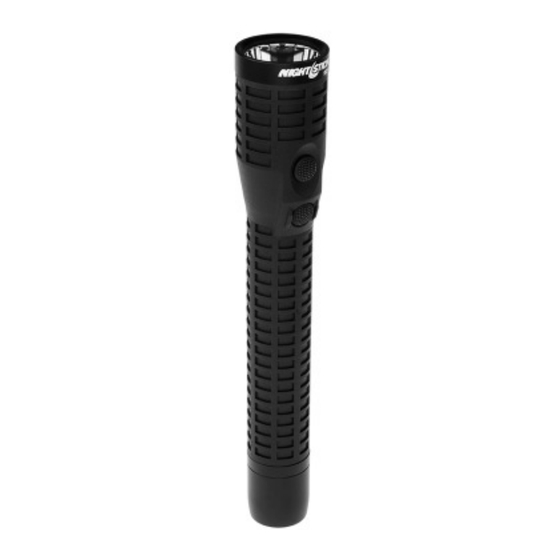

NSR-9924XL
THANK YOU FOR SELECTING THE NIGHTSTICK NSR-9924XL!
PLEASE SAVE THESE INSTRUCTIONS
Please read these instructions before using your 9924XL. They include
important safety and operation information. Be sure to charge the 9924XL
fully before the fi rst use. A battery is fully charged when the charger light is
green.
Included in the box - Compris dans la boîte - Incluido en la caja
WARNINGS
Lithium-ion batteries must be used and charged properly. Improper use
can result in serious injury, fi re, or death.
NOT FOR USE IN HAZARDOUS LOCATIONS. Do not use this product
in explosive atmospheres, near fl ammable liquids, or where explosion proof
or intrinsically safe lighting is required.
DO NOT use this product in the proximity of vehicles or equipment when
there is a risk of fl ammable liquids coming into contact with the fl ashlight.
Light can become hot while on. To prevent damage DO NOT cover or
place next to any potentially fl ammable materials while in use.
Do not leave the battery in direct sunlight or use or store the battery inside
cars in hot weather.
Do not expose the battery to water or salt water, or allow the battery to
get wet.
Do not store the battery with metallic objects that may cause a short circuit.
Immediately discontinue use of the battery if the battery emits an unusual
smell, feels hot, changes color, changes shape or appears abnormal in any
way.
Keep out of the reach of children.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 1-469-326-9400 • www.mynightstick.com
INITIAL USE
Fully charge the 9924XL before the fi rst use, or if the battery is new or
has been unused for several months. The maximum charge time required
is approximately 6 hours.
DAILY USE
Use only the supplied Nightstick charger, battery and AC or DC adapter.
For best performance, charge the 9924XL when the fl ashlight beam starts
to dim.
Connect the AC power adapter to the charger. The LED indicator will not
be illuminated at this point.
With the fl ashlight facing forward, slide the 9924XL into the charger until
the contacts snap into place.
The LED indicator changes to constant red indicating the 9924XL is
properly inserted into the charger and is in fact charging. The LED indicator
remains red until the battery is fully charged. At full charge, the LED indicator
turns green.
The total time to full charge the 9924XL varies depending on the remaining
charge in the battery pack.
To confi rm a full charge, keep the 9924XL in the charger and turn it on.
The LED indicator will change to red. Turn off the 9924XL. If the 9924XL is
fully charged, the LED indicator will turn green. If not, it remains red until
the charge is completed and the LED indicator turns green. The 9924XL will
now be fully charged.
OPERATION
The 9924XL has seven light modes: momentary fl ashlight, full brightness
fl ashlight, medium brightness fl ashlight, low brightness fl ashlight, fl oodlight,
dual-light and strobe. The 9924XL has two body switches and a tail-cap
switch providing access to all modes.
Momentary Flashlight Mode
Lightly press the top body switch or the tail-cap switch for momentary
operation. Release the switch to turn the light off.
Constant-on
Press the top body switch or the tail-cap switch until it clicks and then
release for constant-on in high-brightness mode. Press and release either
switch to turn the light off.
Select Brightness Level
Press and hold down the top body switch or the tail-cap switch. The light
will cycle from high to medium to low and then back up again at a rate of
approximately one mode per second. The light will continue to cycle up and
down through the various modes as long as the switch is held down. When
the desired brightness level is reached, simply release the switch, and the
light will remain in that brightness mode. Press and release either switch to
turn the light off.
Floodlight
Press the bottom body switch until it clicks and then release for fl oodlight
mode. Press and release the bottom body switch again to turn the light off.
Dual-Light
Dual-Light allows the user to turn on both the Flashlight (at any brightness
level) and the Floodlight, at the same time. First select the appropriate
brightness level of the fl ashlight using the directions above. Next press and
release the bottom switch to activate the fl oodlight. Both the Flashlight and
the Floodlight are now running. Press and release both the top/tail-cap and
bottom body switches to turn the light off.
Strobe Function
From off or any mode, rapidly double click the top body switch or the tail-
cap switch to activate the strobe function running at full brightness. Press and
release either switch to turn the light off.
BAYCO PRODUCTS LIMITED LIFETIME WARRANTY
WARRANTY
Bayco Products, Inc. warrants this product to be free from defects in
workmanship and materials for the original purchaser's lifetime. The Limited
Lifetime Warranty includes the LEDs, housing and lenses. Rechargeable
batteries, chargers, switches, electronics and included accessories are
warranted for a period of two years with proof of purchase. Disposable, non-
INS-9924XL-15
