Manuales relacionados para Serta 43676
Resumen de contenidos para Serta 43676

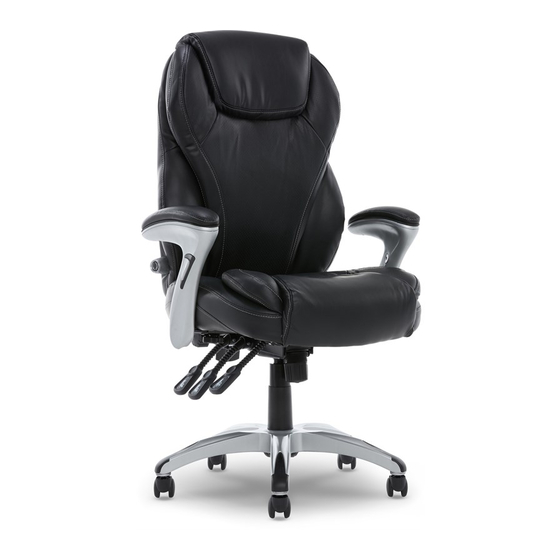

- Página 1 Super Task Chair Silla de Trabajo Súper Assembly Instructions Instrucciones de Ensamblaje Model/ Modelo: 43676...
- Página 2 Parts/Partes Casters Star Base Gas Lift with Telescoping Cover Seat Plate Ruedas Base en forma de estrella Elevador neumático y cubierta Mecanismo del asiento telescópica Quantity/cantidad: 5 Quantity/cantidad: 1 Quantity/cantidad: 1 Quantity/cantidad: 1 Knobs (pre-assembled with arms) Left Arm Right Arm Seat Cushion Perillas (vienen incorporadas a los Brazo izquierdo...
- Página 3 Back Cushion 1” Screws 1-1/4” Screws Allen Key Cojín del respaldo Tornillos de 25mm Tornillos de 32mm Llave allen Quantity/cantidad: 1 Quantity/cantidad: 2 Quantity/cantidad: 2 Quantity/cantidad: 1 Step 1 Step 2 Place the Star Base (B) upside down and insert 5 Casters (A) into Turn the Star Base (B) over and insert the Gas Lift with Telescoping the holes on the Star Base (B).
- Página 4 F R ON T FRONT FRONT Step 4 Step 3 Attach the Seat Plate (D) to the bottom of the Seat Cushion Take off the Knobs (F) from the Arm Brackets (E1 & E2), (G) (with the front of the seat plate facing the front of seat insert the Arm Brackets (E1 &...
- Página 5 Step 5 Step 6 Position the assembled chair upright with the Seat Plate (D) facing Align Back Cushion (H) with Seat Cushion (G) by inserting down. Insert the Gas Lift with Telescoping Cover (C) into the center back support plate into the rear hole of the Seat Plate (D) as hole of the Seat Plate (D) and press down until fully engaged.
- Página 6 Operating Instructions Instrucciones de Uso Function Instruction-1 To Adjust Seat Height: While seated, reach under the right side of the chair to find the handle 1. Lift the handle and raise your body up slightly to allow the chair to rise to the desired height. To lower the seat, lift the handle while applying more weight downward on the seat.
- Página 7 Function Instruction-2 To Operate the Tilt: While seated, lean backward and reach under the right side of the chair to find handle 2. When the handle is placed in the level position, leaning back to allow the chair to tilt backwards.
- Página 8 Function Instruction-3 To Adjust Back Cushion Angle: While seated, lean backward and reach under the right side of the chair to find the handle 3. When the handle is placed in the level position, tilting your body backwards to adjust the angle of back cushion, push down the handle to lock the back angle while the desired angle is reached.
-
Página 9: Function Instruction
Function Instruction-4 To Adjust the Back Cushion Height: Loosen the knob on the rear right side of the seat plate, then lift up the back cushion, tighten the knob once the desired back height is reached. Instrucciones de Funcionamiento-4 Para ajustar la altura del cojín del respaldo: Afloje la perilla situada en el lado derecho posterior de la plancha del asiento, después levante el cojín del respaldo y ajuste la perilla una vez que la altura del respaldo sea la... - Página 10 Function Instruction - 5 To Adjust Arm Height: Press the buttons on the chair arms. Press the buttons to allow the arms to move up or down freely then release the buttons once the desired height is reached. Instrucciones de Funcionamiento - 5 Para ajustar la altura de los brazos: Presione los botones de los brazos de la silla.
- Página 11 To Adjust Arm Width: Reach for the knobs underneath the arms located on bottom of seat cushion. Turn the knobs counter - clockwise to loosen the width adjustment feature then turn the knobs clockwise to tighten when you have reached your desired width. Instrucciones de Funcionamiento-6 Para ajustar la distancia entre los brazos: Ubique las perillas situadas en la parte inferior del cojín...
- Página 12 Function Instruction-7 To Adjust Mechanical Lumbar: While seated, reach to the right side of the back cushion to find the adjustment knob for the mechanical lumbar. Turn the knob clockwise to increase the lumbar support. To reduce the lumbar support, turn the knob counter – clockwise.
- Página 13 Function Instruction - 8 To Adjust Tension On The Tilt: Reach under the front center of the chair, grasp the round knob (N) and turn it counter - clockwise to stiffen the tilt mechanism for a heavier user. Turn the knob (N) clockwise to loosen the tilt mechanism for a lighter user.
- Página 14 Limited Warranty True Innovations seating products are warranted against defects in material and workmanship while owned by the “Original Purchaser”. The term “Original Purchaser” is defined as that party or entity which purchases True Innovations furniture from an authorized True Innovations retailer as shown by the original sales receipt.
-
Página 15: Garantía Limitada
Garantía Limitada Los productos de True Innovations seating están garantizados contra defectos de material y mano de obra mientras está en posesión de su “Comprador Original”. El término “Comprador Original” se define como el individuo o entidad que compra el mueble de True Innovations de un distribuidor autorizado así...
