PACKAGE CONTENTS
SEE ILLUSTRATION I
. Speaker unit
2. Velcro for fixation of the speaker unit
3. Set of screws for fixation of the speaker unit – 4 pcs

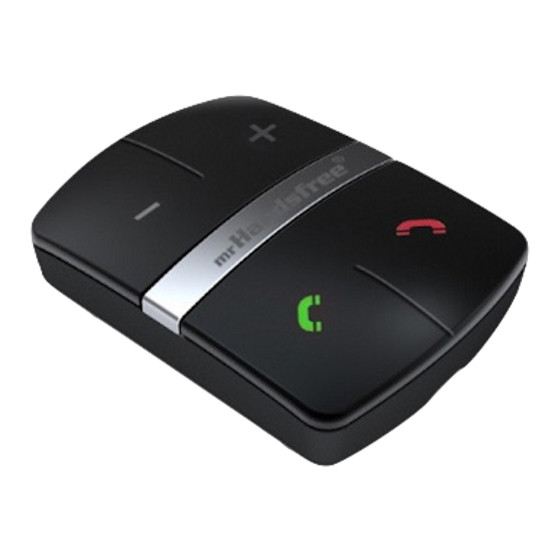

4. Button unit
5. Double-sided tape for fixation of the button unit
6. Microphone with mounting plate and double-sided tape
7. Cable set – Option 1 – For BC 6000m Plug & Play (Optional)
7.1. Adapter for connecting the speaker unit to the car via the cigarette lighter. It includes a changable
fuse and cord.
8. Cable set – Option 2 – For BC 6000m Quick Installation (Optional)
8.1. Power cable for connecting the speaker unit to the power supply of the car, the ignition system
and for muting the radio (small mute cable). It includes a changeable fuse.
8.2. Contact clips for connecting the small mute cable to the car circuitries – 4 pcs.
9. Cable set – Option 3 – For BC 6000m Pro (Optional)
9.1. Mute box (ISO cable) with ISO sockets for radio connections.
10. Quick Reference Guide
INSTALLATION OF THE BC 6000m
The BC 6000m is available in 3 versions:
1. BC 6000m PLUG & PLAY: for easy installation
Connect the adapter for the cigarette lighter to the car and the other end of the cable to the speaker unit.
2. BC 6000m QUICK INSTALLATION
SEE SEPARATE SHEET 'INSTALLATION SCHEME'.
Immediately to the car's electronic system via the small mute cable.
The wires of the small mute cable are listed in below table in column A and each wire should be connected
to the corresponding item listed in column B.
