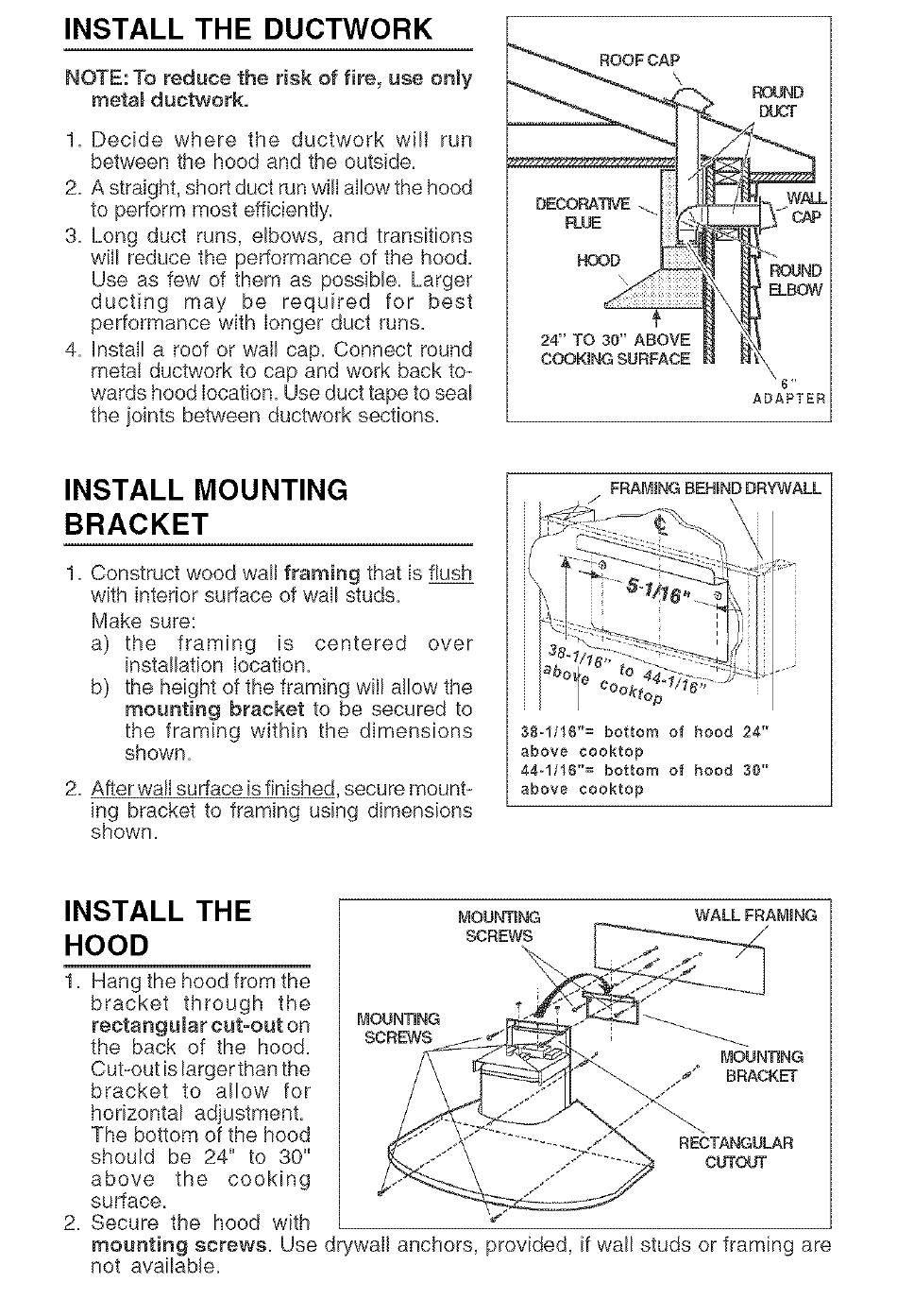

INSTALL
THE DUCTWORK
NOTE: To reduce the risk of fire, use only
metal ductwerk,
1. Decide
where
the ductwork
will run
between the hood and the outside.
2. A straight, short duct run will allow the hood
to perform most efficiently.
3. Long duct runs, elbows, and transitions
wilI reduce the performance of the hood.
Use as few of them as possible. Larger
ducting
may
be required
for
best
performance
with longer duct runs.
4. install a roof or wall cap. Connect round
metal ductwork to cap and work back to-
wards hood location. Use duct tape to seal
the joints between ductwork sections.
ROOFCAP
\
24"
TO 30"
ABOVE
COOKING SURFACE
ADAPTER
FRAMING
BEHIND
DRYWALL
/
INSTALL
MOUNTING
BRACKET
1= Construct wood wall framing that is flush
with interior surface of wail studs.
Make sure:
a) the
framing
is
centered
over
installation location.
b) the height of the framing wilI allow the
mounting
bracket
to be secured to
the framing
within the dimensions
shown.
2. After wall surface is finished, secure mount-
ing bracket to framing using dimensions
shown.
38oi/16"=
bottom
of
hood
24"
above
eooktop
44o1/16"=
bottom
of
hood
30"
above
eooktop
INSTALL THE
HOOD
1. Hang the hood from the
bracket
through
the
rectangular
cut-out on
the back of the hood.
Cut-out is larger than the
bracket
to allow
for
horizontal
adjustment.
The bottom of the hood
should
be 24" to 30"
above
the
cooking
surface.
2. Secure
the hood with
mounting
screws.
Use dr
not available.
MOUNTENG
WALL FRAMING
SCREWS
MOUNTING
SCREWS
RECTANGULAR
CUTOUT
_walI anchors, provided, if wall studs or framing are
