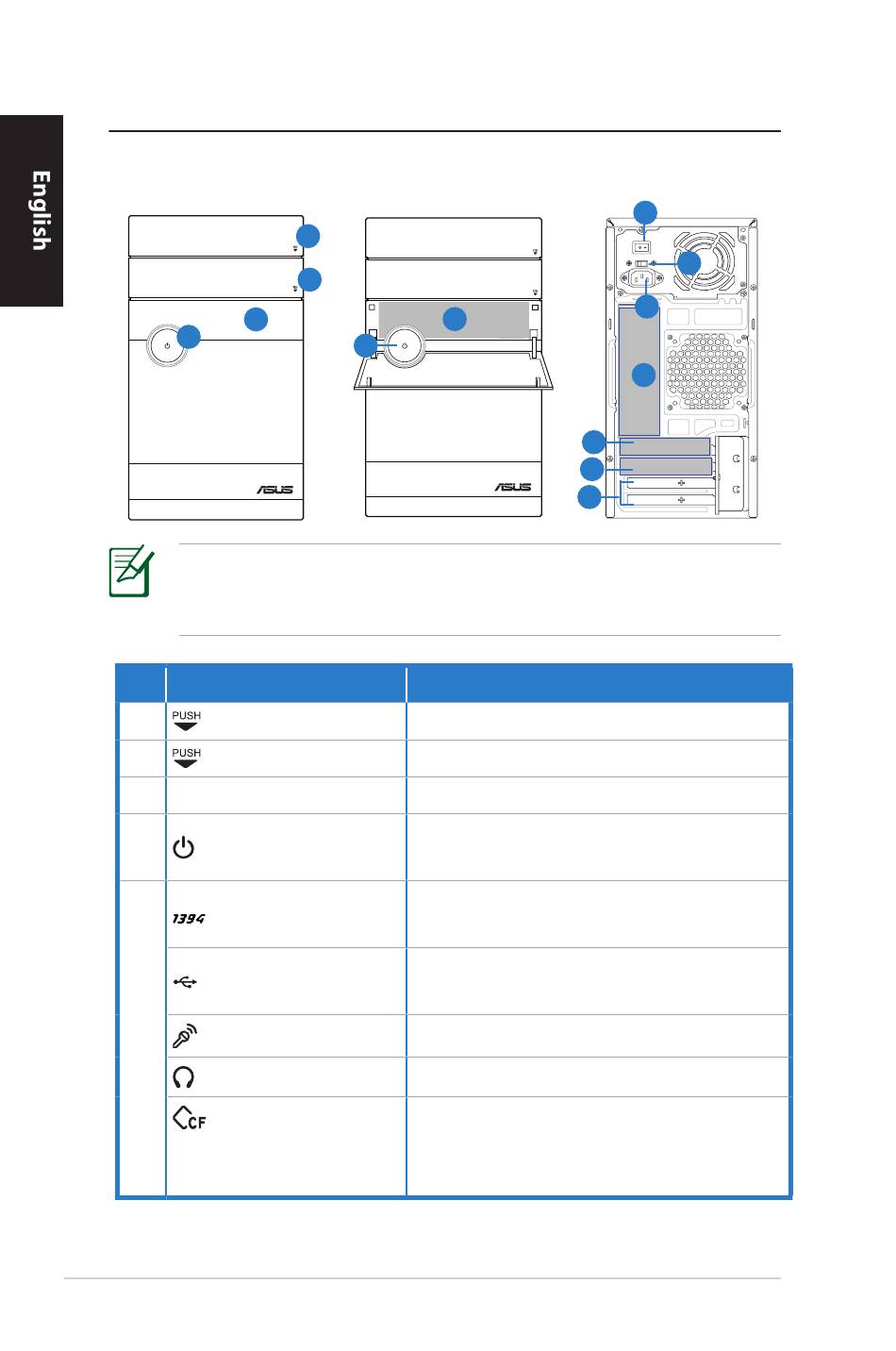

Knowing your Desktop PC

Front / Rear panel features

4
* The gray areas contain front/rear panel ports. These ports
and their locations may vary, depending on the model of your
system.
No. Button/LED
1.
2.
. Front panel cover Pull to open the front panel cover.
4.
Power button
IEEE 194a port
2.0 USB 2.0 ports
Microphone port Connects to a microphone.
5.
Headphone port Connects to a headphone.
CompactFlash®/
Microdrive™
card slot
10 ASUS Essentio Desktop PC
1
2
3
4
Description
Push to eject the optical disk drive.
Push to open the HDD bay cover.
Press this button to turn the system
on.
Connects to an IEEE 194 device
such as a digital camrecorder.
Connects to USB devices such as a
mouse or keyboard.
Insert a CompactFlash®/
Microdrive™ card into this slot.
5
10
11
12
6
7
8
9
DVI
HDMI
