Macurco CX-xx Operation Manual

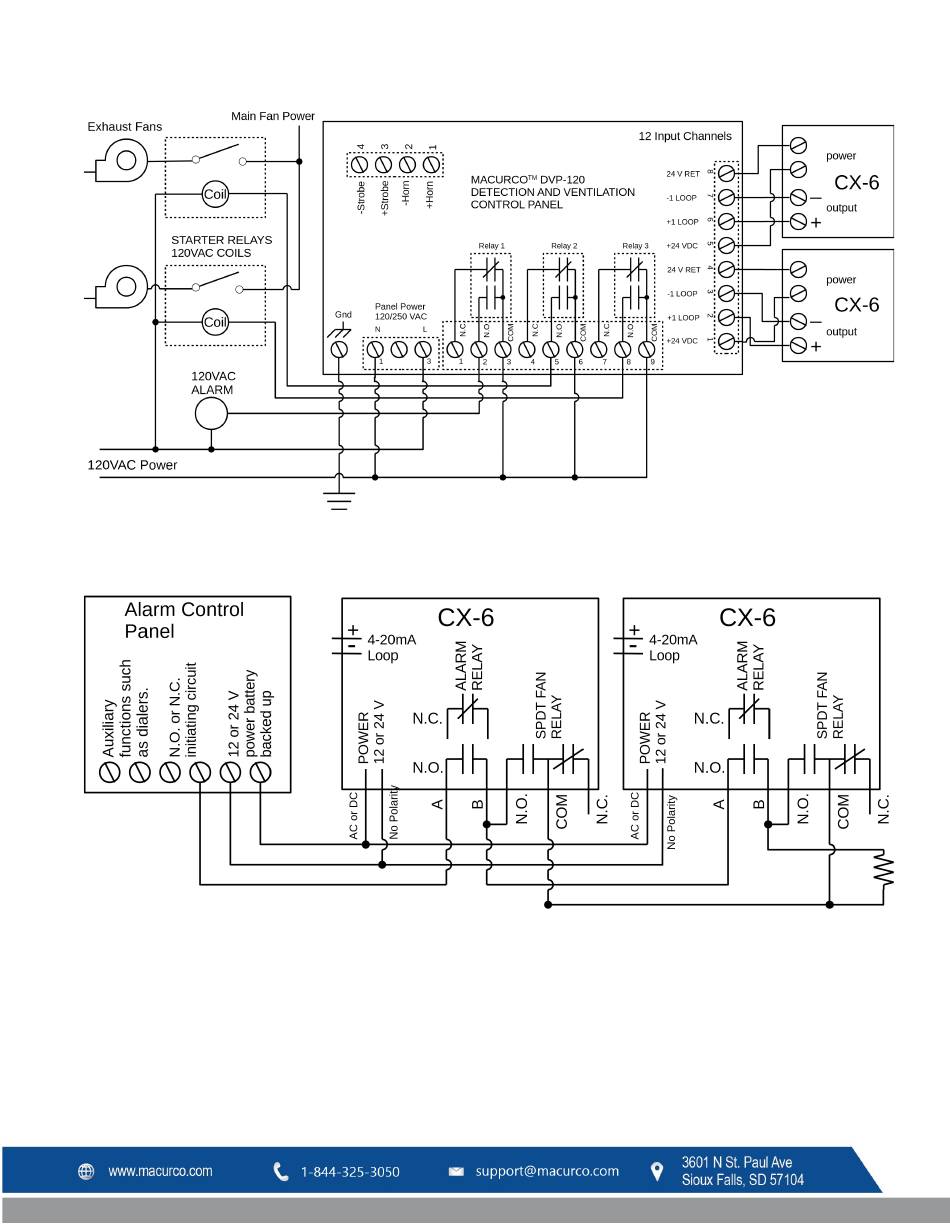

Figure 3–7 6-Series DVP-120 Control Panel
Figure 3–8 6-Series Alternate Alarm Panel
In this application (above) the Fan or primary relay is used as a low-level alarm relay. The Alarm or secondary relay is
used as a supervisory relay when utilized in the normally closed configuration. The CX-6 monitors all critical
functions of the unit through software diagnostics that continually test and verify its operations. If a problem is
found, the unit will switch to a fail-safe/error mode or trouble condition. In this error mode the Fan* and Alarm
relays will be activated indicating the trouble condition at panel and the CX-6 display will flash the error.
REV – 1.1 [34-2900-0512-0 ] 12 | P a g e
