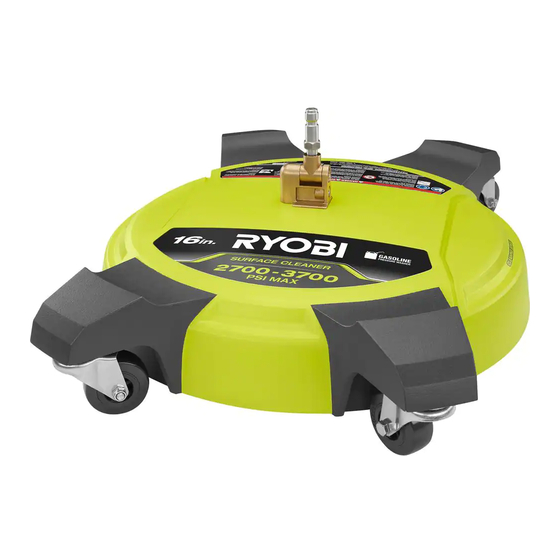

16 in. Surface Cleaner Attachment
RY31SCW20VNM
WARNING:
To reduce the risk of injury, user must read and under-
stand the operator's manual for their pressure washer
before using this accessory. To reduce the risk of injury
or property damage, spray the pressure stream in a safe
direction to ensure proper connection of all accessories
before starting any cleaning project. Fits most pressure
washers. Ensure compatibility and proper fit before us-
ing this accessory. Wear eye protection with side shields
marked to comply with ANSI Z87.1. Risk of fluid injec-
tions; do not point at people, pets, electrical devices
or the unit itself. Turn off the pressure washer before
changing or adjusting accessories. For cold water use
only. Save these instructions. Refer to them frequently
and use them to instruct other users. If you loan someone
this tool, loan them these instructions also.
PRODUCT SPECIFICATIONS
Connections .............................1/4 in. Quick Connect Plug
Deck Width ................................................................. 16 in.
Maximum Pressure ................................................ 3700 psi
Maximum Water Flow .............................................2.5 gpm
Maximum Water Temperature ....................................140°F
INSTALLING THE SURFACE CLEANER ON
THE SPRAY WAND
See Figure 1.
n Insert the surface cleaner inlet plug into the spray wand
quick connect coupler and secure.
WARNING:
To reduce the risk of injection or injury, only use the sur-
face cleaner on flat, horizontal surfaces. Never lift the
surface cleaner from the cleaning surface while operating
the pressure washer.
USING THE SURFACE CLEANER
See Figure 2.
n Start the pressure washer as described in your pressure
washer manual.
n Walk slowly behind the surface cleaner, cleaning as you
go.
NOTE: If striping or swirling occurs, slow your pace. If
striping or swirling continues, the surface cleaner nozzle(s)
may be clogged. See Nozzle Maintenance for how to
clean the nozzles.
INLET
PLUG
QUICK CONNECT
WARNING:
Striking any raised obstacle while using the surface
cleaner will damage the unit. If contact does occur and
causes vibration when operating the pressure washer,
stop and discontinue use. Continuing to operate the unit
could result in serious injury or damage to the unit.
COUPLER
Fig. 1
Fig. 2

Publicidad

loading

Resumen de contenidos para Ryobi RY31SCW20VNM

  • Página 1 16 in. Surface Cleaner Attachment RY31SCW20VNM WARNING: To reduce the risk of injury, user must read and under- INLET PLUG stand the operator’s manual for their pressure washer QUICK CONNECT before using this accessory. To reduce the risk of injury...
  • Página 2: Nozzle Maintenance

    NOZZLE MAINTENANCE NOZZLE See Figure 3. When shipped, two nozzles are pre-assembled to the surface SPRAY cleaner. These nozzles are appropriate for use with pressure washers operating at 2700 to 3700 psi with a maximum flow rate of 2.5 gpm. Excessive pump pressure (a pulsing sensation felt while squeezing the trigger and/or a higher vibration in the surface cleaner) may be the result of a clogged or dirty nozzle.
  • Página 3 Accessoire de 406,4 mm (16 po) pour nettoyeur de surface RY31SCW20VNM AVERTISSEMENT : Pour réduire les risques de blessure, l’utilisateur doit lire et comprendre le manuel d’utilisation de sa laveuse CONNECTEUR COUPLEUR à pression avant de l’utiliser. Pour réduire les risques RAPIDE de blessures ou de dommages matériels, diriger le jet...
  • Página 4: Entretien De La Buse

    ENTRETIEN DE LA BUSE BUSE Voir la figure 3. Au moment de l’expédition, deux buses ont été assemblées BARRE DE préalablement sur le nettoyeur de surface. Ces buses PULVÉRISATION conviennent à des laveuses à pression qui fonctionnent à une pression de 2 700 à 3 700 psi et qui délivrent un débit maximal de 9,4 l (2,5 gal) par minute.
  • Página 5: Especificaciones Del Producto

    Accesorio para limpiador de superficie de 406,4 mm (16 pulg.) RY31SCW20VNM ADVERTENCIA: Para reducir el riesgo de lesiones, el usuario debe leer CLAVIJA DE ENTRADA y comprender el manual del operador de la lavadora de DE LA UNIDAD COLLARIN ACCÍONADO presión antes de usar este accesorio.
  • Página 6: Mantenimiento De Las Boquilas

    MANTENIMIENTO DE LAS BOQUILAS BOQUILLA Vea la figura 3. Antes del envío, dos boquillas están prearmadas en el TUBO limpiador de superficie. Estas boquillas son útiles para usarse ROCIADOR con lavadoras a presión de entre 2700 y 3700 psi con una velocidad de flujo máxima de 9,4 lpm (2,5 gpm). Si la bomba tiene una presión excesiva (una sensación de pulsación que se siente al oprimir el gatillo y/o una vibración más alta en el limpiador de superficies) es posible que la...
