Quick Start

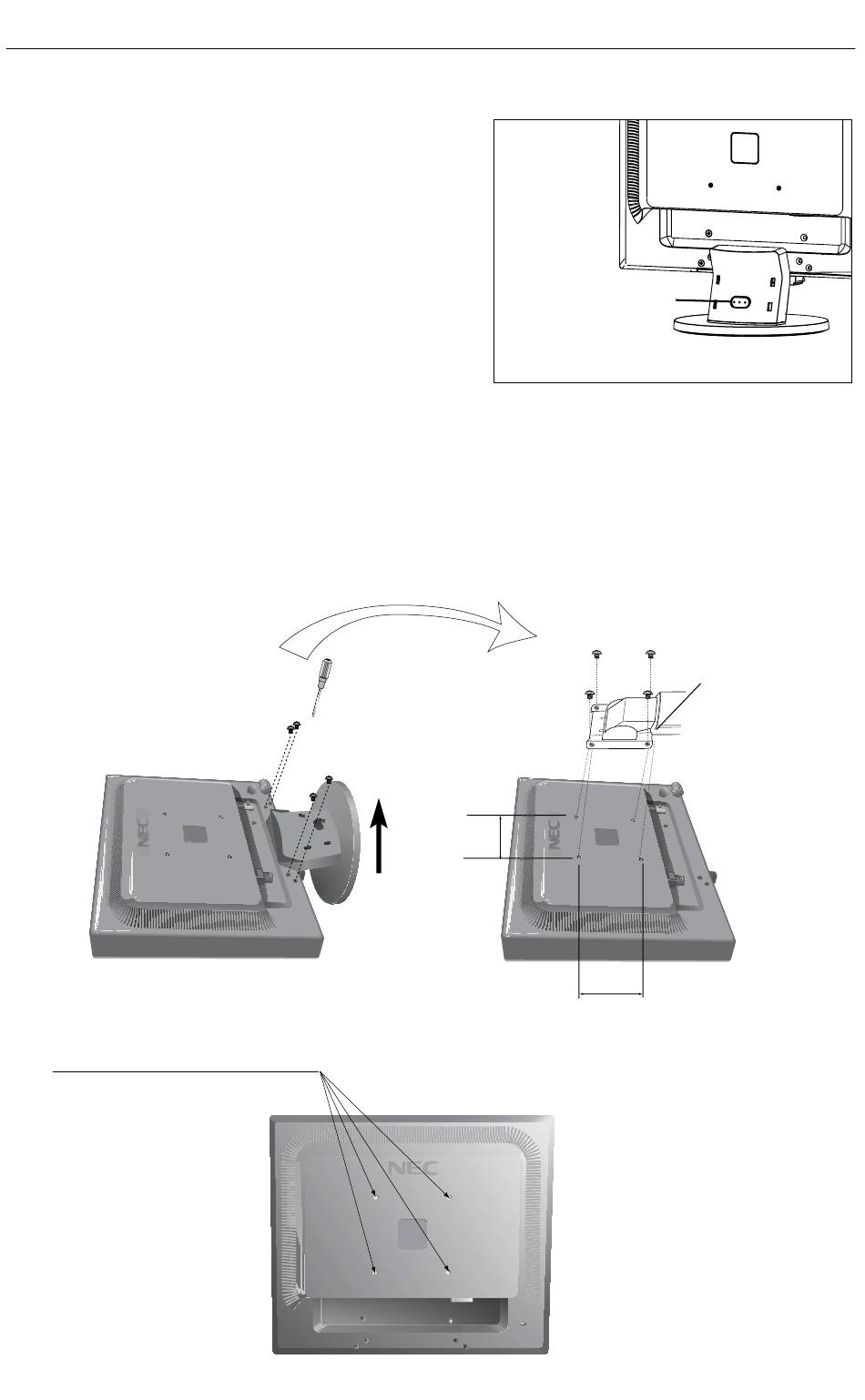

Removing the Base
Note: Always remove the Base when
shipping the LCD.
. Place monitor face down on a
non-abrasive surface.
2. Using your thumb, press the quick
release button to unlock the stand.
3. Pull the unlocked base off the stand.
Connecting a Flexible Arm
This LCD monitor is designed for use with a flexible arm. Please use the attached
screws (4pcs) as shown in the picture when installing.
To meet the safety requirements, the monitor must be mounted to an arm which
guaranties the necessary stability under consideration of the weight of the monitor.
The LCD monitor should only be used with an approved arm (e.g. GS mark).
Specifications
4-SCREWS (M4)
(MAX depth: 7.0 mm)
If using other screws,
check depth of holes.
- continued
Replace screws
Quick Release Button
00 mm
00 mm
6
Base
Thickness of Bracket
(Arm) 2.0~3.2 mm
Tighten all
screws.
Weight of LCD assembly:
4.2 kg (MAX)
