Sauder 411614 Manual Del Usuario
  1. Manuales
  2. Marcas
  3. Sauder Manuales
  4. Muebles de Interior
  5. 411614
  6. Manual del usuario
Sauder 411614 Manual Del Usuario

Sauder 411614 Manual Del Usuario

Ocultar thumbs Ver también para 411614:

Publicidad

Enlaces rápidos

Descargar este manual
sauder.com

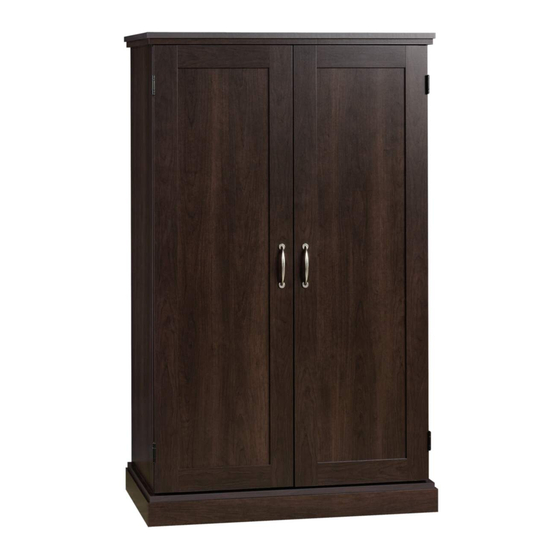

Computer Armoire
Model 411614
Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
Hidden printing,
browsing, clicking,
lounging.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-18
Français pg 19-21
Español pg 22-24
Lot # 390142
04/27/16
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987

Publicidad

loading

Manuales relacionados para Sauder 411614

Resumen de contenidos para Sauder 411614

  • Página 1 Model 411614 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. Need help? Visit Sauder.com to view video assembly tips or chat with a live rep. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Prefer the phone? Call 1-800-523-3987. English pg 1-18 Français pg 19-21...
  • Página 2 Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps 6-18 Hammer Not actual size Français 19-21 Español 22-24 Skip the power trip. Safety 25-26 This time. Warranty Page 2 411614 www.sauder.com/services...

  • Página 3: Part Identifi Cation

    LOWER SHELF (1) KEYBOARD SHELF (1) LARGE ADJUSTABLE SHELF (1) SMALL ADJUSTABLE SHELF (2) BOTTOM (1) BACK (1) DOOR (2) FRONT MOLDING (1) RIGHT MOLDING (1) LEFT MOLDING (1) FRONT SKIRT (1) SIDE SKIRT (2) BRACE (1) www.sauder.com/services 411614 Page 3...
  • Página 4 METAL BRACKET - 12 FASTENER - 10 CONNECTOR - 2 MAGNETIC CATCH- 2 HINGE - 4 STRIKE PLATE - 2 NAIL - 45 CORD CLIP - 1 PULL - 2 METAL PIN - 12 RUBBER SLEEVE - 12 Page 4 411614 www.sauder.com/services...
  • Página 5 BLACK 1-1/8" PAN HEAD SCREW - 2 BLACK 1/2" FLAT HEAD SCREW - 2 12S LARGE BROWN 1" FLAT HEAD SCREW - 7 15S SILVER 5/8" MACHINE SCREW - 4 18S SMALL BROWN 1" FLAT HEAD SCREW - 4 www.sauder.com/services 411614 Page 5...
  • Página 6 fl oor. Scan this QR code or go to this address: http://qr.sauder.com/?ID=1754 To begin assembly, push a SAUDER TWIST-LOCK® å to watch a video on how to assemble your unit. FASTENER (7F) into the large holes in the LARGE UPRIGHT (C), SMALL UPRIGHT (D), SHELF (F), and LOWER SHELF (G).
  • Página 7 Step 2 Tap two MOLDING CONNECTORS (19F) into the notches å in the MOLDINGS (N, O, and P). Use your hammer to tap the MOLDING CONNECTORS (19F) into the notches in the MOLDINGS. Flat end Flat end www.sauder.com/services 411614 Page 7...
  • Página 8 LEFT (35AX) to the ENDS (A and B). Use four GOLD Remember: 5/16" FLAT HEAD SCREWS (3S). Righty tighty. Lefty loosey. GOLD 5/16" FLAT HEAD SCREW (4 used in this step) Roller end Finished edge Roller end Finished edge Page 8 411614 www.sauder.com/services...
  • Página 9 å BACK fastened. The unit may collapse. two BLACK 1-7/8" FLAT HEAD SCREWS (2S). ® How to use the SAUDER TWIST-LOCK FASTENER 1. Insert the dowel end of the FASTENER into the hole of the adjoining part. NOTE: The dowel end of the FASTENER must remain fully BLACK 1-7/8"...
  • Página 10 SHELF (G). Tighten two TWIST-LOCK® FASTENERS. Fasten the LARGE UPRIGHT (C) to the SHELF (F). Use å two BLACK 1-7/8" FLAT HEAD SCREWS (2S). Finished edge Finished edge BLACK 1-7/8" FLAT HEAD SCREW (2 used in this step) Page 10 411614 www.sauder.com/services...
  • Página 11 å two BLACK 1-1/8" PAN HEAD SCREWS (9S). Long fi nished edge LARGE BROWN 1" FLAT HEAD SCREW (7 used for the TOP) BLACK 1-7/8" FLAT HEAD SCREW (2 used for the RIGHT END) Finished edge www.sauder.com/services 411614 Page 11...
  • Página 12 SMALL UPRIGHT (D). Use six BLACK 1-7/8" FLAT Hey! It's starting to look HEAD SCREWS (2S). like something! Finished edge fi n i s h r f a BLACK 1-7/8" FLAT HEAD SCREW (6 used in this step) Page 12 411614 www.sauder.com/services...
  • Página 13 Fasten the BRACE (S) to the SIDE SKIRTS (R). Use two BLACK å 9/16" LARGE HEAD SCREWS (1S). Fasten the SIDE SKIRTS (R) to the FRONT SKIRT (Q). å Use two BLACK 9/16" LARGE HEAD SCREWS (1S). BLACK 9/16" LARGE HEAD SCREW (24 used in this step) www.sauder.com/services 411614 Page 13...
  • Página 14 (45 used in this step) through the BACK. Carefully cut out the holes needed. These holes must line up over the SHELF (F). These holes must line up over the LOWER SHELF (G) and SMALL UPRIGHT (D). Page 14 411614 www.sauder.com/services...
  • Página 15 Turn the CORD CLIP (4P) into the KEYBOARD å SHELF (H). The CORD CLIP is used to hold your keyboard cord against the KEYBOARD SHELF. SMALL BROWN 1" FLAT HEAD SCREW (4 used for the DRAWER SLIDES) Roller end Roller end Finished edge www.sauder.com/services 411614 Page 15...
  • Página 16 Fasten the STRIKE PLATES (6I) to the DOORS (M). Use å two BLACK 1/2" FLAT HEAD SCREWS (11S). BLACK 9/16" LARGE HEAD SCREW (8 used for the HINGES) BLACK 1/2" FLAT HEAD SCREW (2 used for the STRIKE PLATES) Page 16 411614 www.sauder.com/services...
  • Página 17 NOTE: To make adjustments to the DOORS, loosen the SCREWS in å the HINGES, make needed adjustments, and tighten the SCREWS. BLACK 9/16" LARGE HEAD SCREW (8 used for the HINGES) SILVER 5/8" MACHINE SCREW (4 used for the PULLS) www.sauder.com/services 411614 Page 17...
  • Página 18 This completes assembly. Clean with your favorite furniture polish or a damp cloth. Wipe dry. å And to celebrate, why not share your success story? 25 lbs. 25 lbs. 5 lbs. each 70 lbs. (12 used) 25 lbs. 40 lbs. 50 lbs. total Page 18 411614 www.sauder.com/services...

  • Página 19: Liste De Pièces

    Modèle 411614 Armoire d'ordinateur Utilisez les instructions d’ a ssemblage en français avec les NOUS SOMMES LA POUR VOUS AIDER! schémas étape par étape du manuel d’instruction en anglais. Nous faisons de notre mieux pour nous assurer que votre meuble Chaque étape en français correspond à...
  • Página 20 Pour commencer l'assemblage, enfoncer une FIXATION MOULURE DROITE (O). Serrer deux FIXATIONS TWIST-LOCK® TWIST-LOCK® SAUDER (7F) dans les gros trous du GRAND dans la TABLETTE. Utiliser deux VIS TÊTE PLATE 48 mm MONTANT (C), le PETIT MONTANT (D), la TABLETTE (F) et la NOIRES (2S) à...
  • Página 21 Fixer les autres CHARNIÈRES (56H) aux PORTES (M). Utiliser huit pour meubles ou d’un chiff on humide. Essuyer. VIS TÊTE LARGE 14 mm NOIRES (1S). Fixer les PLAQUES DE BUTÉE (6I) aux PORTES (M). Utiliser deux VIS TÊTE PLATE 13 mm NOIRES (11S). www.sauder.com/services 411614 Page 21...

  • Página 22: Armario De Computadora

    Modelo 411614 Armario de computadora Use estas instrucciones de ensamblaje en español junto con las ESTAMOS AQUI PARA AYUDAR! fi guras paso-a-paso provistas en el folleto inglés. Cada paso Tratamos de asegurar que su mueble llega en condición excelente. en español corresponde al mismo paso en inglés. Se destacan Nuestros representantes de Servicio al Cliente son amables y las fi...
  • Página 23 Para comenzar el ensamblaje, empuje un SUJETADOR Fije el EXTREMO DERECHO (A) al ESTANTE (F) y a la MOLDURA TWIST-LOCK® SAUDER (7F) dentro de los agujeros grandes DERECHA (O). Apriete dos SUJETADORES TWIST-LOCK® del del PARAL GRANDE (C), del PARAL PEQUEÑO (D), del ESTANTE.
  • Página 24 TORNILLOS NEGROS DE CABEZA GRANDE de 14 mm (1S). muebles preferido o un paño húmedo. Seque con un paño. Fije las PLACAS DE CONTACTO (6I) a las PUERTAS (M). Utilice dos TORNILLOS NEGROS DE CABEZA PERDIDA de 13 mm (11S). Page 24 411614 www.sauder.com/services...
  • Página 25 à Les téléviseurs peuvent être particulièrement un téléviseur. cet eff et. lourds. De plus, le poids et l’emplacement du tube image ont tendance à rendre les téléviseurs instables et enclins à tomber vers l’ a vant. www.sauder.com/services 411614 Page 25...
  • Página 26 Además, el peso y la ubicación del tubo de imagen tienden a causar la inestabilidad de televisores y propensa a volcarse hacia adelante. Page 26 411614 www.sauder.com/services...

  • Página 27: Garantie Limitée De 5 Ans

    à compter de la date d'achat la première fois et qui sont signalés à Sauder dans les limites de couverture de la contre tout défaut de matériaux ou de fabrication des composantes de mobilier Sauder.
  • Página 28 Dear Valued Customer: So, how did it go? Thanks so much for choosing Sauder® furniture. I hope the Set a world record for speed? purchase and assembly process was a positive experience Feeling good about yourself? and you feel good about the furniture you just built. If you Nice.
