PREFACE

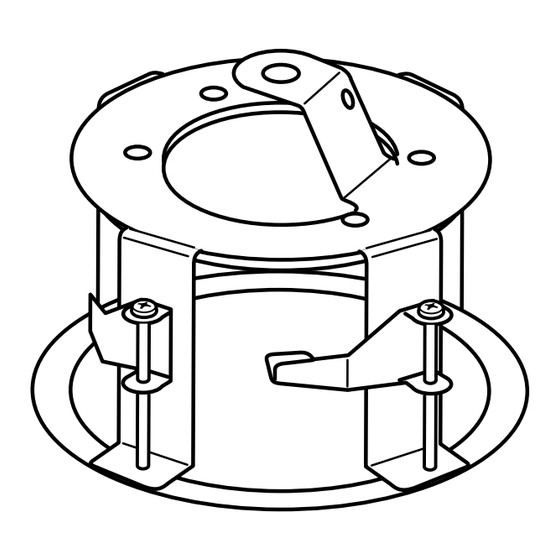

Ceiling mounting bracket:
This bracket can be used to install the camera in suspended ceilings that are not strong enough
to hold a screw. It is inset to reduce the part of the camera that is visible.
PRECAUTIONS
• Before installing the camera, make sure that the
location where the camera is going to be installed
is strong enough to support the entire weight of
the camera (approximately 2.9 kg {6.38 lbs}).
• Mount this bracket in a suspended ceiling having
a minimum of 210 mm {8-9/32"} clearance.
• The ceiling board thickness to mount this bracket
can be a maximum of 40 mm {1-37/64"} in thickness.
• Be sure to use the Fall Prevention Wire (provided).
• Be sure to lock the camera with the lock plate,
and make sure that it cannot come off.
• Do not use this bracket except with suitable cam-
eras.
• Follow all applicable local and national electrical,
fire and safety codes when installing the camera
with this ceiling mount bracket.
INSTALLATION
Be sure to read the "Precautions" before installing the camera.
Suspended ceiling
The model numbers listed in these Instructions have no suffixes attached to them.
Before attempting to connect or operate this product, please read these instructions completely.
The model number is abbreviated in some descriptions in this manual.
Inside the
ceiling
Ceiling Mount Bracket
WV-Q116E
Model No.
Minimum inside ceiling
clearance 210 mm {8-9/32"}
Suspended
ceiling
Fall Prevention Clip
Fall Prevention Wire (provided)
Camera Mounting Base
Camera
*Refer to the manual for the camera too.
Instructions
Maximum 40 mm
{1-37/64"}
