PS895/PS896 Series
Floor Box Covers
I N S T A L L A T I O N I N S T R U C T I O N S
Installation Instruction P/N: 340793Rev. B – November 2006
Products Covered: PS895, PS895T, PS895SP, PS895TSP, PS895GFI, PS895TGFI, PS896CK12, PS896TCK12, PS895TAL, PS895TCAL,
PS895GFICAL, PS895TGFIAL, PS895SPCAL, 895TSPAL, PS896CKAL12, and PS896TCKAL12 Covers
PS862 SERIES FLOOR BOX APPLICATIONS:
Cover Attachment:
1 Remove any plaster ears before wiring and attaching
STEP
the receptacle.
Catalog No.

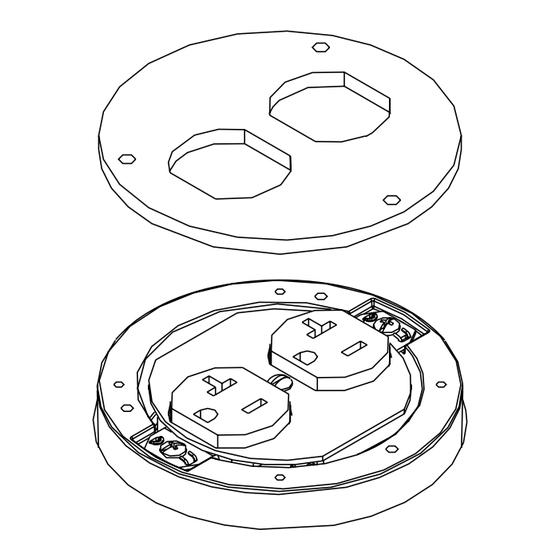

PS895T (Shown)
3 Place Gasket over the gasket support plate.
STEP
© Copyright 2006 Pass & Seymour / Legrand All Rights Reserved
Pass & Seymour
grounded in compliance with requirements of the current National
Electrical Code or codes administered by local authorities.
All electrical products may present a possible shock or fire
hazard if improperly installed or used. Pass & Seymour electrical
products may bear the mark as UL Listed and/or Classified and should
be installed in conformance with current local and/or the National
Electrical Code.
IMPORTANT: Please read all instructions
2 Place the gasket support plate over the receptacle and
STEP
attach with #6 round head screw.
4 Attach cover with (3) #8 flat head screws.
STEP
Pass & Seymour / Legrand
P.O. Box 4822
Syracuse, NY 13221-4822
1-800-223-4185
P/N340793Rev. B – November 2006 – For latest specs visit www.passandseymour.com
