Little Tikes 4370 Manual De Instrucciones

Adult assembly required / Le montage devra être effectué par un adulte /
Debe ser armado por un adulto
4370
486081
624370093 - 9/16
www.littletikes.com
www.littletikes.co.uk
www.littletikes.nl
www.littletikes.pl
ENGLISH

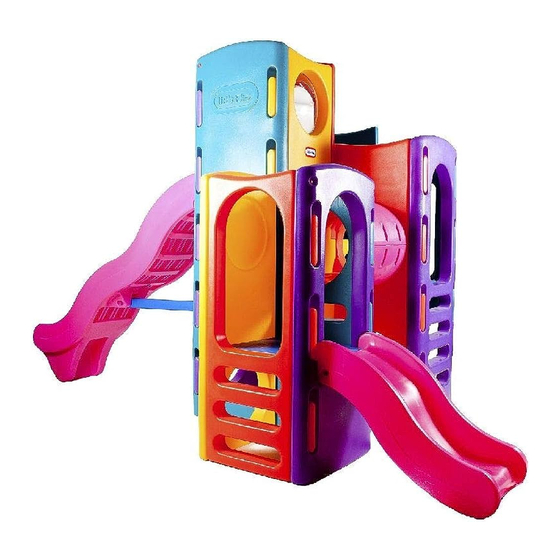

LIttLE tIkES® PLayGrouNd
Ages 3 - 10 years
Please save sales receipt for proof of purchase.
WARNING:
ADULT ASSEMBLY REQUIRED.
2 people are required for assembly.
• Keep these instructions for future reference.
F
• Prior to assembly, this package contains small parts: hardware which is a
choking hazard and may contain sharp edges and sharp points. Keep away
from children until assembled.
• Falls onto hard surfaces can result in head or other serious injuries. Never place on
concrete, asphalt, wood, packed earth, grass or other hard surfaces. Carpet over hard
floors may not prevent injury. Always use protective surfacing on the ground under
and surrounding the playground equipment according to the enclosed "Consumer
Information Sheet for Playground Surfacing Materials." Maximum fall height
protection up to 6 feet (2 m) required.
• Adult supervision required. Do not leave children unattended.
• This product is intended for use by children ages 3 - 10 years.
• Maximum weight per child: 100 lbs. (45 kg). Limit 8 children.
• Shoes must be worn at all times.
• This product is intended for outdoor domestic family use only.
• Observing the following statements and warnings reduces the likelihood of
serious or fatal injury.
• Place this product on level ground and at least 6' (2 m) away from any object.
Objects to be avoided include, but are not limited to, fences, buildings,
overhead branches, laundry lines or electrical wires.
• To prevent serious injury, children must not use the equipment until properly
installed.
• It is recommended that the orientation of the assembled product be such that
direct sunlight is minimized on surfaces intended for standing or sitting.
• Instruct children on proper use of this product, only after properly placed, and
not in a manner other than intended.
• Do not allow children to climb on product when product is wet.
• Instruct children not to attach items to the product that are not specifically
designed for use with the product such as, but not limited to, jump ropes,
clotheslines, pet leashes, cables and chains, as they may cause a strangulation
hazard.
• Instruct children to remove their bike or other sports helmet before playing on
this product.
• Dress children appropriately: do not allow children to wear loose-fitting
clothing including ponchos, scarves and garments with drawstrings. Well-
fitting shoes must be worn at all times.
• Protect your eyes. Always wear safety glasses when using a hammer.
WALL ASSEMBLY:
The order of assembly corresponds with the letters molded into each wall. For example,
match up the two walls with A molded into the bottom corners. Lift up the wall with hooks
and insert hooks into the openings in opposite wall. Push down on the wall with the hooks
H - 2
to "lock" wall in place.
NotE: Place a block of wood on walls with D molded in (see Illus. 4) and pound with a
hammer. A rubber mallet may be used in place of the hammer and block of wood.
TUNNEL ASSEMBLY (Illus. 11 - 17)
Place tunnel bottom (B - tunnel piece without pegs) on lower "shelf" on the wall with
the bubble window. Insert two 1 / " (4.1 cm) bolts (C) with bolt covers (D) in holes inside
5
8
tunnel bottom. Tighten with a screwdriver.
M
C
J
A E
B A
D
G B
E
M
L K
K
J
I
H
F
E
L - 9
M - 4
K
G - 2
P - 4
N - 4
J - 8
1
A
4
I
F H G
D
L
A
B
6
D - 9
C - 9
F
2
B
B
A
5
C
C
D
C
C
D
D
7
E
G
G
E
F
3
8
