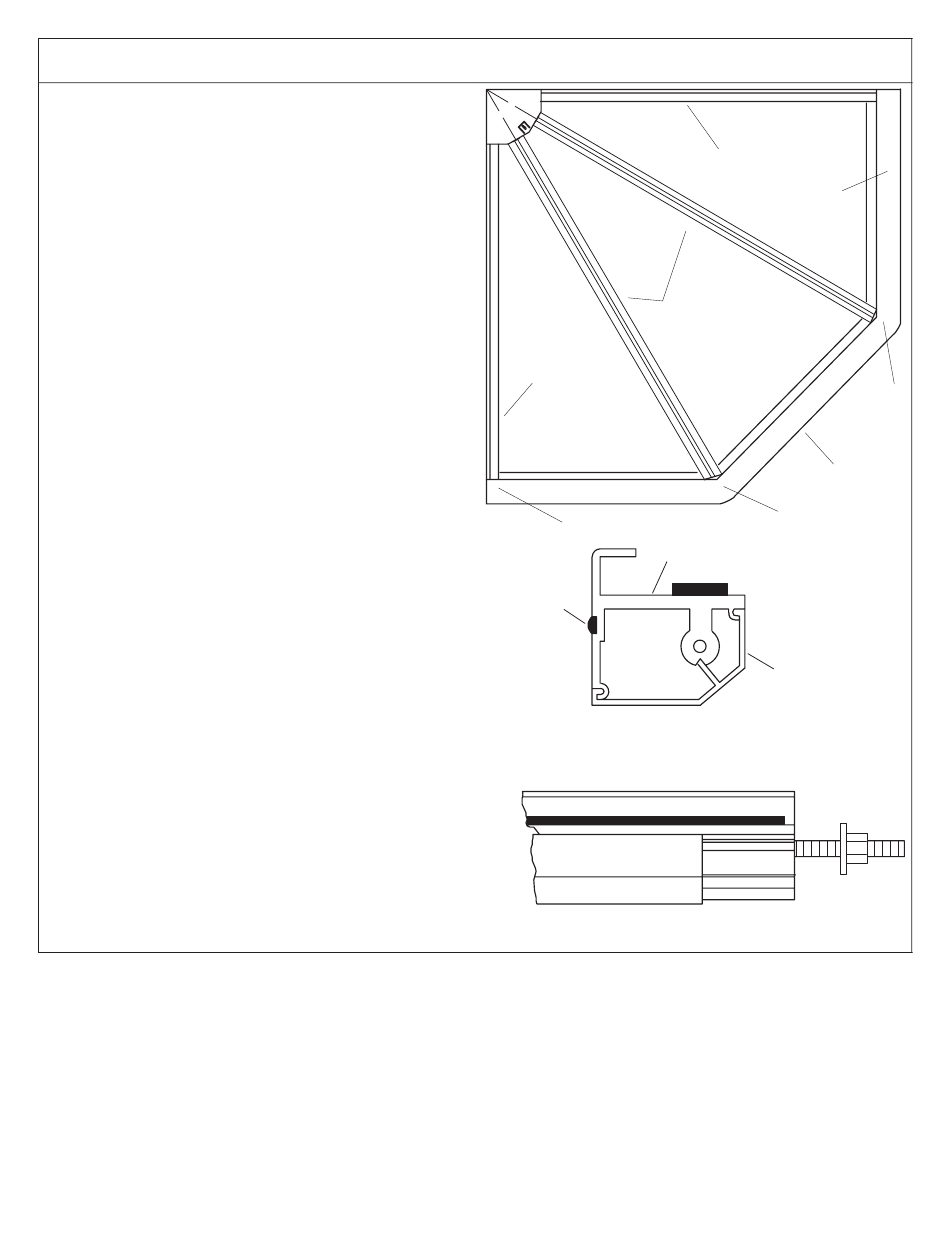

3. INSTALL SIDE RADIALS
Ensure wall anchors are installed in the holes for securing
the side radials.
Determine right and left side radial assemblies: Match
colored dot near one end of radial assembly with
corresponding colored dot on header.
Apply silicone RTV to groove in back side of radial.
Back off nylon nut and and washer in the end of the side
radials. This will allow decorative radial to slide back and
forth on side radials.
Kohler Co., Kohler, WI U.S.A.
Side
Radial
Red
Silicone
RTV
Radial End View
Radial Side View
5
Side
Radial
Orange
Center Radials
Header
Blue
Side Radial
Decorative Radial
112896-2-
Green
AB
