Removing the Headgear
Peel away the tabs and pull through the slots in the mask frame or clip.
Removing the Cushion
Pull cushion away from the frame.
Attaching the Cushion
1.
Align the cushion size (S/M, L, XL) mark on the bottom of the cushion to the bottom edge
of the frame.
2.
Press cushion onto frame until it clicks into place.
Attaching the Headgear
1.
With the crown strap upward hold the top straps together.
Note: The Philips Respironics logo is on the outside back of the headgear when correctly assembled.
2.
Thread the top straps through the top slot in the mask frame.
3.
Thread the bottom straps through the bottom slots in the mask frame or clips.
4.
Fold the ends back and press the tabs onto the straps.
Philips Respironics System One Resistance Control
This mask when combined with a Philips Respironics System One device, provides optimal
resistance compensation. This mask value is X1 and should be set by the provider.
Notes:
• Compare the mask to the device. See the device manual if the values do not match.
• System One is not compatible with masks that use a separate exhalation device.
Specifications
Warning: The technical specifications of the mask are provided for the healthcare
professional to determine if it is compatible with the CPAP or bi-level therapy device. If
used outside these specifications, or if used with incompatible devices, the mask may be
uncomfortable, the seal of the mask may not be effective, optimum therapy may not be
achieved, and leak, or variation in the rate of leak, may affect device function.

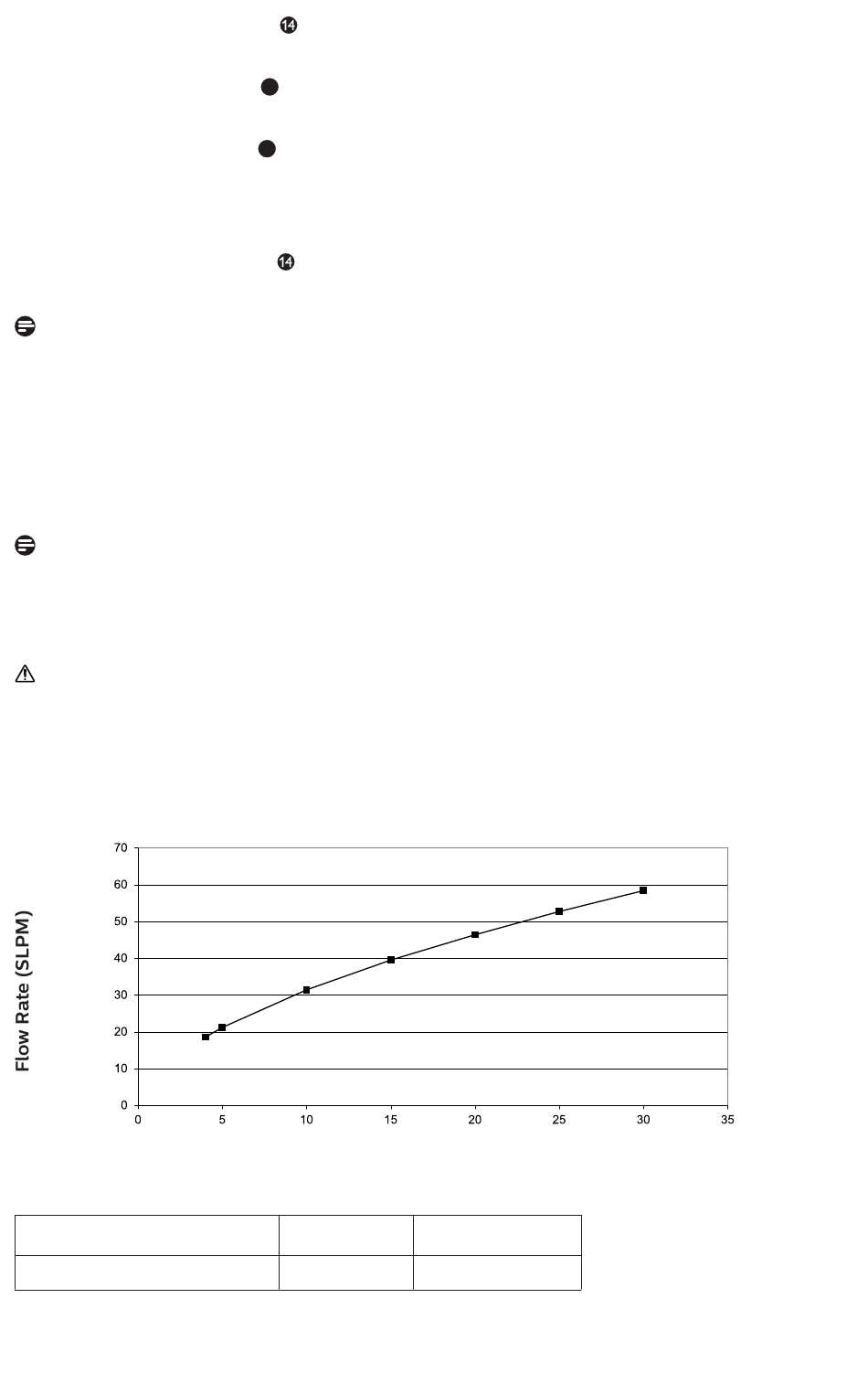

Pressure Flow Curve
Resistance
Drop in Pressure (cm H
All cushion sizes
15
15
Pressure cm H
O) at 50 SLPM
2
0.4
O
2
at 100 SLPM
1.4
